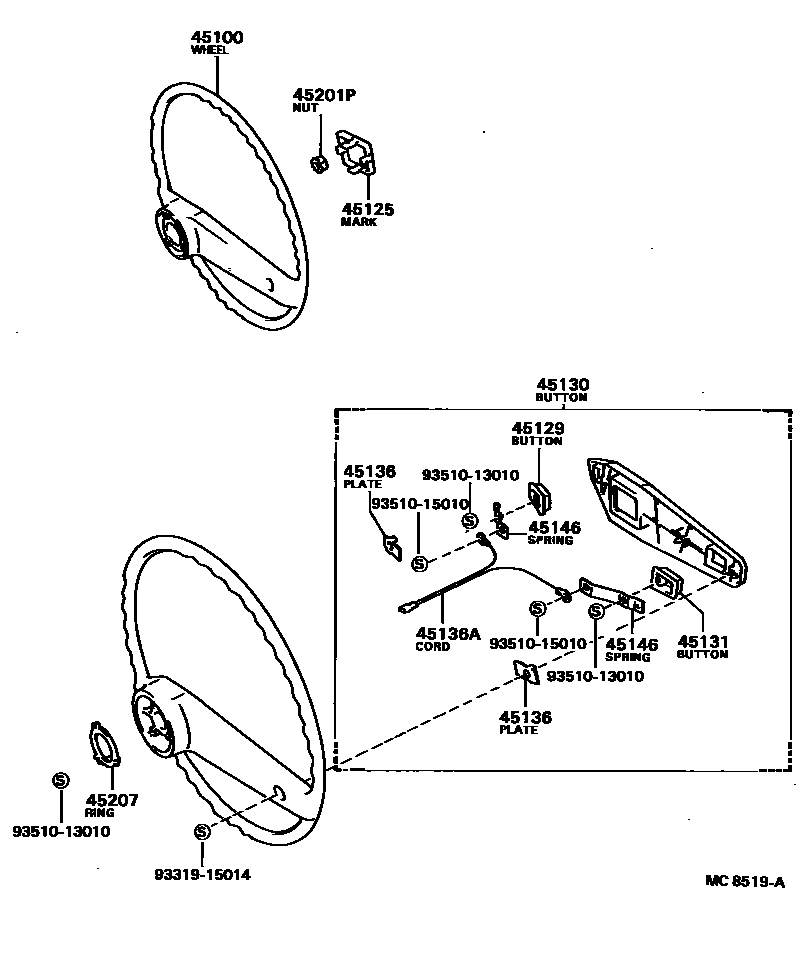

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-25080-02iBB2#,30,FB30,HB3#,RB20198510-198808

MAROON,MAROON

sub45100-25080

main45100-25080-26iBB2#,32,FB30,HB3#,HDB30,HZB30,RB20198808-199301

SABLE,SABLE

sub45100-25080

main45100-36080iBB20,30,RB20198205-198510

sub45100-25080

45125MARK, STEERING WHEEL PAD

main45125-36030iBB2#,30,FB30,HB3#,RB20198205-198808

sub45125-25020

main45125-36031iBB2#,32,FB30,HB3#,RB20198808-199301

sub45125-25020

45129BUTTON, HORN, NO.2

main45131-36050iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

45130BUTTON ASSY, HORN

main45130-25060-02iBB2#,30,FB30,HB3#,RB20198510-198808

DEEP MAROON,DEEP MAROON

sub45130-25060

main45130-25060-16iBB2#,32,FB30,HB3#,HDB30,HZB30,RB20198808-199301

SABLE,SABLE

sub45130-25060

main45130-36060iBB20,30,RB20198205-198510

sub45130-25060

45131BUTTON, HORN, NO.1

main45129-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

45136PLATE, HORN BUTTON CONTACT

main45136-26020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

45136ACORD(FOR HORN CONTACT RING)

main90945-02013iBB20,30,RB20198205-198510

main90945-02040iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198510-199301

45146SPRING, HORN BUTTON CONTACT

main45146-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

45201PNUT, STEERING WHEEL SET

main90179-12086iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

45207RING, HORN CONTACT

main45176-20030iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

9331915014

main93319-15014

9351013010

main93510-13010

9351015010

main93510-15010

13 parts on this diagram · 1 diagram in section
