VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

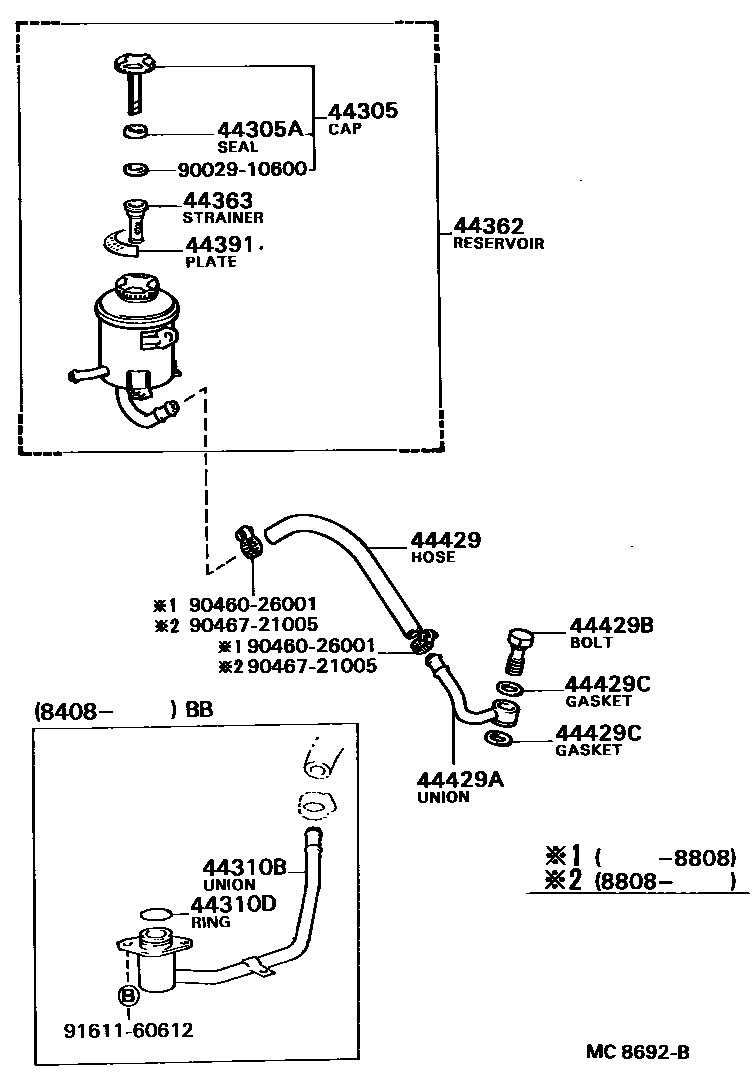

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44037-36041iBB20,30,RB20..ARL,GEN198205-199301

sub44037-36080

main44037-36070iHB3#198610-199001

main44037-36080iBB22,23,32,RB20198408-199301

main44305-36070iHDB30,HZB30199001-199301

sub44037-36070

44305ASEAL, DUST(FOR RESERVOIR CAP)

main90029-20701iBB20,21,23,3#,HB3#,RB20..ARL,GEN198205-199301

44310PUMP ASSY, VANE

main44310-36150iBB2#,32198808-199301

main44310-36230iHDB30,HZB30199001-199301

main44320-36021iBB20..ARL,GEN198205-198305

sub44320-36022

main44320-36022iBB20,30..ARL,GEN198305-198408

main44320-36030iRB20198205-198305

sub44320-36031

main44320-36031iRB20198305-198408

main44320-36032iRB20198408-199301

main44320-36080iBB2#,30..ARL,GEN,ME198408-198808

main44320-36120iFB30,HB3#198610-199301

44310BUNION(FOR VANE PUMP)

main90405-16017iBB20,30..ARL,GEN198408-198508

main90405-16021iBB2#,32198808-199301

main90405-16022iBB22198510-198808

main90405-16025iBB20,21,30..ARL,GEN,ME198508-198808

main90405-16030iHDB30,HZB30199001-199301

44310DRING, O(FOR VANE PUMP UNION)

main96711-19019iBB2#,3#,HDB30,HZB30..ARL,EUR,GEN,ME198408-199301

44362RESERVOIR, OIL(FOR VANE PUMP)

main44360-36040iBB20198205-198205

sub44360-36041

main44360-36041iBB20,21,30..ARL,GEN,ME198205-198808

main44360-36060iRB20198205-198408

main44360-36100iBB21198808-199301

main44360-36130iRB20198408-199301

main44360-36160iHB30198610-199001

main44360-36170iHB31198610-199001

main44360-36180iBB22,23,32198510-199301

main44360-36190iFB30198610-199301

main44360-36280iHDB30,HZB30199001-199301

44363STRAINER, OIL(FOR VANE PUMP)

main44363-36040iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME198205-199301

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-36010iBB2#,30,FB30,HB3#,RB20..ARL,GEN,ME198205-198710

sub44391-36020

main44391-36020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198710-199301

44429HOSE, RESERVOIR TO OIL PUMP

main44348-36030iBB20,30..ARL,GEN198205-198408

sub44348-36170

main44348-36031iBB20,21,30..ARL,GEN,ME198408-199301

main44348-36050iRB20198205-198408

main44348-36120iRB20198408-198808

sub44348-36180

main44348-36140iHB3#198610-199001

main44348-36150iBB22198510-199301

sub44348-36151

main44348-36160iFB30198610-199301

main44348-36180iRB20198808-199301

main44348-36190iBB21198808-199301

44429AUNION(FOR RESERVOIR TO OIL PUMP)

main90405-16007iRB20198205-198408

main90405-16009iBB20,30..ARL,GEN198205-198408

main90405-16014iRB20198408-199301

main90405-16020iHB3#198610-199001

main90405-16027iFB30198610-199301

44429BBOLT, UNION(FOR RESERVOIR TO OIL PUMP UNION)

main90401-22003iBB20,30,RB20..ARL,GEN198205-199301

44429CGASKET(FOR RESERVOIR TO OIL PUMP UNION)

main90430-22001iBB20,30,RB20..ARL,GEN198205-199301

9002910600

main90029-10600

9046026001

main90460-26001

9046721005

main90467-21005

9161160612

main91611-60612

16 parts on this diagram · 7 diagrams in section
