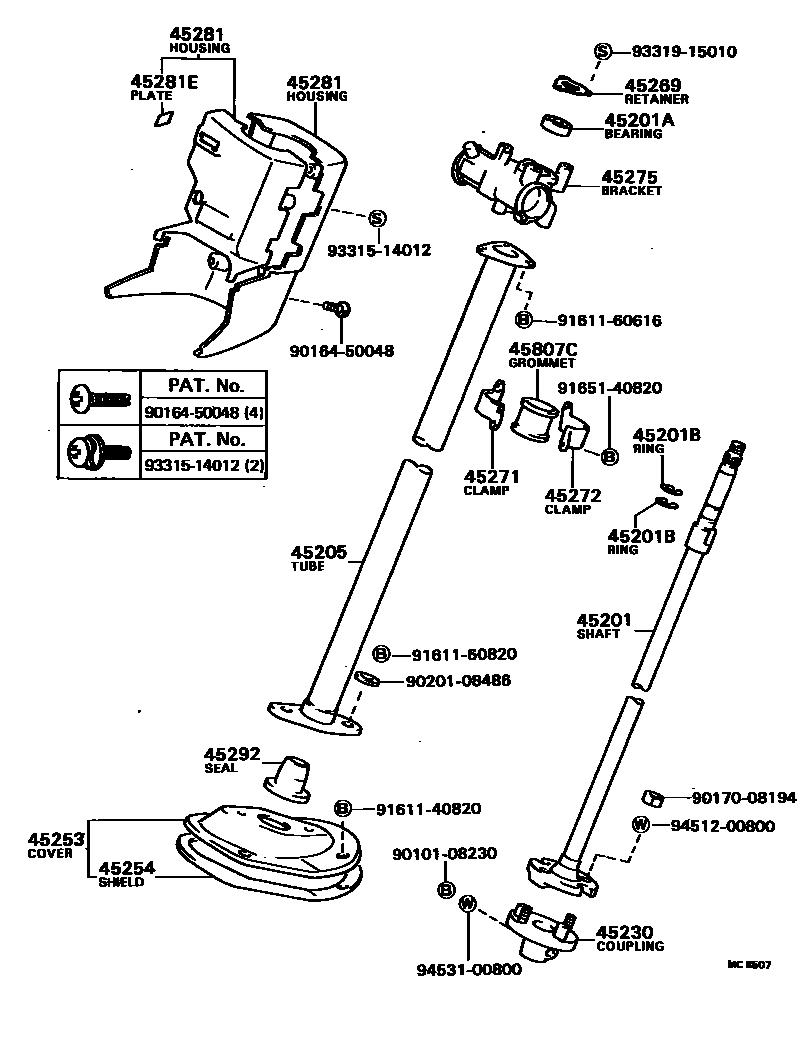

STEERING COLUMN & SHAFT

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-36120iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20¥10,500198205-199301

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20¥660198205-199301

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20¥120198205-199301

T=1.20,LWR

main90520-17269iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20¥120198205-199301

T=1.20,UPR

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-36140iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20¥5,800198205-199301

45230COUPLING ASSY, FLEXIBLE

main45230-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20¥4,350198205-199301

45253COVER, STEERING COLUMN HOLE

main45025-36080iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20¥3,580198205-199301

45254SHIELD, STEERING COLUMN HOLE

main45254-36060iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20¥710198205-199301

45269RETAINER, MAIN SHAFT BEARING

main45269-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20¥620198205-199301

45271CLAMP, STEERING COLUMN, UPPER

main55175-90B00iBB20,22,3#,HDB30,HZB30,RB20¥990198205-199301

45272CLAMP, STEERING COLUMN, LOWER

main55177-90B00iBB20,22,3#,HDB30,HZB30,RB20¥990198205-199301

45275BRACKET, STEERING COLUMN, UPPER

main45307-36100iBB20,RB20..LHD¥12,600198205-198209

sub45307-36101¥12,600

main45307-36101iBB20,21,3#,FB30,HB30,HDB30,HZB30,RB20..LHD¥12,600198209-199301

main45307-36140iBB20,RB20..RHD¥12,600198205-198208

sub45307-36141¥12,600

main45307-36141iBB2#,30,HB3#,HDB30,HZB30,RB20..RHD¥12,600198208-199301

45281HOUSING, STEERING COLUMN

main45286-36440iBB20,30..RHD..GEN¥3,170198205-198510

UPR,W/EXHAUST BRAKE

sub45286-36730¥3,180

main45286-36450iBB20,RB20..RHD¥3,170198205-198510

UPR

sub45286-36740¥3,180

main45286-36460iBB20,RB20..LHD¥3,170198205-198510

UPR

sub45286-36750¥3,180

main45286-36490iBB20,30..LHD..GEN¥3,170198302-198510

UPR,W/EXHAUST BRAKE

sub45286-36760¥3,180

main45286-36730-02iBB20,21,22,30..RHD..GEN198510-199301

DARK WINE,UPR,W/*EB,DARK WINE

main45286-36730-06iBB23,HB3#,HDB30,HZB30..RHD198808-199301

SABLE,UPR,W/*EB,SABLE

main45286-36740-02iBB2#,HB3#,RB20..RHD198510-198808

DARK WINE,UPR,DARK WINE

sub45286-36740¥3,180

main45286-36740-06iBB2#,HB3#,HZB30,RB20..RHD198808-199301

SABLE,UPR,SABLE

sub45286-36740¥3,180

main45286-36750-02iBB20,21,FB30,HB30,RB20..LHD198510-198808

DARK WINE,UPR,DARK WINE

sub45286-36750¥3,180

main45286-36750-06iHZB30..LHD..GEN198808-199301

SABLE,UPR,SABLE

sub45286-36750¥3,180

main45286-36760-02iBB20,21,30,HB30..LHD198510-198808

DARK WINE,UPR,W/*EB,DARK WINE

main45286-36760-06iBB21,32,HB30,HDB30..LHD198808-199301

SABLE,UPR,W/*EB,SABLE

main45287-36160iBB20,30..RHD..GEN¥3,320198205-198510

LWR,W/EXHAUST BRAKE

sub45287-36290¥3,310

main45287-36170iBB20,RB20..RHD¥3,320198205-198510

LWR

sub45287-36300¥3,310

main45287-36180iBB20,RB20..LHD¥3,320198205-198510

LWR

sub45287-36310¥3,310

main45287-36190iBB20,30..LHD..GEN¥3,320198302-198510

LWR,W/EXHAUST BRAKE

sub45287-36320¥3,310

main45287-36290-02iBB20,21,22,30..RHD..GEN198510-199301

MAROON,LWR,W/*EB,DARK WINE

sub45287-36290¥3,310

main45287-36290-06iBB23,HB3#,HDB30,HZB30..RHD198808-199301

SABLE,LWR,W/*EB,SABLE

sub45287-36290¥3,310

main45287-36300-02iBB2#,HB3#,RB20..RHD198510-198808

MAROON,LWR,DARK WINE

sub45287-36300¥3,310

main45287-36300-06iBB2#,HB3#,HZB30,RB20..RHD198808-199301

SABLE,LWR,SABLE

sub45287-36300¥3,310

main45287-36310-02iBB20,21,FB30,HB30,RB20..LHD198510-198808

DARK WINE,LWR,DARK WINE

sub45287-36320¥3,310

main45287-36310-06iHZB30..LHD..GEN198808-199301

SABLE,LWR,SABLE

sub45287-36320¥3,310

main45287-36320-02iBB20,21,30,HB30..LHD198510-198808

DARK WINE,LWR,W/*EB,DARK WINE

main45287-36320-06iBB21,32,HB30,HDB30,HZB30..LHD198808-199301

SABLE,LWR,W/*EB,SABLE

45281EPLATE, SAFETY CAUTION

main45283-22010iBB2#,30,HB3#,HDB30,HZB30,RB20..RHD¥150198205-199301

main45283-22020iBB20,21,3#,FB30,HB30,RB20..LHD¥650198205-199301

45292SEAL, MAIN SHAFT LOWER DUST

main45292-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20¥710198205-199301

45807CGROMMET(FOR STEERING COLUMN CLAMP)

main90480-45092iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20¥240198205-199301

9010108230

main90101-08230¥210

9016450048

main90164-50048¥110

9017008194

main90170-08194¥130

9020108486

main90201-08486¥180

9161140820

main91611-40820¥130

9161160616

main91611-60616¥110

9161160820

main91611-60820¥200

9165140820

main91651-40820¥90

9331514012

main93315-14012¥70

9331915010

main93319-15010¥70

9451200800

main94512-00800¥80

9453100800

main94531-00800¥160

27 parts on this diagram · 1 diagram in section
