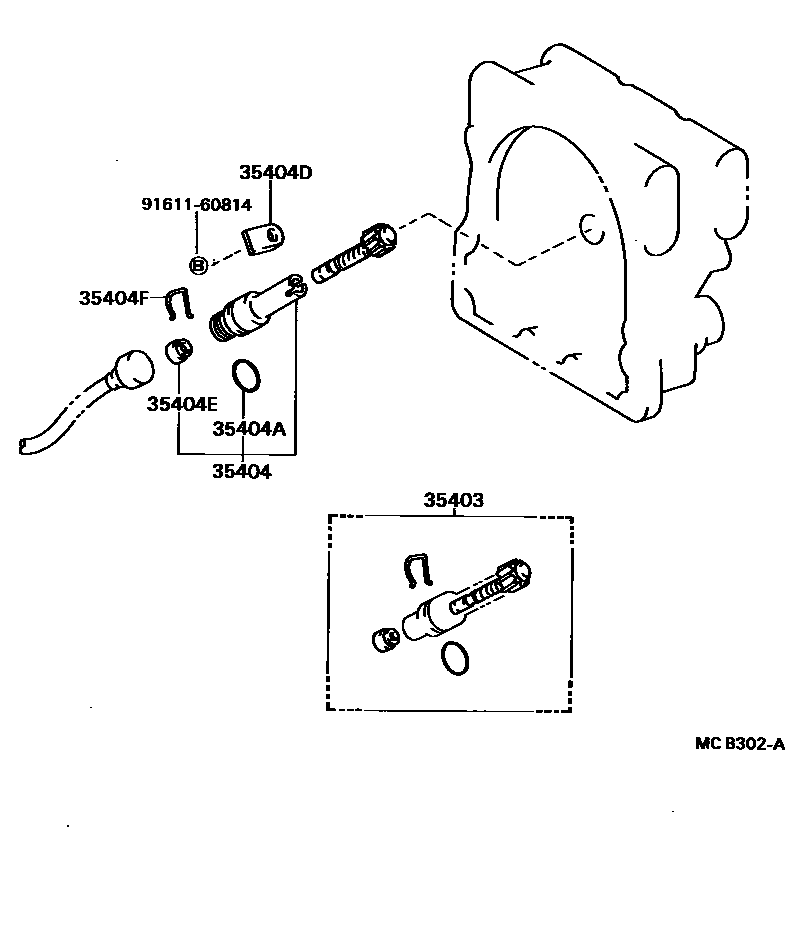

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-39156iBB32..4FC199001-199301

main33482-39295iHZB30..ME199001-199301

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-36010iBB32,HZB30..4FC199001-199301

sub33404-37010

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iBB32,HZB30..4FC199001-199301

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iBB32,HZB30..4FC199001-199301

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-10001iBB32,HZB30..4FC199001-199301

35404FCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iBB32,HZB30..4FC199001-199301

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
