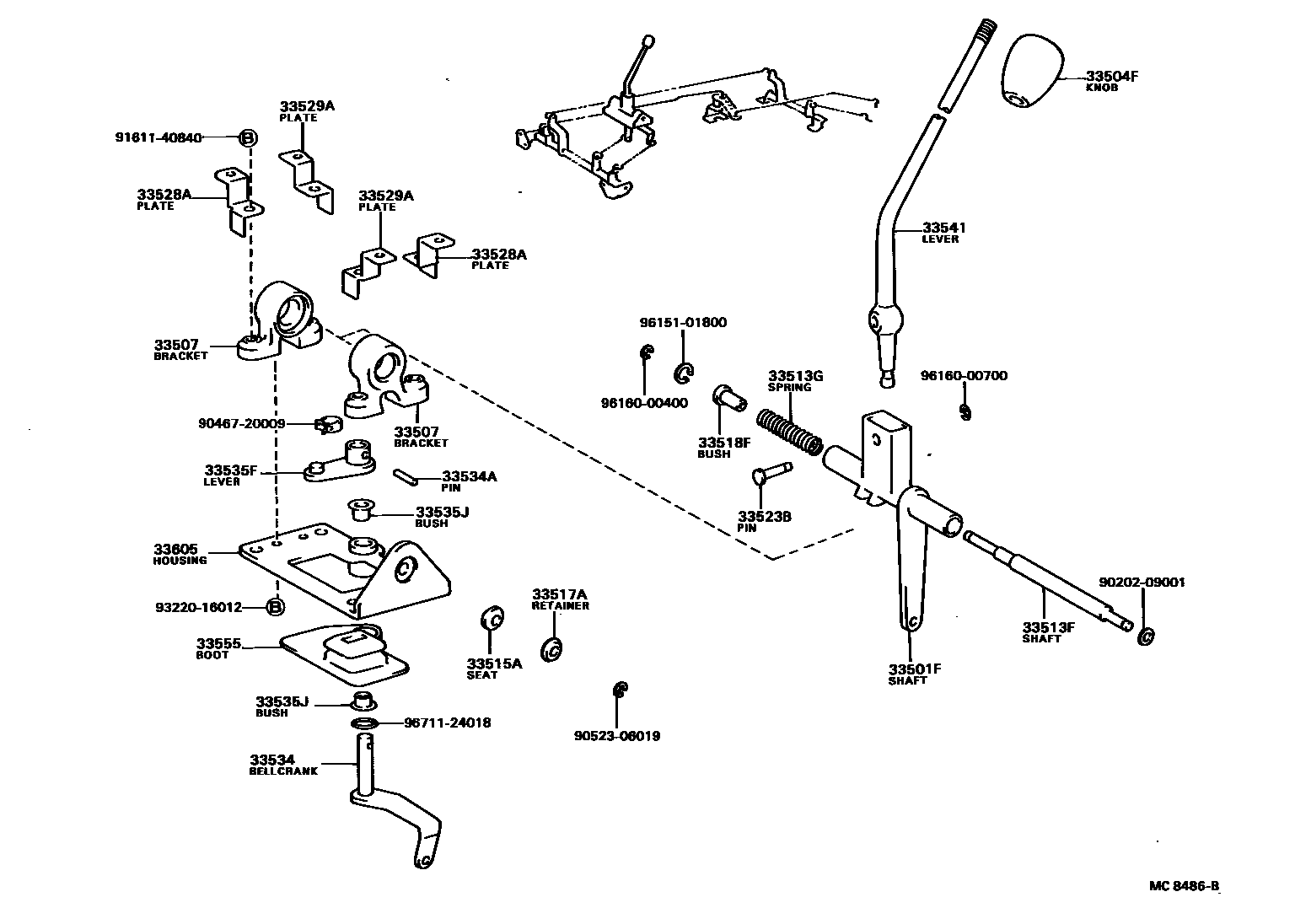

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33501FSHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)

main33501-36160iBB20,30,RB20¥8,100198205-198510

main33501-36161iBB20,21,22,3#,FB30,HB3#,HDB30,HZB30,RB20¥8,000198510-199301

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20052-01iBB20,RB20..EXS198205-198510

BLACK

sub33504-20052¥5,100

sub33504-14050¥3,000

main33504-36020iBB20,30,RB20..(DLX,STD)..5F¥2,680198205-198510

sub33504-14050¥3,000

main33504-36030iRB20..4F198205-198510

sub33504-14040¥3,000

main33504-36060-01iBB2#,30,FB30,HB3#,RB20198510-198808

BLACK

sub33504-36051¥2,710

main33504-36060-06iBB2#,32,FB30,HB3#,HDB30,HZB30,RB20198808-199301

SABLE,SABLE

sub33504-36051¥2,710

main33542-10020iBB32,HZB30..4FC¥2,630199001-199301

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-36020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥3,200198205-199301

RH

main33507-36030iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥3,200198205-199301

LH

33513FSHAFT, CONTROL SHAFT BRACKET

main33513-36040iBB20,30,RB20¥4,260198205-198510

main33513-36041iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥4,280198510-199301

33513GSPRING, COMPRESSION (FOR CONTROL SHAFT BRACKET SHAFT)

main90501-12036iBB20,30,RB20¥190198205-198510

main90501-12101iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥190198510-199301

33515ASEAT, CONTROL UPPER SHAFT (FOR FLOOR SHIFT)

main33515-30010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥320198205-199301

33517ARETAINER, CONTROL UPPER SHAFT SEAT

main33517-30010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥260198205-199301

33518FBUSH, CONTROL SHAFT

main90386-06011iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥250198205-199301

33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)

main90249-08013iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥240198205-199301

33528APLATE, SHIFT LEVER HOUSING, NO.1

main33528-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥990198205-199301

33529APLATE, SHIFT LEVER HOUSING, NO.2

main33529-36020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥460198205-199301

33534BELLCRANK, SELECTING

main33534-36030iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥1,280198205-199301

33534APIN (FOR SELECTING BELLCRANK)

main90250-06008iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥260198205-199301

33535FLEVER, CONTROL SELECT (FOR FLOOR SHIFT)

main33535-36070iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥2,060198205-199301

33535JBUSH (FOR CONTROL SELECT LEVER)

main90386-13192iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥110198205-199301

33541LEVER, SHIFT

main33541-36170iBB2#,30,HB3#,HDB30,HZB30,RB20..RHD¥6,600198205-199301

main33541-36180iBB20,21,3#,FB30,HB30,HDB30,HZB30,RB20..LHD¥6,600198205-199301

33555BOOT, SHIFT LEVER

main33555-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥820198205-199301

33605HOUSING, CONTROL LEVER

main33651-36030iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥4,130198205-199301

9020209001

main90202-09001¥200

9046720009

main90467-20009¥310

9052306019

main90523-06019¥220

9161140840

main91611-40840¥180

9322016012

main93220-16012¥180

9615101800

main96151-01800¥140

9616000400

main96160-00400¥120

9616000700

main96160-00700¥200

9671124018

main96711-24018¥160

27 parts on this diagram · 4 diagrams in section
