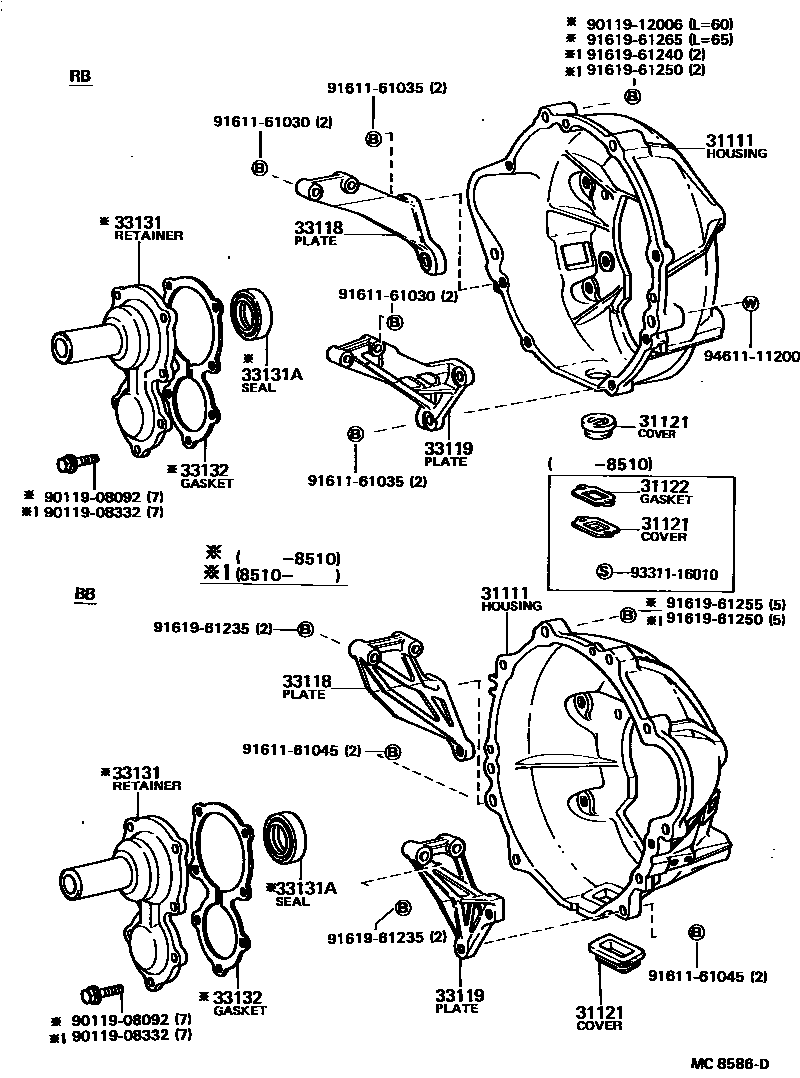

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1

31111HOUSING, CLUTCH

main31111-36050iBB20,30198205-198510

main31111-36090iRB20198205-198510

main31111-36190iRB20198510-199301

main31111-36220iBB2#,30198510-198808

sub31111-36221

main31111-36221iBB2#,32..5F198808-199301

sub31111-36222

main31111-36230iHB3#198610-199001

main31111-36240iFB30198610-199301

main31111-36290iHDB30,HZB30..5F199001-199301

31121COVER, CLUTCH HOUSING, NO.1

main31121-36040iBB2#,3#..5F198205-199301

sub31121-36110

main31121-36050iRB20198205-198510

main31121-36060iRB20198510-199301

31122GASKET, CLUTCH HOUSING COVER

main31122-36010iRB20198205-198510

33118PLATE, STIFFENER, RH(MTM)

main33118-22030iRB20198205-198510

main33118-35020iRB20198510-199301

main33118-36010iBB20,30198205-198408

sub33118-36020

main33118-36020iBB2#,30198408-198708

main33118-36021iBB2#,3#..5F198708-199301

main33118-60010iHB30198610-199001

main33118-60030iHDB30,HZB30..5F199001-199301

sub33118-60060

33119PLATE, STIFFENER, LH(MTM)

main33119-22021iRB20198205-198510

sub33119-22022

main33119-35020iRB20198510-199301

sub33119-35021

main33119-36010iBB20,30198205-198408

main33119-36020iBB2#,30198408-198808

main33119-36040iBB2#,32..5F198808-199301

sub33119-36041

main33119-60010iHB30198610-199001

main33119-60030iHDB30,HZB30..5F199001-199111

sub33119-60031

main33119-60031iHDB30,HZB30..5F199111-199301

sub33119-60070

33131RETAINER, BEARING, FRONT(MTM)

main33018-36050iBB2#,3#,FB30,HB3#,HDB30,HZB30..5F198510-199301

main33018-36060iRB20198510-199301

main33131-36023iBB20,30,RB20198205-198510

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-32012iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

main90311-32106iBB20,30,RB20198205-198510

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-36022iBB20,30,RB20198205-198510

9011908092

main90119-08092

9011908332

main90119-08332

9011912006

main90119-12006

9161161030

main91611-61030

9161161035

main91611-61035

9161161045

main91611-61045

9161961235

main91619-61235

9161961240

main91619-61240

9161961250

main91619-61250

9161961255

main91619-61255

9161961265

main91619-61265

9331116010

main93311-16010

9461111200

main94611-11200

21 parts on this diagram · 5 diagrams in section
