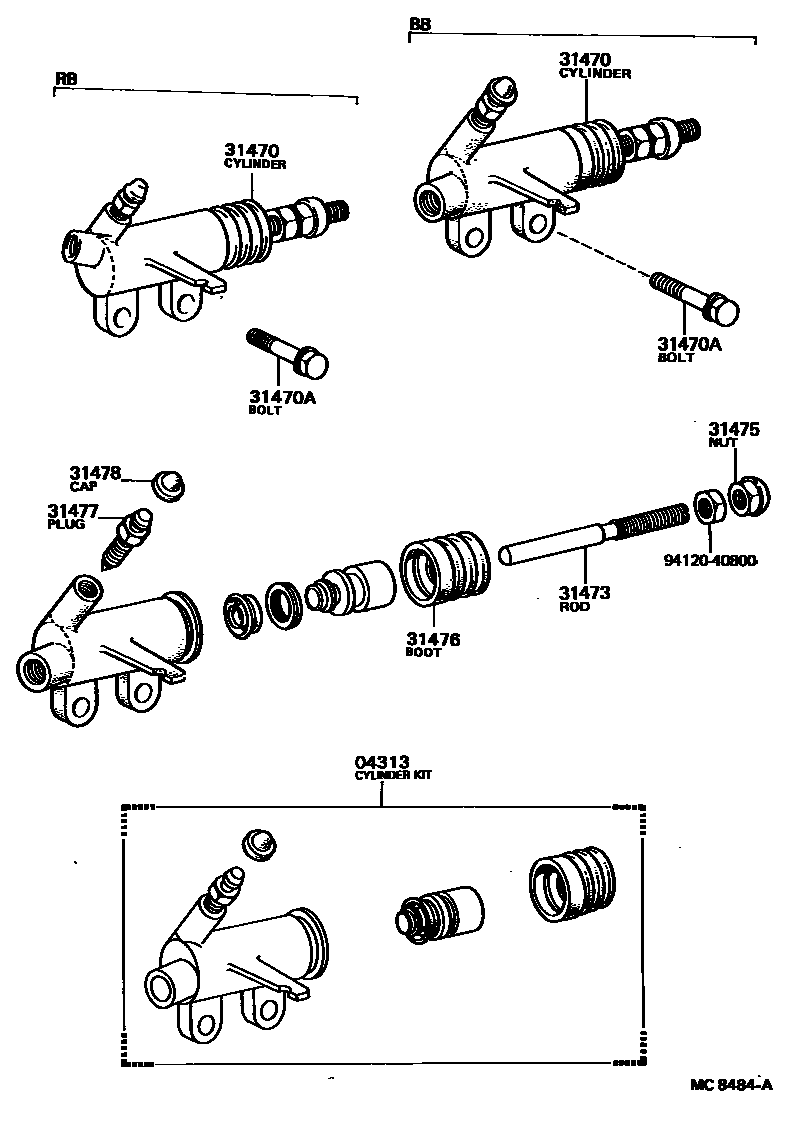

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22020iBB20,21,22,30,RB20¥1,040198510-199301

sub04313-12030¥800

main04313-36021iBB20,30,RB20¥1,030198205-198309

main04313-36080iBB20,30,RB20¥1,140198309-198510

main04313-36100iBB23,32..5F¥1,050198610-199301

sub04313-36140¥1,220

main04313-36130iHDB30,HZB30..5F¥990199001-199301

sub04313-36180¥780

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36050iBB20,30¥7,200198205-198309

main31470-36080iRB20¥7,200198205-198309

main31470-36110iBB20,30,RB20..5F¥7,200198309-198408

sub31470-36130¥7,400

main31470-36120iRB20¥7,200198309-198510

main31470-36130iBB20,30¥7,400198408-198510

main31470-36211iBB23,32..5F¥6,700198808-199301

sub31470-36212¥6,700

main31470-36221iBB20,21,22,30¥6,000198510-199301

main31470-36230iRB20¥7,200198510-199301

main31470-36240iHB3#¥6,700198610-199001

main31470-36250iFB30¥6,700198610-199301

main31470-36290iHDB30,HZB30..5F¥6,700199001-199301

sub31470-36291¥4,040

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥200198510-199301

*8-1.25PX20-20

sub91611-G0820¥160

main91611-60825iBB20,30,RB20¥140198412-198510

*8-1.25PX25-25

sub91611-B0825¥160

main91611-60828iBB20,30,RB20¥110198205-198412

*8-1.25PX28-28

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iBB2#,3#,HB3#,RB20..5F¥720198510-199301

main31473-25010iBB20,30,RB20¥870198205-198309

main31473-30041iBB20,30¥740198309-198408

sub31473-36040¥650

main31473-30051iRB20¥680198309-198510

main31473-36040iBB20,30¥650198408-198510

main31473-36080iFB30¥670198610-199301

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31475-30010iBB20,30,RB20¥680198205-198309

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iBB20,30,RB20¥230198205-199301

main31476-36010iHDB30,HZB30..5F¥460199001-199301

main31476-36020iBB20,30,RB20¥340198408-198510

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥180198205-199301

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F¥160198205-199301

9412040800

main94120-40800¥90

9 parts on this diagram · 2 diagrams in section
