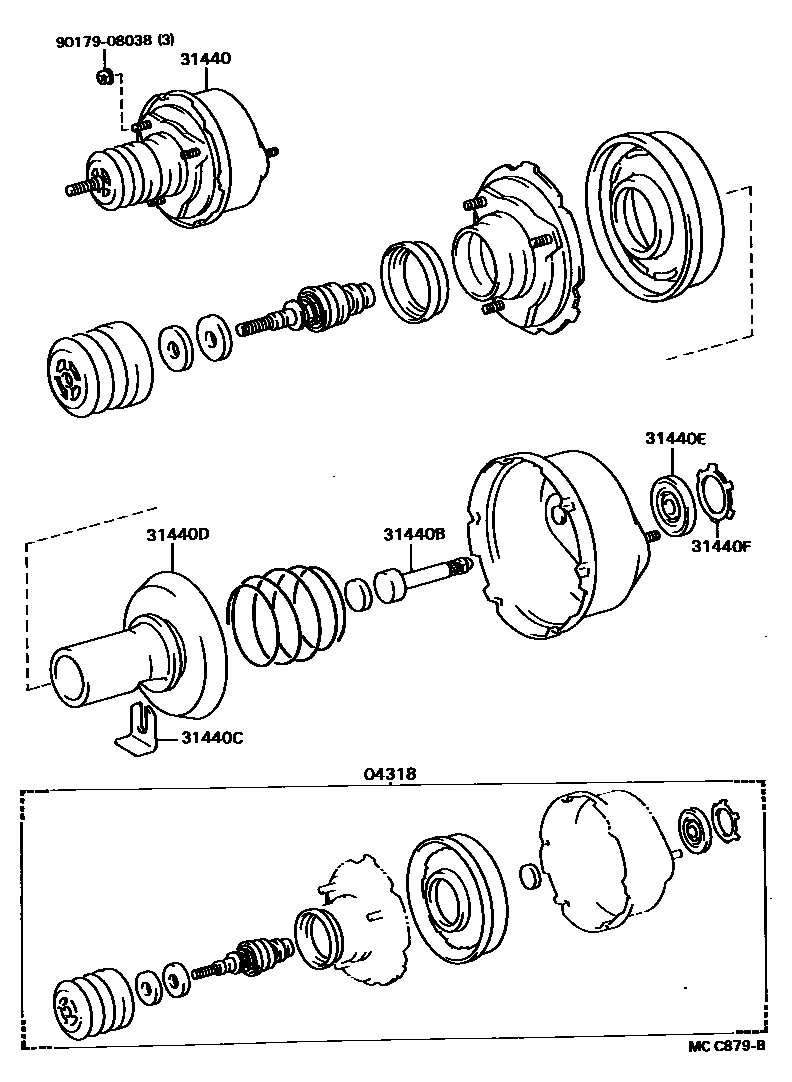

CLUTCH BOOSTER

0001 1 0002 1

04318BOOSTER KIT, CLUTCH

main04318-36020iHB31198610-199001

main04318-36030iFB30,HDB30..LHD198610-199301

31440BOOSTER ASSY, CLUTCH W/AIR CLEANER

main31440-36020iHB31198610-199001

main31440-36040iFB30,HDB30..LHD198610-199301

main31440-36050iHDB30..GEN199001-199301

31440BPISTON, BOOSTER(FOR CLUTCH BOOSTER)

main44642-36100iFB30,HB31198610-199301

31440CKEY, VALVE STOPPER(FOR CLUTCH BOOSTER)

main44635-36100iFB30,HB31198610-199301

31440DROD SUB-ASSY, BOOSTER PISTON(FOR CLUTCH BOOSTER)

main44606-36100iFB30,HB31198610-199301

31440ESEAL, BOOSTER BODY NO.1(FOR CLUTCH BOOSTER)

main44621-28120iFB30,HB31198610-199301

31440FRING, CIRCULAR INTERNAL(FOR CLUTCH BOOSTER)

main44628-28120iFB30,HB31198610-199301

9017908038

main90179-08038

8 parts on this diagram · 2 diagrams in section
