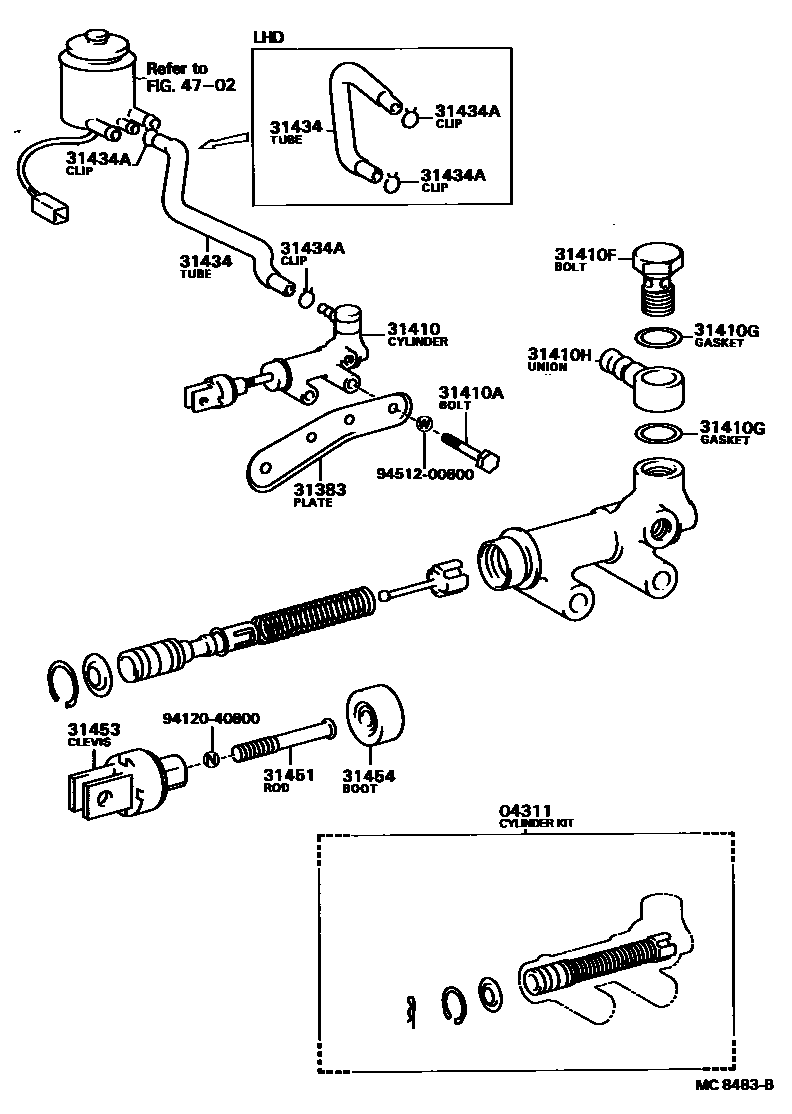

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12040iRB20..RHD198611-199001

sub04311-12041

main04311-14030iRB20..LHD198611-198710

sub04311-14031

main04311-14032iBB32,RB20..LHD198710-199001

sub04311-28010

main04311-20080iBB2#,FB30,HZB30,RB20199001-199301

sub04311-30110

main04311-30080iRB20..LHD198205-198611

sub04311-14020

main04311-36030iBB20,30,RB20198309-198611

sub04311-36031

main04311-36060iFB30,HB31198610-198704

W/CLUTCH BOOSTER

sub04311-36061

main04311-36061iFB30,HB31198704-199301

W/CLUTCH BOOSTER

main04311-36061iHDB30..EUR199109-199301

main04311-36120iHDB30199001-199301

sub04311-36121

31383PLATE, PEDAL SUPPORT SHAFT SET

main55136-90B00iBB20,22,23,3#,RB20198205-199301

31410CYLINDER ASSY, CLUTCH MASTER

main31401-36020iHB31198610-198704

sub31401-36021

main31401-36021iHB31198704-198710

sub31401-36022

main31401-36022iHB31198710-199001

main31401-36040iFB30198610-198704

W/CLUTCH BOOSTER

sub31401-36041

main31401-36041iFB30198704-198710

W/CLUTCH BOOSTER

sub31401-36042

main31401-36042iFB30,HDB30..LHD198710-199301

W/CLUTCH BOOSTER

main31401-36070iHDB30..GEN199001-199301

sub31401-36071

main31420-36040iBB20,RB20198205-198207

sub31420-36041

main31420-36041iBB20,30,RB20198207-198309

sub31420-36042

main31420-36060iRB20..RHD;BB2#,30,FB30,HB30198309-198707

sub31420-36061

main31420-36061iBB21,22,3#,HB30198707-199001

sub31420-36062

main31420-36090iRB20..LHD198412-198704

sub31420-36091

main31420-36091iRB20..LHD198704-198710

sub31420-36092

main31420-36092iBB32,RB20..LHD198710-199001

sub31420-36170

main31420-36160iBB2#,FB30,HZB30199001-199301

sub31420-36170

main31420-36170iBB32,RB20..LHD199001-199301

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91121-40870iBB2#,3#,FB30,HB30,HZB30,RB20198205-199301

sub91131-40870

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16078iBB2#,3#,RB20198205-199001

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242iBB2#,3#,FB30,HB30,RB20198205-199001

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main31416-36010iHB31198610-199001

main90404-12006iFB30,HDB30..LHD198610-199301

W/CLUTCH BOOSTER

main90405-10007iBB2#,3#,FB30,HB30,RB20198205-199001

31434TUBE, CLUTCH RESERVOIR

main31434-36070iBB2#,30,HB30,RB20..RHD198205-199301

main31434-36080iBB20,21,3#,FB30,HB30,RB20..LHD198205-199301

main31434-36160iHB31,HDB30198610-199301

main31434-36180iFB30,HDB30..LHD198610-199301

W/CLUTCH BOOSTER

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90467-14044iBB20,30,RB20198205-198508

sub90467-14001

main96132-30800iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198508-199301

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iBB2#,3#,FB30,HB30,RB20198611-199001

main31451-30060iBB2#,30,FB30,HB30,RB20198205-198611

main31451-36040iBB2#,32,FB30,RB20199001-199301

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-36010iBB20,RB20198205-198207

sub31404-36011

main31404-36011iBB20,21,22,3#,FB30,HB30198207-199001

main31404-36040iRB20..LHD198412-198809

sub31404-36041

main31404-36041iRB20..LHD198809-199301

main31404-36050iBB2#,FB30199001-199301

main31453-22010iFB30,HB31198610-198610

W/CLUTCH BOOSTER

sub31453-35010

main31453-35010iFB30,HB31,HDB30198610-199301

W/CLUTCH BOOSTER

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iBB2#,3#,FB30,HB30,HZB30,RB20198205-199301

4702

9412040800

main94120-40800

9451200800

main94512-00800

15 parts on this diagram · 4 diagrams in section
