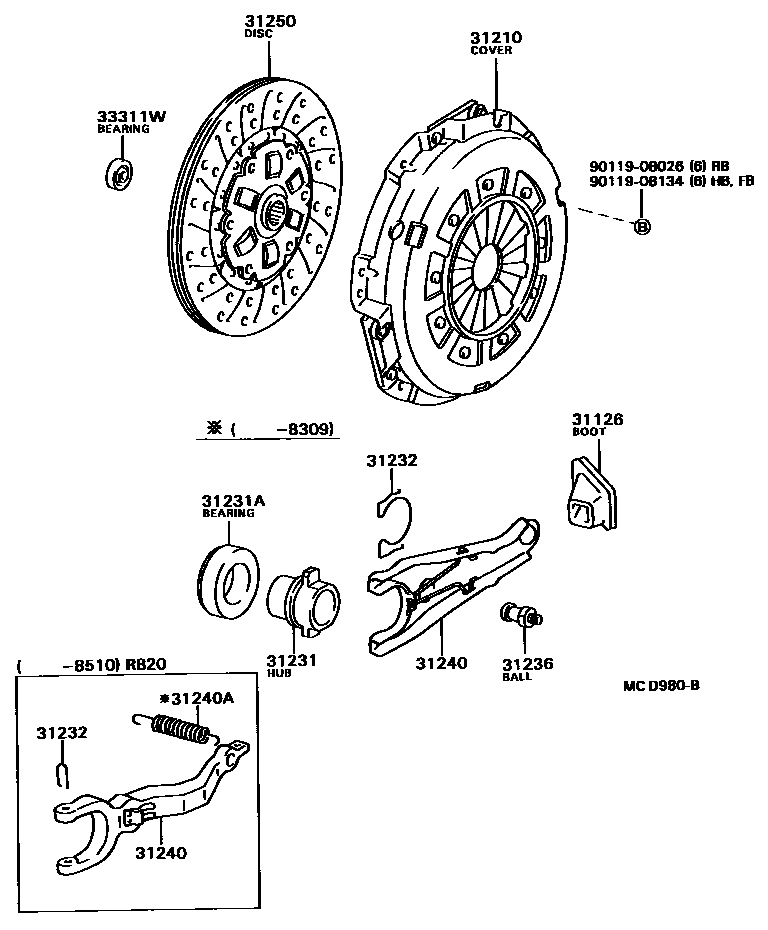

CLUTCH & RELEASE FORK

0001 1 0003 1 0004 1 0005 1 0006 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iBB20,30,RB20198205-198510

main31126-20060iBB2#,3#,RB20..5F198510-199301

main31126-36040iFB30,HB3#198610-199301

main31126-60050iHDB30,HZB30..5F199001-199301

31210COVER ASSY, CLUTCH

main31210-14110iRB20198205-198208

sub31210-14111

main31210-14111iRB20198208-198310

sub31210-14121

main31210-14121iRB20198310-198507

sub31210-14122

main31210-30240iRB20198908-199301

sub31210-30241

main31210-36090iBB20,30198205-198408

sub31210-36100

main31210-36100iBB20,21,22,30198408-198910

sub31210-36101

main31210-36110iFB30,HB31198610-198712

sub31210-36111

main31210-36111iFB30,HB31198712-198808

sub31210-36150

main31210-36120iRB20198507-198606

sub31210-36121

main31210-36121iRB20198606-198908

sub31210-30240

main31210-36140iBB23,32198808-198910

sub31210-36160

main31210-36150iFB30,HB31198808-198910

sub31210-36340

main31210-36160iBB23,32..5F198910-199301

sub31210-36161

main31210-36170iFB30,HB31198910-199301

sub31210-36340

main31210-36190iHDB30199001-199301

sub31210-36191

main31210-60070iHB30198610-198712

sub31210-60071

main31210-60071iHB30198712-198808

sub31210-36140

main31210-60091iHB30198809-198910

sub31210-60100

main31210-60100iHB30,HZB30..5F198910-199301

sub31210-60101

main31210-60130iBB21198910-199301

sub31210-60190

31231HUB, CLUTCH RELEASE BEARING

main31231-35030iRB20198510-198910

main31231-36062iBB20,30198205-198510

main31231-36070iRB20198205-198510

main31231-36090iBB2#,30198510-198808

main31231-36100iFB30,HB3#198610-198910

main31231-36110iBB21198808-198910

main31231-36120iBB23,32198808-198910

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40019iRB20198205-198211

sub90363-40022

main90363-40022iRB20198211-198910

main90363-45002iBB2#,3#198205-198910

main90363-45009iFB30,HB3#198610-198910

sub90363-45013

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-20010iRB20198211-198510

main31232-30010iBB20,RB20198205-198510

main31232-35010iBB2#,3#,RB20198510-198910

main31232-36010iBB23,32..5F198910-199301

main31232-36020iHDB30,HZB30..5F199001-199301

main31232-36030iFB30,HB3#198910-199301

main31232-36040iBB21198910-199301

main31232-60020iFB30,HB3#198610-198910

31236BALL, RELEASE FORK

main31236-30030iRB20198205-198510

main31236-30040iBB20,30198205-198510

main31236-35030iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

31240FORK ASSY, CLUTCH RELEASE

main31204-25010iBB20,30198205-198510

main31204-26010iRB20198205-198510

main31204-35030iBB2#,30,RB20198510-198808

sub31204-35031

main31204-35031iBB2#,32,RB20..5F198808-199301

main31204-36060iFB30,HB3#198610-198910

main31204-36110iHDB30,HZB30..5F199001-199301

main31204-36120iFB30,HB3#198910-199301

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-16004iBB20,30,RB20198205-198309

31250DISC ASSY, CLUTCH

main31250-14130iRB20198205-198310

sub31250-36290

main31250-36113iBB20,30198205-198308

sub31250-60090

main31250-36161iBB20,30198308-198408

sub31250-36230

main31250-36171iRB20198310-198408

sub31250-36181

main31250-36220iRB20198408-198512

sub31250-36290

main31250-36230iBB20,30198408-198510

sub31250-36231

main31250-36280iBB2#,30198512-198608

sub31250-36281

main31250-36290iRB20198512-199301

sub31250-36291

main31250-36300iBB2#,30198608-198610

sub31250-36301

main31250-36301iBB2#,30198610-198804

sub31250-36302

main31250-36302iBB2#,30198804-198808

sub31250-36303

main31250-36320iHB3#198610-198804

sub31250-36390

main31250-36330iFB30198610-199301

sub31250-36241

main31250-36380iBB2#,30198709-198804

NON ASBESTOS

sub31250-36381

main31250-36381iBB2#,30198804-198808

NON ASBESTOS

sub31250-36302

main31250-36390iHB3#198804-199001

sub31250-36480

main31250-36430iBB21198808-199301

sub31250-36431

main31250-36450iBB23,32..5F198808-199301

sub31250-36451

main31250-36480iHDB30,HZB30..5F199001-199301

sub31250-36481

main31250-60090iBB2#,30198510-198512

sub31250-36280

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBB2#,3#,RB20..5F198205-199301

sub90363-12024

main90363-15004iFB30,HB3#198610-199301

main90363-15017iHDB30,HZB30..5F199001-199301

9011908026

main90119-08026

9011908134

main90119-08134

12 parts on this diagram · 5 diagrams in section
