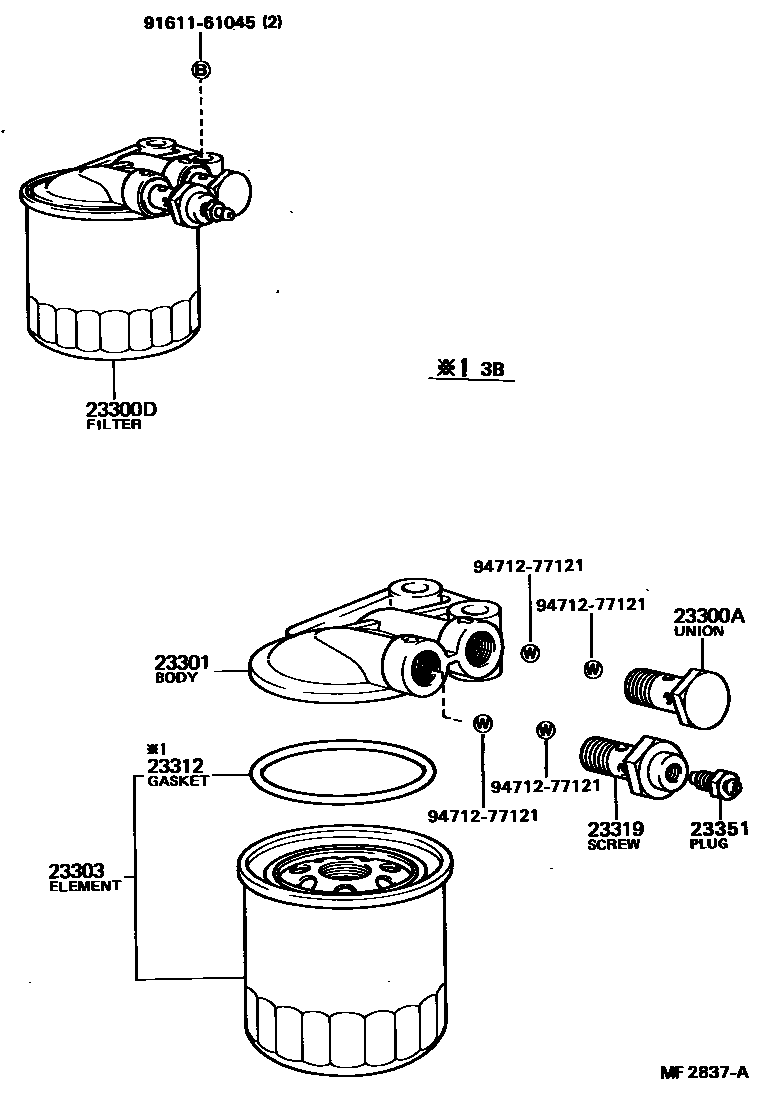

FUEL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1 0008 1 0009 1

23300FILTER ASSY, FUEL

main23300-38010i22R..RB20198205-199301

main23300-61040i3F..FB30198610-198801

main23300-61060i3F..FB30198801-199301

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90099-18010i12HT,2H..HB3#198512-199001

main90401-14060i13B,3B..BB2#,30198205-199301

sub90099-18010

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-56040i3B..BB20,21,30198205-198808

main23300-56080i13B..BB22198510-198808

main23300-68030i12HT,2H..HB3#198610-199001

23301BODY SUB-ASSY, FUEL FILTER

main23311-56040i3B..BB20,21,30198205-198808

main23311-56070i13B..BB22198510-198808

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-54071i13B..BB22198510-198808

sub23303-54072

main23303-54072i12HT,2H..HB3#198806-199001

main23303-56031i3B..BB20,21,30198205-198808

main23303-56040i1HZ..HZB30199001-199301

main23303-64010i14B,3B..BB2#,32198808-199301

23312GASKET, FILTER BOWL

main23312-56021i3B..BB20,21,30198205-198808

23319SCREW, FUEL PIPE FOLLOW

main23319-48010i13B,3B..BB2#,30198205-199001

23351PLUG, AIR VENT

main23351-54010i2H..HB30198205-199001

SEDIMENTER

main47547-12030i13B,3B..BB2#,30198205-198808

FILTER

9161161045

main91611-61045

9471277121

main94712-77121

10 parts on this diagram · 7 diagrams in section
