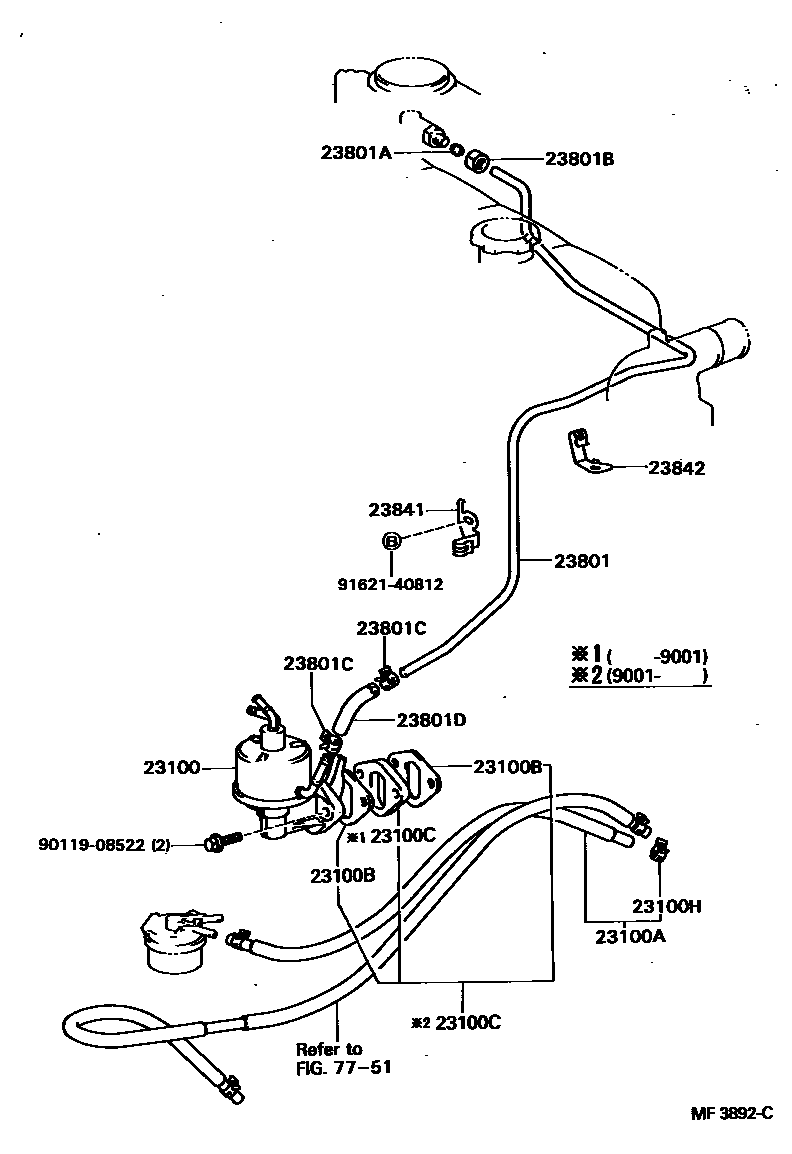

FUEL PUMP & PIPE

0001 1 0002 1

23100PUMP ASSY, FUEL

main23100-35031i22R..RB20198708-198903

sub23100-39336

main23100-39336i22R..RB20198205-199301

main23100-61080i3F..FB30198610-198712

main23100-61090i3F..FB30..GEN198610-198712

CHINA SPEC

sub23100-61091

main23100-61100i3F..FB30198712-198810

sub23100-61101

main23100-61101i3F..FB30198810-199301

23100AHOSE, FUEL

main77260-36030i3F..FB30198610-198712

main77260-36031i3F..FB30198712-199301

main95332-08030i22R..RB20198205-198604

*H,L=260

sub95333-08030

main95333-08026i22R..RB20198604-198702

sub95333-08030

main95333-08030i22R..RB20198702-199301

23100BGASKET, FUEL PUMP

main90923-05005i22R..RB20198205-198808

sub90923-05019

main90923-05016i3F..FB30198610-199001

sub90923-06010

sub90923-06014

main90923-05019i22R..RB20198808-199301

23100CINSULATOR, FUEL PUMP

main90923-06001i22R..RB20198205-198808

sub90923-06009

main90923-06008i3F..FB30198610-199001

sub90923-06010

sub90923-06014

main90923-06010i22R..RB20198808-199301

23100HCLIP(FOR FUEL HOSE)

main96132-30600i22R..RB20198205-198809

PUMP SIDE

sub96132-51100

main96132-30800i22R..RB20198205-199301

FILTER SIDE

sub96132-51300

main96132-30800i3F..FB30198610-198712

sub96132-51300

main96132-31000i3F..FB30198712-199301

sub96132-41500

main96132-41100i22R..RB20198809-199301

PUMP SIDE

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-61060i3F..FB30198610-199301

main95332-06020i22R..RB20198205-198606

L=200(*H,L=190)

sub95333-06020

main95333-06019i22R..RB20198606-198702

L=200(*H,L=190)

sub95333-06020

main95333-06020i22R..RB20198702-199301

L=200

sub95337-06020

23801AOLIVE(FOR FUEL PIPE)

main96395-71400i3F..FB30198610-199301

23801BNUT, UNION(FOR FUEL PIPE)

main90402-13041i3F..FB30198610-199301

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600i22R..RB20198205-198809

sub96132-51100

main96132-30800i3F..FB30198610-199301

sub96132-51300

main96132-41100i22R..RB20198809-199301

sub96132-51100

23801DHOSE, FUEL PIPE, NO.1

main95332-08020i3F..FB30198610-198702

L=200(*H,L=130)

sub95333-08020

main95333-08020i3F..FB30198702-199301

L=200,ID=8

sub95337-08020

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-35010i22R..RB20198205-198408

main23841-35050i22R..RB20198408-199301

main23841-61030i3F..FB30198610-199301

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23842-61020i3F..FB30198610-199301

7751

9011908522

main90119-08522

9162140812

main91621-40812

15 parts on this diagram · 2 diagrams in section
