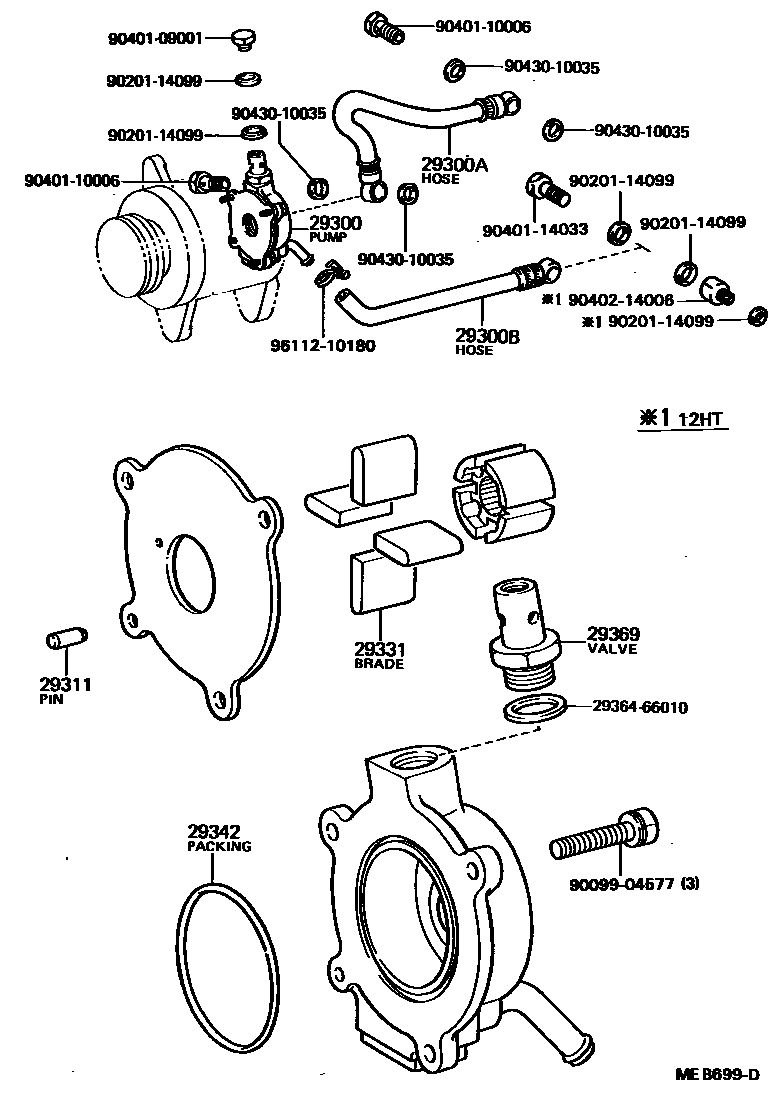

VACUUM PUMP

0001 1 0004 1 0005 1 0006 1

29300PUMP ASSY, VACUUM

main29300-17010i1H#..HDB30,HZB30199001-199301

main29300-54050i2H..HB30..WOC198708-199001

main29300-56070i13B,3B..BB2#,30198205-198808

main29300-58050i14B,3B..BB2#,32198808-199301

sub29300-58060

main29300-68010i2H..HB30..WOC198610-198708

sub29300-54050

main29300-68020i12HT..HB31;2H..HB30..WC198610-199301

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02072i3B..BB20,21..(20S,22S,25S,26S)..WOC198205-198808

main90923-02075i12HT..HB31198610-199001

main90923-02078i3B..BB30198205-198808

main90923-02078i3B..BB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main90923-02100i2H..HB30..WOC198610-199001

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02073i3B..BB20,21..(20S,22S,25S,26S)..WOC198205-198808

sub90923-02068

main90923-02074i2H..HB30..WC198610-199001

main90923-02079i2H..HB30..WOC198610-199001

main90923-02081i3B..BB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main90923-02081i3B..BB20..15S;13B,3B..BB2#..WC198205-198808

main90923-02101i12HT..HB31198610-199001

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i13B,3B..BB2#,30198205-199301

main90099-08082i14B,3B..BB2#,32198708-199301

sub29311-76010

29331BLADE, VACUUM PUMP, A

main29331-56070i12HT,2H..HB3#198205-199001

main29331-58050i1H#..HDB30,HZB30198808-199301

29342PACKING, VACUUM PUMP

main29342-17010i1H#..HDB30,HZB30199001-199301

NO.2

main29342-58010i14B,3B..BB2#,32198808-199301

NO.1

main29342-58020i14B,3B..BB2#,32198808-198906

NO.2

main29342-58050i14B,3B..BB2#,32198808-198906

NO.3

main29342-64010i14B,3B..BB2#,32198906-199301

NO.2

main96740-02063i13B,3B..BB2#,30198205-199001

29369VALVE SUB-ASSY, CHECK

main29369-56070i13B,3B..BB2#,30198205-199001

main29369-64030i14B,3B..BB2#,32198808-199301

2936466010WASHER, VACUUM PUMP

main29364-66010

9009904577

main90099-04577

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040114033

main90401-14033

9040214006

main90402-14006

9043010035

main90430-10035

9611210180

main96112-10180

16 parts on this diagram · 4 diagrams in section
