STARTER

0001 112V 1.0KW 0002 112V 1.0KW 0003 112V 2.5KW,24V 4.5KW 0006 112V 2.5KW,24V 4.5KW 0007 112V 2.5KW 0008 124V 4.5KW

28011CLUTCH SUB-ASSY, STARTER

main28011-17020i1H#..HDB30,HZB30199001-199301

12V 2.5KW,24V 4.5KW

main28011-26042i22R,3F..FB30,RB20198205-199301

12V 1.0KW

main28011-54010i13B,14B,3B..BB2#,3#198205-199301

12V 2.5KW,24V 4.5KW

28100STARTER ASSY

main28100-17010i1HZ..HZB30..WOC..GEN199001-199301

12V 2.5KW,12V 2.5KW

sub28100-17040

main28100-17020i1H#..HDB30,HZB30199001-199301

24V 4.5KW,24V 4.5KW

main28100-34080i22R..RB20198205-199301

12V 1.0KW,12V 1.0KW

main28100-47080i2H..HB30..WOC198610-198705

12V 2.5KW,12V 2.5KW

sub28100-47081

main28100-47081i2H..HB30..WOC198705-199001

12V 2.5KW,12V 2.5KW

sub28100-47071

main28100-47090i2H..HB30..DLX,EX;12HT,2H..HB3#..STD..GEN198610-198705

24V 4.5KW,24V 4.5KW

sub28100-47091

main28100-47091i12HT,2H..HB3#198705-199001

24V 4.5KW,24V 4.5KW

main28100-56030i3B..BB30;3B..BB20..20S..WC;3B..BB20..16S,22S,26S198205-198510

24V 4.5KW,24V 4.5KW

main28100-56040i3B..BB20..WOC198205-198510

12V 2.5KW

main28100-56130i13B,3B..BB22,30;3B..BB20..20S..WC;3B..BB20,21..15S,16S,22S,25S,26S198510-198705

24V 4.5KW,24V 4.5KW

sub28100-56131

main28100-56131i13B,3B..BB2#,30..GEN,ME198705-198808

24V 4.5KW,24V 4.5KW

sub28100-56132

main28100-56132i14B,3B..BB2#,32..5F..(GEN,ME)198808-199301

24V 4.5KW,24V 4.5KW

main28100-56210i3B..BB20,21..(20S,22S,25S,26S)..WOC198510-198705

12V 2.5KW,12V 2.5KW

sub28100-56211

main28100-56211i3B..BB21..WOC198705-198808

12V 2.5KW

sub28100-56212

main28100-56212i14B..BB32..4FC198808-199301

12V 2.5KW

main28100-60070i3F..FB30198610-199301

12V 1.0KW,12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-34080i22R..RB20198205-199301

12V 1.0KW

main28110-56130i14B,3B..BB2#,32198510-199301

12V 2.5KW,24V 4.5KW

sub28110-56131

main28110-60070i3F..FB30198610-199301

12V 1.0KW

main28115-17020i1H#..HDB30,HZB30199001-199301

12V 2.5KW,24V 4.5KW

main28115-47070i12HT,2H..HB3#198610-199001

12V 2.5KW,24V 4.5KW

main28115-56030i3B..BB20,30198205-198510

12V 2.5KW,24V 4.5KW

28120YOKE ASSY, STARTER

main28120-26071i22R,3F..FB30,RB20198205-199301

12V 1.0KW

main28120-47040i1HZ..HZB30..WOC..GEN198205-199301

12V 2.5KW

main28120-56071i12HT,2H..HB3#198708-199001

24V 4.5KW

main28120-56081i2H..HB30..WOC198608-199001

12V 2.5KW

main28120-77090i3B..BB21..20S..WC198205-199301

24V 4.5KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-34060i22R,3F..FB30,RB20198205-199301

12V 1.0KW

main28130-46030i12HT,2H..HB3#198610-199001

12V 2.5KW,24V 4.5KW

sub28130-46040

sub28199-46080

sub90099-04207

main28130-54010i14B..BB23,32198510-199301

12V 2.5KW,24V 4.5KW

sub28130-56300

sub28199-46080

sub90099-04207

main28130-56030i3B..BB20,30198205-198510

12V 2.5KW,24V 4.5KW

sub28130-56060

sub28199-46080

sub90099-04207

28137WASHER, FELT, STARTER

main90099-02205i13B,14B,3B..BB2#,3#198205-199301

12V 2.5KW,24V 4.5KW

main90099-02323i22R..RB20198205-198403

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i22R,3F..FB30,RB20198205-199301

12V 1.0KW

main28140-77090i12HT,2H..HB3#198205-199301

12V 2.5KW,24V 4.5KW

28143SPRING, STARTER BRUSH

main90099-17112i22R,3F..FB30,RB20198205-199301

12V 1.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-17010i1HZ..HZB30..WOC..GEN199001-199301

12V 2.5KW

sub28150-17040

main28150-17020i1H#..HDB30,HZB30199001-199301

24V 4.5KW

sub28150-17030

main28150-34080i22R,3F..FB30,RB20198205-199301

12V 1.0KW

main28150-47070i12HT,2H..HB3#198610-199001

12V 2.5KW

main28150-47090i12HT,2H..HB3#198610-199001

24V 4.5KW

main28150-56040i3B..BB20..WOC198205-198510

12V 2.5KW

main28150-56130i3B..BB21..GEN,ME198705-199301

24V 4.5KW

sub28150-56181

main28150-56181i3B..BB20,21..DLX..(GEN,ME)198510-199301

24V 4.5KW

main28150-56191i3B..BB20,21..(20S,22S,25S,26S)..WOC198510-198705

12V 2.5KW

main28150-56210i3B..BB21..WOC198705-199301

12V 2.5KW

sub28150-56201

main28150-56212i14B..BB32..4FC199001-199301

12V 2.5KW

main28150-77090i3B..BB30;3B..BB20..20S..WC;3B..BB20..16S,22S,26S198205-198510

24V 4.5KW

28160ARMATURE ASSY, STARTER

main28160-26070i22R,3F..FB30,RB20198205-199301

12V 1.0KW

sub28160-26071

main28160-47040i3B..BB21..WOC..(GEN,ME)198205-199301

12V 2.5KW

sub28160-54140

main28160-77090i12HT,2H..HB3#198205-199301

24V 4.5KW

28160ABEARING, STARTER ARMATURE

main28253-45020i22R,3F..FB30,RB20198205-199301

12V 1.0KW,NO.2

main90099-10107i1H#..HDB30,HZB30198205-199301

12V 2.5KW,24V 4.5KW,NO.1

main90099-10113i22R,3F..FB30,RB20198205-199301

12V 1.0KW,NO.1

main90099-10119i1H#..HDB30,HZB30198205-199301

12V 2.5KW,24V 4.5KW,NO.2

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i22R,3F..FB30,RB20198205-199301

12V 1.0KW

main28165-77090i1H#..HDB30,HZB30198205-199301

12V 2.5KW,24V 4.5KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i22R,3F..FB30,RB20198205-199301

12V 1.0KW

main28228-56080i13B,14B,3B..BB2#,3#198205-199301

12V 2.5KW,24V 4.5KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i22R,3F..FB30,RB20198205-199301

12V 1.0KW

main28229-56080i1H#..HDB30,HZB30198205-199301

12V 2.5KW,24V 4.5KW

28252GEAR, STARTER IDLE

main28254-45020i22R,3F..FB30,RB20198205-199301

12V 1.0KW

main28254-77090i12HT,2H..HB3#198205-199301

12V 2.5KW,24V 4.5KW

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9011610021

main90116-10021

9017908146

main90179-08146

9017910125

main90179-10125

9411040800

main94110-40800

9451100800

main94511-00800

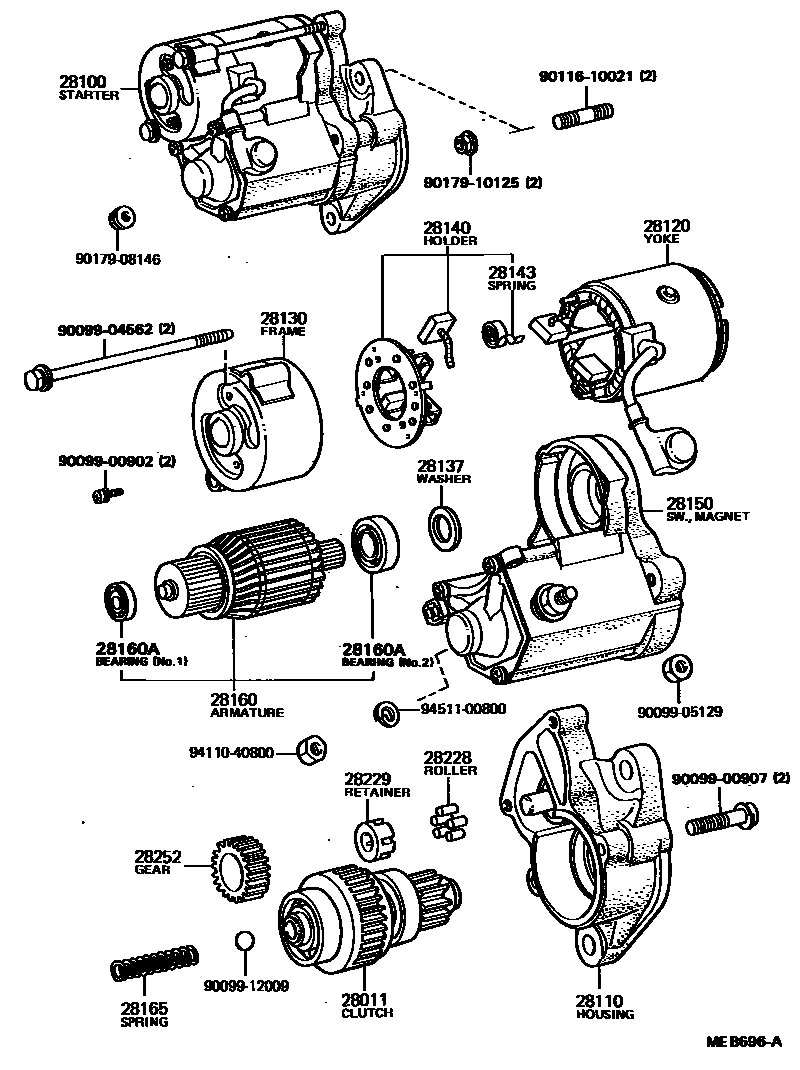

25 parts on this diagram · 6 diagrams in section
