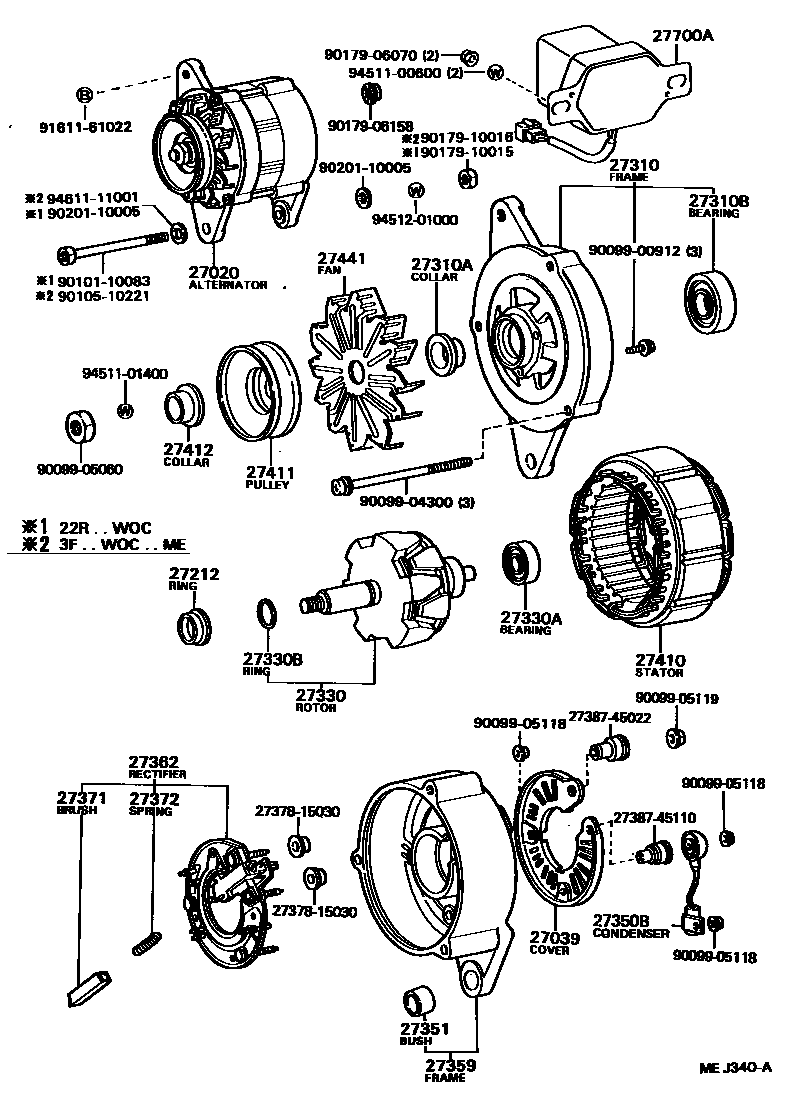

ALTERNATOR

0001 112V 45A 0003 112V 50A 0004 112V 90A,105A 0005 112V 50A 0006 112V 90A 0007 112V 40A,24V 20A,25A 0008 124V 55A 0011 124V 25A,55A 0012 112V 45A 0014 112V 40A,24V 25A 0015 112V 45A 0016 124V 55A 0017 124V 85A

27020ALTERNATOR ASSY

main27020-34051i22R..RB20..DLX..WOC198205-198901

12V 50A,12V 50A

sub27020-34021

main27020-38120i22R..RB20..WOC198205-199011

12V 45A,12V 45A

main27020-38121i22R..RB20..WOC199011-199301

12V 45A,12V 45A

main27020-56130i3B..BB20..RHD..STD..HRF..GEN198205-198808

24V 55A,24V 55A

main27020-56210i3B..BB20,21..(20S,22S,25S,26S)..WOC198205-198808

12V 40A,12V 40A

main27020-56220i3B..BB20,21..(22S,25S,26S)..WOC198205-198801

24V 20A,24V 20A

sub27020-56230

main27020-56230i3B..BB20,21..DLX..WOC198205-198808

24V 25A,24V 25A

main27020-56230i3B..BB21..WOC..(GEN,ME)198801-198808

24V 25A,24V 20A

main27020-61220i3F..FB30..WOC..ME198610-199011

12V 45A,12V 45A

main27020-61221i3F..FB30..WOC199011-199301

12V 45A

main27020-61230i3F..FB30..WOC198610-198901

12V 50A,12V 50A

main27020-68040i2H..HB30..WOC..GEN198610-199001

24V 25A,24V 25A

sub27020-68130

main27020-68060i12HT..HB31;2H..HB30..WC198610-199001

24V 55A,24V 55A

main27020-68100i2H..HB30..WOC198610-198708

12V 40A,12V 40A

sub27020-68110

main27020-68110i2H..HB30..WOC198708-199001

12V 45A,12V 40A

main27060-17080i1HZ..HZB30199001-199301

24V 55A,24V 55A

main27060-17090i1HZ..HZB30..WOC..GEN199001-199301

12V 45A

main27060-17100i1HDT..HDB30199001-199301

24V 85A,24V 85A

main27060-35030i22R..RB20..WC198205-198208

12V 90A,12V 105A

main27060-35030i22R..RB20..WC198208-199301

12V 90A,12V 90A

main27060-58050i3B..BB21..WC198808-199301

24V 55A,24V 55A

main27060-58100i3B..BB21..WOC..(GEN,ME)198808-199301

24V 25A,24V 25A

main27060-58110i3B..BB21..WOC..(GEN,ME)198808-199301

12V 45A

sub27060-58010

main27060-61080i3F..FB30..WC198610-199301

12V 90A,12V 90A

27039COVER, ALTERNATOR REAR END

main27039-15010i3F..FB30..WOC198610-198901

12V 50A

sub27039-61034

main27039-18011i22R..RB20..WOC198205-199301

12V 45A

main27039-42010i14B..BB23,32..5F198808-199301

24V 55A

sub27039-16310

main27039-42020i3B..BB21..WC198808-199301

24V 55A

sub27039-50080

main27039-45110i22R..RB20..DLX..WOC198205-198901

12V 50A

sub27039-34022

main27039-72010i3B..BB21..WOC..(GEN,ME)198808-199301

24V 25A

sub27039-15170

main27039-72150i1HZ..HZB30..WOC..GEN199001-199301

12V45A

main27039-72150i14B..BB32..4FC198808-199301

12V 45A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i22R..RB20..WOC198205-199301

12V 45A

main27333-35070i3F..FB30..WC198610-199301

12V 90A

main27333-57060i3B..BB20,21..(20S,22S,25S,26S)..WOC198205-199301

12V 105A,90A

main27333-57060i2H..HB30..WOC198610-199001

12V 40A,24V 25A

main27412-15150i22R..RB20..WOC198604-198901

12V 50A

main27412-45070i22R..RB20..WOC198205-198604

12V 50A

main27412-54040i3B..BB20..15S;13B,3B..BB2#..WC198205-199001

24V 55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-17100i1HDT..HDB30199001-199301

24V 85A

main27310-18010i3F..FB30..WOC198205-199301

12V 45A

main27310-26101i3F..FB30..WOC198610-198707

12V 50A

sub27310-34050

main27310-34050i22R..RB20..DLX..WOC198205-198901

12V 50A

main27310-35071i3F..FB30..WC198610-199301

12V 90A

main27310-35071i22R..RB20..WC198205-199301

12V 105A,90A

main27310-56110i3B..BB20,21..DLX..WOC198205-198808

24V 25A

main27310-56120i3B..BB20..RHD..STD..HRF..GEN198205-199001

24V 55A

main27310-56140i3B..BB20,21..(20S,22S,25S,26S)..WOC198205-198808

12V 40A,24V 20A

main27310-56160i2H..HB30..WOC198610-199001

12V 40A

main27310-56180i2H..HB30..WOC..GEN198610-199001

24V 25A

main27310-58040i3B..BB21..WOC..(GEN,ME)198808-199301

24V 25A

main27310-58080i14B..BB23,32..5F198808-199301

24V 55A

main27310-58160i1HZ..HZB30199001-199301

24V 55A

main27310-61230i3F..FB30..WOC198707-198901

12V 50A

main27310-72150i3B..BB21..WOC198808-199301

12V 45A

sub27310-72151

main27310-72150i3B..BB21..WOC..(GEN,ME)199001-199301

12V45A

sub27310-72151

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27333-35070i22R..RB20..WC198205-199301

12V 105A,90A

main27333-57060i3F..FB30..WC198610-199301

12V 90A

main27412-16040i3F..FB30..WOC198707-198901

12V 50A

main27412-31040i3F..FB30..WOC198205-199301

12V 45A,50A

main27412-31040i3F..FB30..WOC..ME198707-199301

12V 45A

main27412-57060i3B..BB20,21..(20S,22S,25S,26S)..WOC198205-198808

12V 40A,24V 20A,25A

main27412-57060i2H..HB30..WOC198610-199001

12V 40A,24V 25A

main90099-19251i3B..BB20..15S;13B,3B..BB2#..WC198205-199001

24V 55A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10120i3B..BB20..RHD..STD..HRF..GEN198205-199001

24V 55A

main90099-10125i3F..FB30..WOC198708-199301

12V 45A

main90099-10125i22R..RB20..WOC198205-198901

12V 50A

main90099-10126i3F..FB30..WOC198610-198708

12V 45A,50A

sub90099-10125

main90099-10126i22R..RB20..WOC198205-198708

12V 45A

sub90099-10125

main90099-10137i22R..RB20..WC198205-199301

12V 105A,90A

main90099-10137i3B..BB20,21..(20S,22S,25S,26S)..WOC198205-198808

12V 40A,24V 20A,25A

main90099-10137i2H..HB30..WOC198610-199001

12V 40A,24V 25A

main90099-10137i3F..FB30..WC198610-199301

12V 90A

main90099-10142i3F..FB30..WOC198708-198901

12V 50A

sub90099-10223

main90099-10160i3B..BB21..WC198808-199301

24V 55A

sub90099-10219

main90099-10170i1HZ..HZB30..WOC..GEN198808-199301

12V 45A

sub90099-10198

main90099-10178i3B..BB21..WOC..(GEN,ME)198808-199301

24V 25A

main90099-10192i3B..BB21..WOC..ARL199001-199301

24V 55A

main90099-10198i3B..BB21..WOC..(GEN,ME)199105-199301

12V 45A

sub90099-10229

main90099-58010i1HDT..HDB30199001-199301

24V 85A

sub90099-10188

27330ROTOR ASSY, ALTERNATOR

main27330-16030i22R..RB20..DLX..WOC198604-198901

12V 50A

main27330-35071i22R..RB20..WC198205-199301

12V 105A,90A

main27330-35071i3F..FB30..WC198610-199301

12V 90A

main27330-45020i3F..FB30..WOC..ME198205-199301

12V 45A

main27330-45070i22R..RB20..DLX..WOC198205-198604

12V 50A

sub27330-16030

main27330-56100i3B..BB20,21..(22S,25S,26S)..WOC198205-198808

24V 20A

main27330-56110i3B..BB20,21..DLX..WOC198205-199001

24V 25A

main27330-56140i2H..HB30..WOC198205-199001

12V 40A

sub27330-54200

main27330-58040i3B..BB21..WOC..(GEN,ME)198808-199301

24V 25A

main27330-58050i14B..BB23,32..5F198808-199301

24V 55A

main27330-58090i1HDT..HDB30199001-199301

24V 85A

main27330-68060i3B..BB20..RHD..STD..HRF..GEN198205-199001

24V 55A

main27330-72150i3B..BB21..WOC..(GEN,ME)198808-199301

12V 45A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i22R..RB20198205-198705

12V 45A

sub90099-10116

main90099-10111i3F..FB30..WOC198610-198705

12V 45A,50A

sub90099-10116

main90099-10116i22R..RB20198705-199301

12V 45A

main90099-10116i22R..RB20..WOC198205-198901

12V 50A

main90099-10116i3F..FB30..WOC198705-199301

12V 45A,50A

main90099-10140i3B..BB21..WC..ARL198808-199301

24V 55A

main90099-10140i3B..BB21..WC..ARL198808-199301

24V 25A

main90099-10141i1HDT..HDB30199001-199301

24V 85A

main90099-10145i22R..RB20..WC198205-199301

12V 105A,90A

main90099-10145i3F..FB30..WC198610-199301

12V 90A

main90099-10154i3B..BB21..WOC..(GEN,ME)198808-199301

12V 45A

main90099-10154i3B..BB21..WOC..(GEN,ME)199001-199301

24V 45A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i22R..RB20..WOC198205-199301

12V 45A

main90099-07103i2H..HB30..WOC198610-199001

12V 40A,24V 25A

main90099-07103i3B..BB20,21..(20S,22S,25S,26S)..WOC198205-198808

12V 40A,24V 20A,25A

main90099-07108i12HT..HB31;2H..HB30..WC198205-199001

24V 55A

27350FRAME ASSY, RECTIFIER END

main27350-17100i1HDT..HDB30199001-199301

24V 85A

main27350-35071i22R..RB20..WC198205-199301

12V 105A,90A

main27350-35071i3F..FB30..WC198610-199301

12V 90A

main27350-56110i3B..BB20,21..DLX..WOC198205-198808

24V 25A

main27350-56120i3B..BB20..RHD..STD..HRF..GEN198205-198808

24V 55A

main27350-56140i3B..BB20,21..(20S,22S,25S,26S)..WOC198205-198808

12V 40A,24V 20A

main27350-68030i2H..HB30..WOC198610-199001

12V 40A

main27350-68040i2H..HB30..WOC..GEN198610-199001

24V 25A

main27350-68050i12HT..HB31;2H..HB30..WC198610-199001

24V 55A

27350BCONDENSER, ALTERNATOR

main90099-52065i22R..RB20..WOC198205-199301

12V 45A,50A

sub90099-52034

main90099-52066i2H..HB30..WOC198610-199001

12V 40A

sub90099-52035

main90099-52074i3B..BB20,21..(20S,22S,25S,26S)..WOC198205-198808

12V 40A,24V 20A,25A

main90099-52075i3F..FB30..WC198610-199301

12V 90A

main90099-52075i22R..RB20..WC198205-199301

12V 105A,90A

main90099-52082i3B..BB30198205-199001

24V 55A

main90099-52094i14B..BB23,32..5F198808-199301

24V 55A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-17100i1HDT..HDB30199001-199301

24V 85A

sub27351-58160

main27351-38051i22R..RB20..WOC198205-199301

12V 45A,50A

main27351-56013i3B..BB20,21..(20S,22S,25S,26S)..WOC198205-198808

12V 40A,24V 20A,25A

main27351-56013i2H..HB30..WOC198610-199001

12V 40A,24V 25A

main27351-56070i3B..BB20..RHD..STD..HRF..GEN198205-199001

24V 55A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13050i3F..FB30..WOC198205-199301

12V 45A

main27359-16180i3B..BB21..WOC..(GEN,ME)198808-199301

24V 25A

sub27359-16181

sub27384-16380

main27359-24100i3F..FB30..WOC198205-198901

12V 50A

main27359-35071i22R..RB20..WC198205-199301

12V 105A,90A

main27359-35071i3F..FB30..WC198610-199301

12V 90A

main27359-58050i1HZ..HZB30198808-199301

24V 55A

main27359-72150i1HZ..HZB30..WOC..GEN198808-199301

12V 45A

main27359-72150i1HZ..HZB30..WOC..GEN199001-199301

12V45A

27362RECTIFIER ASSY, W/BRUSH

main27362-15021i3F..FB30..WOC198205-198901

12V 50A

sub27362-63011

main27362-18011i22R..RB20..WOC198205-199301

12V 45A

main27362-35071i3F..FB30..WC198610-199301

12V 90A

main27362-35071i22R..RB20..WC198205-199301

12V 105A,90A

27371BRUSH, ALTERNATOR

main27371-31011i22R..RB20198205-199301

12V 45A,50A,105A,90A

main27371-31011i3F..FB30198610-199301

12V 45A,50A,90A

main27371-56070i1HDT..HDB30199001-199301

24V 85A

sub27371-54412

main27371-56070i13B,3B..BB2#,30198205-198808

12V 40A,24V 20A,25A,55A

sub27371-54412

main27371-56070i12HT,2H..HB3#198610-199001

12V 40A,24V 25A,55A

sub27371-54412

main27371-63020i3B..BB21..WOC198808-199301

12V 45A,24V 25A

sub27371-70300

main27371-63020i14B..BB32..4FC199001-199301

12V 45A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-31011i22R..RB20198205-199301

12V 45A,50A,105A,90A

main27372-31011i3F..FB30198610-199301

12V 45A,50A,90A

main27372-56070i1HDT..HDB30199001-199301

24V 85A

main27372-56070i13B,3B..BB2#,30198205-198808

12V 40A,24V 20A,25A,55A

main27372-56070i12HT,2H..HB3#198610-199001

12V 40A,24V 25A,55A

main27372-72100i3B..BB21..WOC198808-199301

12V 45A,24V 25A

sub27372-63020

main27372-72100i14B..BB32..4FC199001-199301

12V 45A

sub27372-63020

27410STATOR ASSY, ALTERNATOR

main27410-17100i1HDT..HDB30199001-199301

24V 85A

main27410-35070i3B..BB20..RHD..STD..HRF..GEN198205-198208

12V 105A

main27410-35071i22R..RB20..WC198208-199301

12V 90A

main27410-38120i3F..FB30..WOC..ME198205-199301

12V 45A

main27410-41080i22R..RB20..DLX..WOC198205-199301

12V 50A

main27410-54190i2H..HB30..WOC198610-199001

12V 40A

sub27410-54340

main27410-56100i3B..BB20,21..(22S,25S,26S)..WOC198409-198808

24V 20A

main27410-56110i2H..HB30..WOC..GEN198409-199001

24V 25A

main27410-57020i3B..BB20..DLX..WOC198205-198409

24V 25A

main27410-57060i3B..BB20,21..(20S,22S,25S,26S)..WOC198205-198808

12V 40A

main27410-57090i3B..BB20..WOC..GEN198205-198409

24V 20A

main27410-57120i3B..BB30198205-199001

24V 55A

27411PULLEY, ALTERNATOR

main27411-17030i1HZ..HZB30199001-199301

24V 55A

main27411-17090i1HZ..HZB30..WOC..GEN199001-199301

main27411-17100i1HDT..HDB30199001-199301

24V 85A

main27411-31042i22R..RB20..WOC198205-199301

12V 45A,50A

main27411-35030i3F..FB30..WC198610-199301

12V 90A

sub27411-35070

main27411-35071i22R..RB20..WC198205-199301

12V 105A,90A

main27411-56121i13B,3B..BB20,21,22..WC198205-199301

24V 55A

main27411-56210i3B..BB20,21..WOC198205-198808

12V 40A,24V 20A,25A

main27411-58040i3B..BB21..WOC..(GEN,ME)198808-199301

24V 25A

main27411-58060i14B..BB32..4FC199001-199301

24V 45A

main27411-58060i14B..BB32..4FC198808-199301

12V 45A

main27411-58080i3B..BB21..WC198808-199301

24V 55A

main27411-61220i3F..FB30..WOC198610-199301

12V 45A,50A

main27411-68041i2H..HB30..WOC198610-199001

12V 40A,24V 25A

main27411-68051i12HT..HB31;2H..HB30..WC198610-199001

24V 55A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i22R..RB20..WOC198205-199301

12V 45A,50A

sub27412-44031

27441FAN, ALTERNATOR

main27441-34030i22R..RB20..WOC198205-199301

12V 45A,50A

main27441-35070i22R..RB20..WC198205-199301

12V 105A,90A

main27441-35070i2H..HB30..WOC198610-199001

12V 90A

main27441-56090i3B..BB20,21..(20S,22S,25S,26S)..WOC198205-198808

12V 40A,24V 20A,25A

main27441-56090i2H..HB30..WOC198610-199001

12V 40A,24V 25A

main27441-57030i3B..BB20..RHD..STD..HRF..GEN198205-199001

24V 55A

main27441-57030i1HDT..HDB30199001-199301

24V 85A

27700AREGULATOR ASSY, GENERATOR

main27700-10071i3B..BB21..WOC..(GEN,ME)198808-199301

12V 45A

sub27700-58030

main27700-13070i3F..FB30..WC198610-199301

12V 90A

main27700-13070i22R..RB20..WC198205-199301

12V 105A,90A

main27700-35030i22R,3B,3F,2H..BB20,21,FB30,HB30,RB20..(20S,22S,23S,25S,26S,29S,30S)..WOC198205-199301

12V 40A,45A,50A

sub27700-13080

main27700-57050i2H..HB30..WC198205-199001

24V 55A

sub27700-57051

sub90099-05118

main27700-57051i3B..BB20..15S;13B,3B,2H..BB2#,HB30..WC198608-199001

24V 55A

main27700-57070i3B,2H..BB20,21,HB30..(22S,26S,30S)..WOC..GEN198205-198808

24V 20A,25A

main27700-58010i1HDT..HDB30199001-199301

24V 85A

main27700-58020i3B..BB21..WOC198808-199301

24V 55A

main27700-58020i3B..BB21..WOC..(GEN,ME)198808-199301

24V 25A

main27700-58030i1HZ..HZB30..WOC..GEN199001-199301

12V 45A

sub27700-66010

2737815030INSULATOR, ALTERNATOR, NO.1

main27378-15030

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110083

main90101-10083

9010510221

main90105-10221

9017906070

main90179-06070

9017906158

main90179-06158

9017910015

main90179-10015

9017910016

main90179-10016

9020110005

main90201-10005

9161161022

main91611-61022

9451100600

main94511-00600

9451101400

main94511-01400

9451201000

main94512-01000

9461111001

main94611-11001

41 parts on this diagram · 13 diagrams in section
