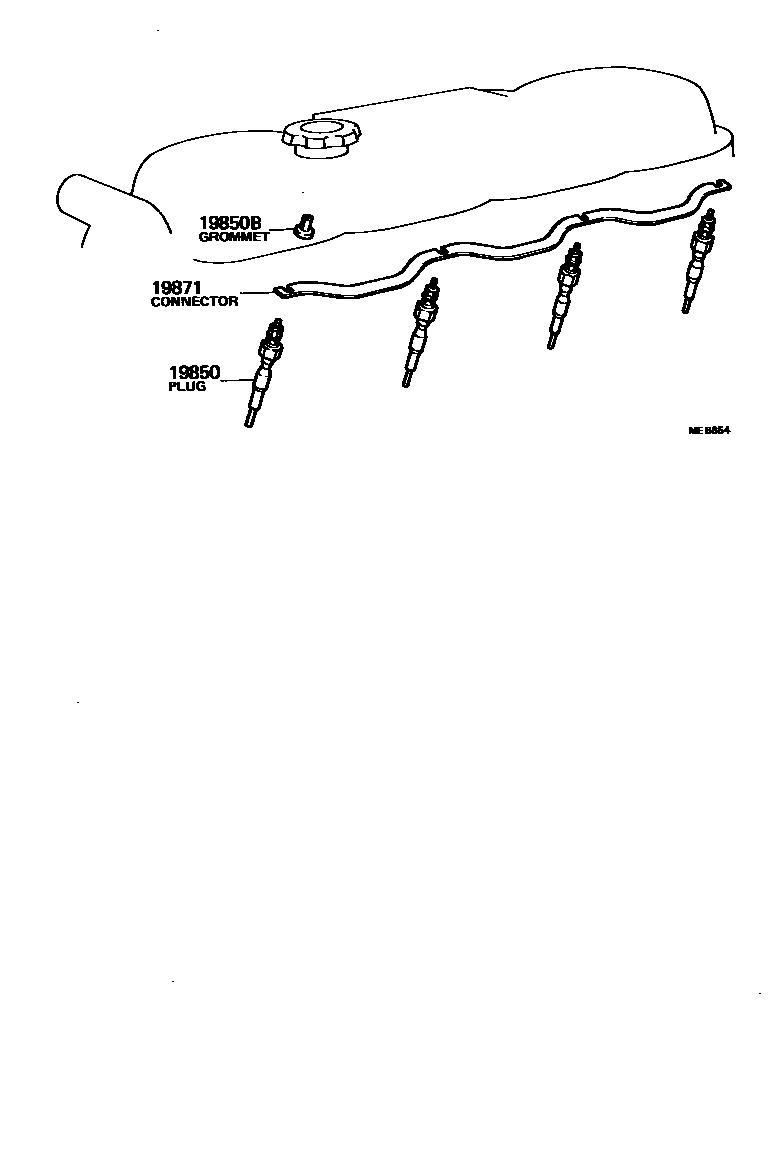

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

19850PLUG ASSY, GLOW

main19850-58010i3B..BB21..ARL198808-199301

*BV-GV=24V-23V,*24V-23V

main19850-58010i3B..BB21..ARL198808-199301

*BV-GV=24V-23V

main19850-64031i2H..HB30..WOC198808-199301

*BV-GV=12V-11V,*12V-11V

main19850-64031i3B..BB21..WOC..ARL198808-199001

*BV-GV=12V-11V

main19850-68010i2H..HB30..WOC..GEN198205-199301

*BV-GV=12V-10.5V,*12V-10.5V

main19850-68020i3B..BB20,21,30198205-199301

*BV-GV=24V-23V,*24V-23V

main19850-68051i2H..HB30..WOC..ARL198610-198808

*BV-GV=12V-6V,*12V-6V

main19850-68060i2H..HB30..WC..ARL198610-198808

*BV-GV=24V-14V,*24V-14V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i1H#,2H..HB30,HDB30,HZB30198205-199301

19871CONNECTOR, GLOW PLUG NO.1

main19871-17010i1HZ..HZB30199001-199301

main19871-17020i1HDT..HDB30199001-199104

sub19871-17021

main19871-17021i1HDT..HDB30199104-199301

main19871-56020i3B..BB20,21,30198205-199301

main19871-68011i2H..HB30198610-199001

3 parts on this diagram · 8 diagrams in section
