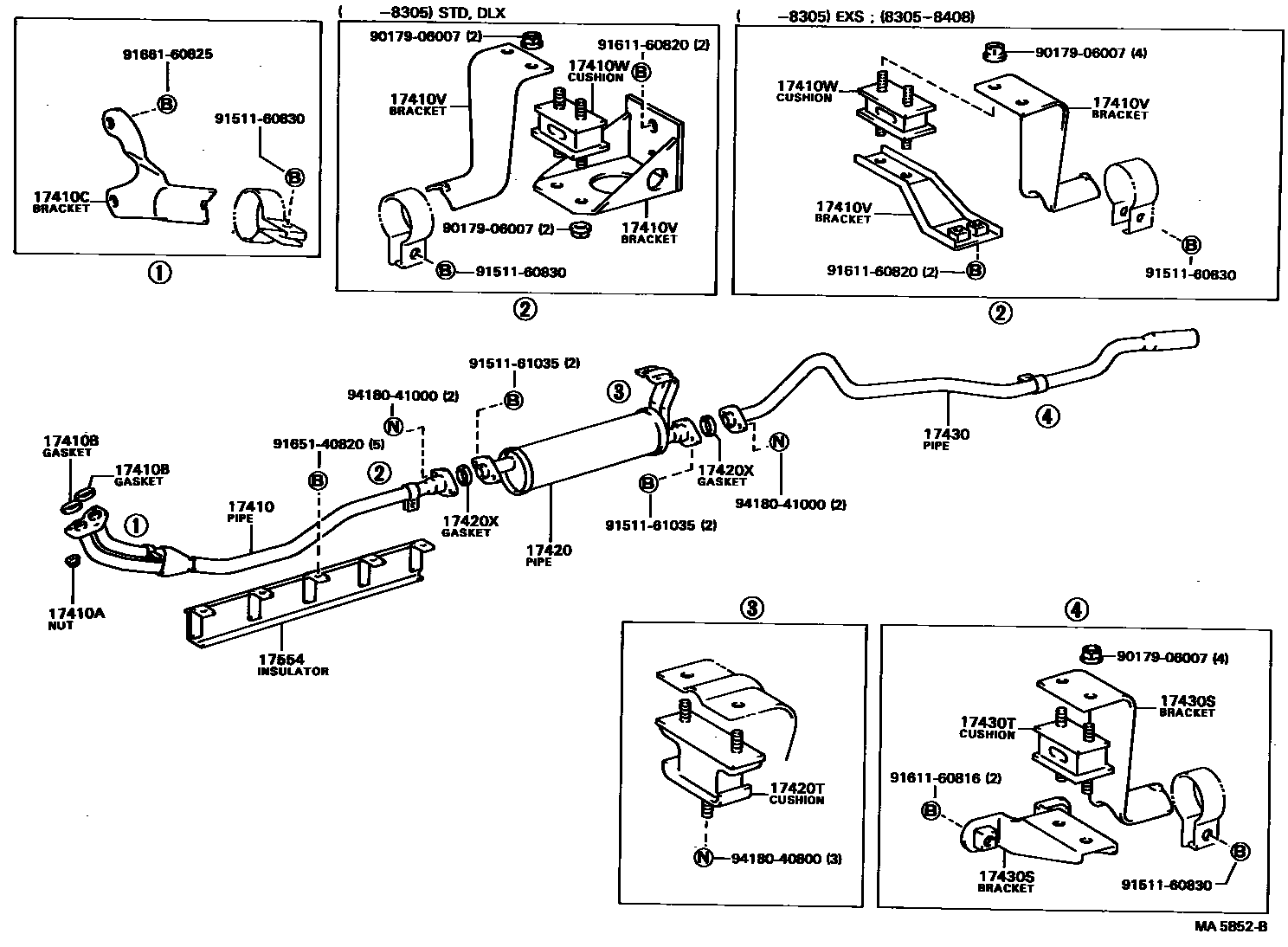

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-17080i1HZ..HZB30199001-199102

main17401-17081i1HZ..HZB30199102-199301

main17401-17090i1HDT..HDB30199001-199102

main17401-17091i1HDT..HDB30199102-199301

main17401-38110i22R..RB20..DLX,STD198205-198305

main17401-38120i22R..RB20..17S198205-198305

main17401-38121i22R..RB20198408-198510

main17401-38122i22R..RB20198510-198703

main17401-38123i22R..RB20198703-199301

main17401-47100i2H..HB30198610-199001

W/EXHAUST BRAKE

main17401-56120i3B..BB20198205-198408

main17401-56121i3B..BB20,21198408-198808

main17401-56130i3B..BB20,30..GEN198302-198408

W/EXHAUST BRAKE

main17401-56131i3B..BB20,21,30..GEN,ME198408-198808

W/EXHAUST BRAKE

main17401-58130i13B..BB22198510-199301

W/EXHAUST BRAKE

main17401-58140i13B..BB22198510-199301

main17401-58210i14B,3B..BB2#198808-199301

main17401-58220i14B,3B..BB2#,32198808-199301

W/EXHAUST BRAKE

sub17401-58221

main17401-61220i3F..FB30198610-199301

main17401-68050i12HT..HB31198610-199001

main17401-68060i2H..HB30198610-199001

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10010×3i22R,3B..BB20,30,RB20198205-198408

main90179-10070×3i12HT,22R,13B,14B,3B,1H#,2H..BB2#,3#,HB3#,HDB30,HZB30,RB20198408-199301

17410BGASKET, EXHAUST PIPE

main90917-06001×2i22R..RB20198205-199011

main90917-06004×2i3F..FB30198610-199011

main90917-06005i2H..HB30198610-199001

main90917-06012i13B,3B..BB2#,30198205-198808

main90917-06034i12HT..HB31198610-199001

main90917-06038×2i3F..FB30199011-199301

main90917-06039×2i22R..RB20199011-199301

main90917-06054i1HZ..HZB30199001-199301

main90917-06056i1HDT..HDB30199001-199301

main90917-06059i14B,3B..BB2#,32199011-199301

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-17040i1H#..HDB30,HZB30..5F199001-199010

main17571-17041i1H#..HDB30,HZB30..5F199010-199102

main17571-17042i1H#..HDB30,HZB30..5F199102-199301

main17571-17050i1HZ..HZB30..ME199001-199301

main17571-35050i22R..RB20198703-199301

main17571-38150i22R..RB20198205-198510

main17571-38160i22R..RB20198510-198703

main17571-47080i2H..HB30198610-199001

main17571-56070i3B..BB20,30198205-198510

main17571-58150i13B,3B..BB2#,30198510-198808

main17571-58250i14B,3B..BB2#,32..5F198808-199301

main17571-58260i14B..BB32..4FC199001-199301

main17571-68050i12HT,3F..FB30,HB31198610-199301

17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)

main17561-56010i22R,3B..BB20,30,RB20198205-198408

PIPE SIDE

main17572-38070i22R..RB20..DLX,STD198205-198305

BODY SIDE

main17572-56160i22R..RB20..17S198205-198305

BODY SIDE

main17572-56161i22R,13B,14B,3B,3F,2H..BB2#,3#,FB30,HB30,RB20198408-199301

17410WCUSHION, EXHAUST PIPE FRONT (FOR REAR)

main17567-35010i22R..RB20198703-199301

main17567-58010i13B,14B,3B,3F,2H..BB2#,30,FB30,HB30198703-199301

main17567-61030i22R,3B..BB20,30,RB20198205-198408

17420PIPE ASSY, EXHAUST, CENTER

main17402-17010i1HZ..HZB30..5F199001-199301

FR

sub17402-17011

main17402-17020i1HZ..HZB30..ME199001-199301

FR

sub17402-17021

main17402-17030i1HDT..HDB30199001-199301

FR

sub17402-17031

main17402-47011i2H..HB30198610-199001

W/EXHAUST BRAKE,FR

main17402-56010i3B..BB30198306-198408

FR

main17402-56011i3B..BB30198408-198808

FR

main17402-58020i14B..BB32198808-199301

FR

main17402-68010i12HT..HB31198610-199001

FR

main17403-17080i1HZ..HZB30199001-199301

RR

main17403-17090i1HDT..HDB30199001-199301

RR

main17403-38010i22R..RB20..DLX,STD198205-198305

main17403-38020i22R..RB20..17S198205-198305

main17403-38021i22R..RB20198408-199301

main17403-56090i3B..BB20198205-198408

main17403-56091i2H..HB30198808-199001

RR

main17403-56100i3B..BB20..RHD..GEN198205-198302

W/EXHAUST BRAKE

main17403-56101i3B..BB20,21..GEN,ME198408-198808

W/EXHAUST BRAKE

main17403-56200i3B..BB20,21198408-198808

main17403-58090i13B..BB22198510-199301

W/EXHAUST BRAKE

main17403-58100i13B..BB22198510-198808

main17403-58260i3B..BB21198808-199301

main17403-58270i3B..BB21..GEN,ME198808-199301

W/EXHAUST BRAKE

main17403-58280i14B..BB23198808-199301

RR

main17403-58290i14B..BB23198808-199301

W/EXHAUST BRAKE

main17403-61100i3F..FB30198610-199301

main17403-68020i12HT..HB31198610-199001

RR

17420TCUSHION, EXHAUST PIPE CENTER, REAR

main17567-35010i22R..RB20198703-199301

main17567-56010i22R,3B..BB20,30,RB20198205-198408

main17567-58010i12HT,22R,13B,3B,3F,2H..BB2#,30,FB30,HB3#,RB20198408-198703

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06005i3B..BB21198808-199011

FR

main90917-06012×2i22R,13B,3B,2H..BB2#,30,HB30,RB20198205-198808

main90917-06042×2i14B,3F..BB23,32,FB30199011-199301

FR

main90917-06045×2i22R..RB20199011-199301

RR

main90917-06054×2i1H#..HDB30,HZB30199001-199301

17430PIPE ASSY, EXHAUST, TAIL

main17405-17090i1H#..HDB30,HZB30199001-199301

main17405-17110i1HZ..HZB30..RHD..DLX..WC199001-199301

HONG KONG SPEC

main17405-38030i22R..RB20..DLX,STD198205-198305

main17405-56210i22R..RB20..17S198205-198305

main17405-56211i3B..BB21198808-199301

main17405-56220i3B..BB20..RHD..STD..HRF198405-198408

HONG KONG SPEC

main17405-56221i3B..BB20..RHD..STD..HRF198408-198510

HONG KONG SPEC

main17405-58400i14B..BB23198808-199301

main17405-68090i12HT,14B,3F..BB32,FB30,HB31198610-199301

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17561-17010i1H#..HDB30,HZB30199001-199301

PIPE SIDE

main17561-56010i22R,13B,3B,2H..BB20,21,22,30,HB30,RB20198205-199301

PIPE SIDE

main17561-68010i12HT,3F..FB30,HB31198610-198808

PIPE SIDE

main17574-56080i12HT,22R,13B,14B,3B,3F,1H#,2H..BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

BODY SIDE

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17567-61030i12HT,22R,13B,14B,3B,3F,1H#,2H..BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

17554INSULATOR, EXHAUST PIPE HEAT, FRONT

main17554-17010i1HZ..HZB30..WC199001-199301

main17554-36010i22R..RB20..LHD198205-198408

W/HEAT INSULATOR

main17554-36011i22R..RB20..LHD198408-199301

main17554-61020i3F..FB30198610-199301

9017906007

main90179-06007

9151160830

main91511-60830

9151161035

main91511-61035

9161160816

main91611-60816

9161160820

main91611-60820

9165140820

main91651-40820

9166160825

main91661-60825

9418040800

main94180-40800

9418041000

main94180-41000

22 parts on this diagram · 7 diagrams in section
