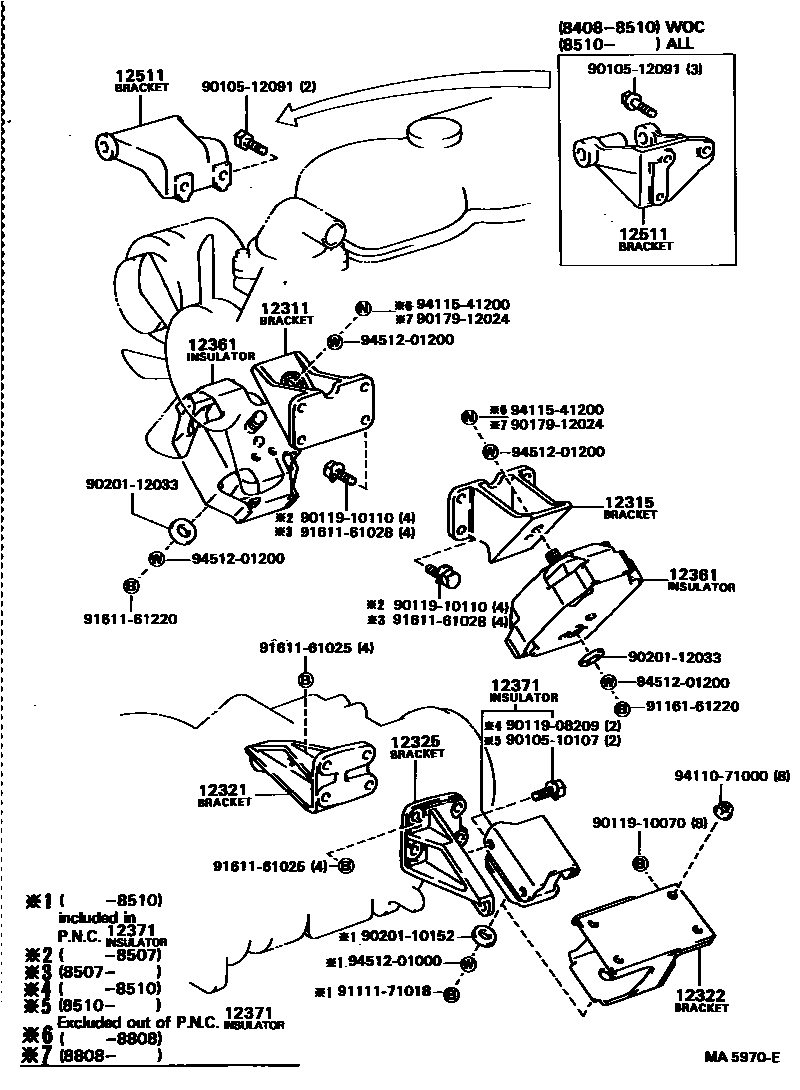

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-17030i1H#..HDB30,HZB30199001-199301

main12311-35030i22R..RB20..WOC198205-199301

main12311-58010i13B,3B..BB2#,30198205-198808

main12311-58050i14B,3B..BB2#,32198808-198910

main12311-58051i14B,3B..BB2#,32198910-199301

sub12311-58050

main12311-61080i3F..FB30198610-199301

main12311-68040i12HT,2H..HB3#198610-199001

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12311-58010i13B,3B..BB2#,30198205-198808

main12311-68040i12HT,2H..HB3#198510-199001

main12315-17030i1H#..HDB30,HZB30199001-199301

main12315-35010i22R..RB20198205-199301

main12315-58030i14B,3B..BB2#,32198808-199301

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-17010i1HZ..HZB30..ME199001-199301

main12321-35010i22R..RB20..4F198205-198510

main12321-35020i22R..RB20..5F198205-198510

RH

main12321-35030i22R..RB20198510-198808

RH

sub12321-35040

main12321-35040i22R..RB20198808-199301

RH

main12321-58010i3B..BB20,30198205-198510

main12321-58110i13B,3B..BB2#,30198510-198808

main12321-58160i14B,3B..BB2#,32..5F198808-199301

main12321-58170i14B..BB32..4FC199001-199301

main12321-61020i3F..FB30198610-199301

RH

main12321-68030i12HT,2H..HB3#198510-199301

main12325-35010i22R..RB20..5F198205-198510

LH

main12325-35020i22R..RB20198510-198808

LH

sub12325-35030

main12325-35030i22R..RB20198808-199301

LH

main12325-61010i3F..FB30198610-199301

LH

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-35010i22R..RB20..4F198205-198510

main12322-56060i22R..RB20..5F198205-198510

main12322-58010i13B,14B,3B..BB2#,3#198510-199301

main12322-68030i1H#..HDB30,HZB30..5F198610-199301

main12322-68040i1HZ..HZB30..ME199001-199301

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-17010i1HZ..HZB30..ME199001-199301

main12325-58010i3B..BB20,30198205-198510

main12325-58080i13B,3B..BB2#,30198510-198808

main12325-58120i14B,3B..BB2#,32..5F198808-199301

main12325-58130i14B..BB32..4FC199001-199301

main12325-68030i1H#..HDB30,HZB30..5F198610-199301

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-35030i22R..RB20..WC198205-199301

RH

sub12361-35031

main12361-38060i22R..RB20..WC198205-199301

LH

sub12361-38061

main12361-58010i13B,3B..BB2#,30198205-198808

main12361-58070i14B,3B..BB2#,32198808-199301

main12361-61040i3F..FB30198610-199301

main12361-68030i12HT,2H..HB3#198610-198810

sub12361-68031

main12361-68031i12HT,2H..HB3#198810-199001

sub12361-68032

main12361-68032i1H#..HDB30,HZB30199001-199301

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-58040i22R..RB20198510-199301

main12371-59035i3B..BB20,30198205-198510

sub12371-57011

main12371-68060i1H#..HDB30,HZB30..5F198610-199301

main12371-68070i1HZ..HZB30..ME199001-199301

12511BRACKET, ALTERNATOR, NO.1

main12501-56010i14B,3B..BB2#,32198808-199301

main12511-17010i1HZ..HZB30199001-199301

sub12511-17011

main12511-17020i1HDT..HDB30199001-199301

main12511-35010i22R..RB20..WOC..(ARL,GEN)198205-199301

main12511-35020i22R..RB20..WC198205-199301

main12511-56031i3B..BB20..WOC198205-198408

main12511-56040i3B..BB20,21..(20S,22S,25S,26S)..WOC198408-198808

main12511-58010i3B..BB30;3B..BB20..WC198205-198510

main12511-58010i3B..BB20..RHD..STD..HRF198405-198510

HONG KONG SPEC

main12511-58011i3B..BB30;3B..BB20..15S;13B,3B..BB2#..WC198510-198808

main12511-58011i3B..BB20..RHD..STD..HRF198510-198610

HONG KONG SPEC

main12511-61050i3F..FB30198610-199301

main12511-68011i2H..HB30..WOC198610-199001

main12511-68020i12HT..HB31198610-199001

9010510107

main90105-10107

9010512091

main90105-12091

9011908209

main90119-08209

9011910070

main90119-10070

9011910110

main90119-10110

9017912024

main90179-12024

9020110152

main90201-10152

9020112033

main90201-12033

9111171018

main91111-71018

9116161220

main91161-61220

9161161025

main91611-61025

9161161028

main91611-61028

9161161220

main91611-61220

9411071000

main94110-71000

9411541200

main94115-41200

9451201000

main94512-01000

9451201200

main94512-01200

25 parts on this diagram · 5 diagrams in section
