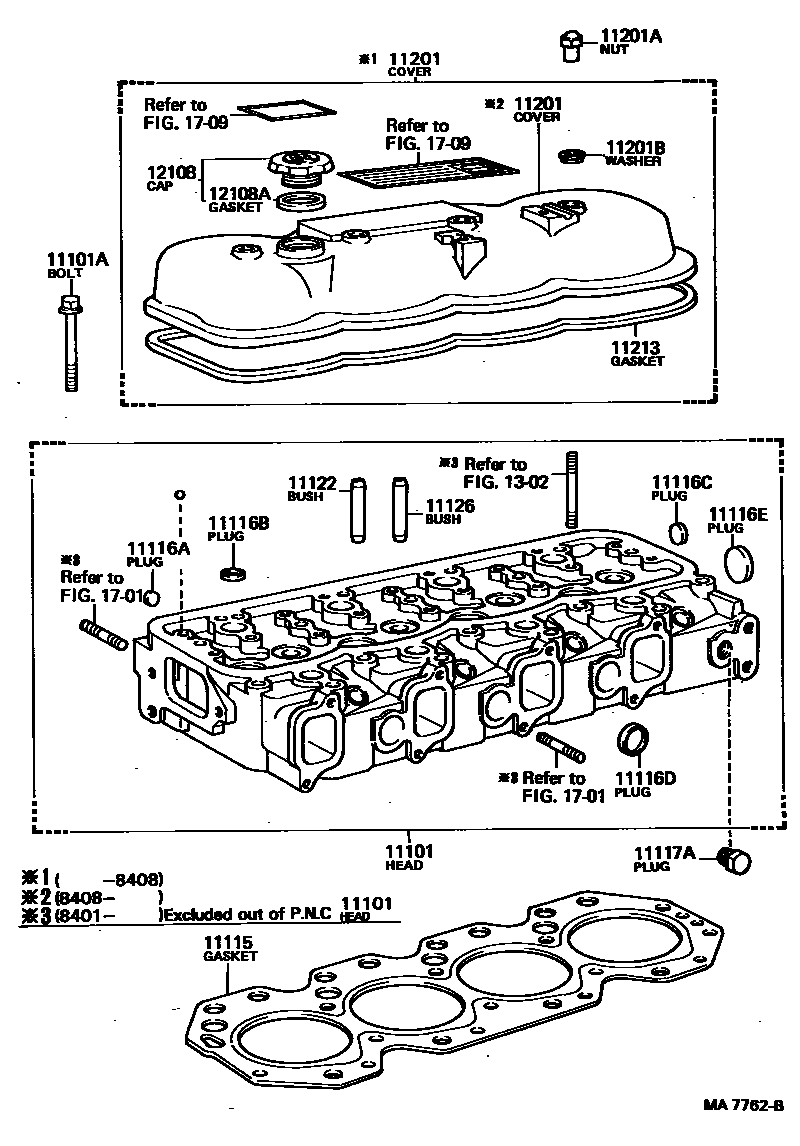

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-17011
sub11101-35080
sub11101-58013
sub11101-58041
sub11101-58051
11101ABOLT(FOR CYLINDER HEAD SET)
L=138.0
*12-1.25PX119-25
L=122.5
*12-1.25PX166.5-21
*12-1.25PX119-25
*12-1.25PX122.5-60
11115GASKET, CYLINDER HEAD
MARK 1,MARK 1
MARK 3,MARK 3
MARK 5,MARK 5
sub11115-35030
sub11115-35021
CHINA SPEC
sub11115-58011
sub11115-58012
sub11115-58040
T=1.50,T=1.5
T=1.60,T=1.6
T=1.70,T=1.7
T=1.40
sub11115-68040
sub11115-68050
11116APLUG, TIGHT, NO.1
OD=12
OD=20
OD=25
OD=50
11116BPLUG, TIGHT, NO.2
OD=25
OD=35
OD=40
11116CPLUG, TIGHT, NO.3
OD=21
LOW-OCTANE SPEC;CHINA SPEC
OD=30
OD=40
11116DPLUG, TIGHT, NO.4
OD=28
OD=45
OD=50
11116EPLUG, TIGHT, NO.5
OD=25
OD=40
11117APLUG, W/HEAD TAPER SCREW, NO.1
11122BUSH, INTAKE VALVE GUIDE
STD,STD
STD,STD
STD,STD
STD,STD
STD
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD,STD
STD,STD
STD
O/S 0.05,O/S 0.05
STD,STD
O/S 0.05,O/S 0.05
11201COVER SUB-ASSY, CYLINDER HEAD
sub11201-17020
sub11201-35031
sub11201-35032
sub11201-35020
sub11201-56101
sub11201-61050
sub11211-56031
sub11213-56012
sub11278-77010
sub11293-56012
sub11293-56040
sub11293-57010
sub11293-57030
sub11293-58010
sub12180-70010
sub90210-12001
12108AGASKET(FOR OIL FILLER CAP)
1302
1701
1709
20 parts on this diagram · 11 diagrams in section
