ENGINE OVERHAUL GASKET KIT

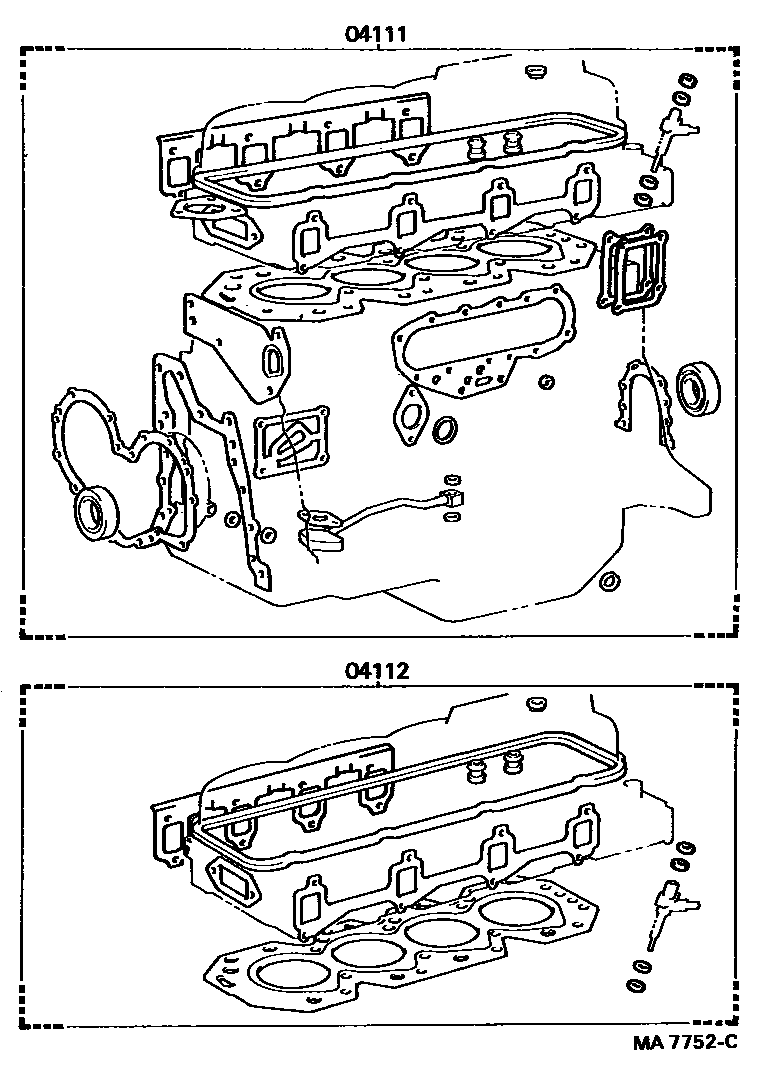

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-17010i¥54,900199001-199301

sub04111-17011¥54,900

main04111-17020i¥40,600199001-199301

main04111-35021i¥26,000198205-198208

sub04111-35022¥25,600

main04111-35022i¥25,600198208-198408

sub04111-35180¥28,400

main04111-35040i¥30,800198408-198411

sub04111-35042¥30,800

main04111-35120i¥31,000198411-199301

sub04111-35121¥30,600

main04111-35140i¥23,600198603-199301

CHINA SPEC

sub04111-35300¥30,700

main04111-56060i¥25,700198808-199301

main04111-58012i¥51,400198205-198308

sub04111-58013¥48,600

main04111-58013i¥48,600198308-198408

sub04111-58015¥48,900

main04111-58020i¥47,100198510-198808

sub04111-58021¥47,100

main04111-58040i¥47,100198408-198808

sub04111-58041¥47,100

main04111-58060i¥37,600198808-199301

sub04111-58061¥37,500

main04111-61051i¥46,000198610-198703

sub04111-61054¥46,000

main04111-61052i¥46,200198703-199001

sub04111-61055¥46,200

main04111-61055i¥46,200199001-199103

sub04111-61058¥45,700

main04111-61058i¥45,700199103-199301

main04111-68020i¥56,000198610-199001

sub04111-68021¥54,700

main04111-68030i¥60,500198610-199001

sub04111-68031¥60,500

04112GASKET KIT, ENGINE VALVE GRIND

main04112-17010i¥15,700199001-199301

sub04112-17011¥17,400

main04112-17020i¥20,500199001-199301

main04112-35011i¥16,200198205-198208

sub04112-35012¥16,100

main04112-35012i¥16,100198208-198408

sub04112-35170¥17,400

main04112-35030i¥18,300198408-198411

sub04112-35032¥18,300

main04112-35110i¥18,400198411-199301

sub04112-35111¥18,300

main04112-35130i198603-198802

CHINA SPEC

sub04112-35280¥18,400

main04112-35280i¥18,400198802-199301

CHINA SPEC

sub04112-35281¥18,400

main04112-56050i¥11,900198808-199301

main04112-58010i¥25,600198205-198308

sub04112-58011¥25,500

main04112-58011i¥25,500198308-198408

sub04112-58013¥24,100

main04112-58020i¥28,600198510-198808

sub04112-58021¥28,400

main04112-58040i¥31,800198408-198808

sub04112-58041¥31,800

main04112-58050i¥23,600198808-199301

sub04112-58051¥23,600

main04112-61050i¥28,600198610-199301

sub04112-61051¥28,400

main04112-68020i¥33,400198610-199001

sub04112-68021¥33,400

main04112-68030i¥38,700198610-199001

sub04112-68031¥38,700

2 parts on this diagram · 7 diagrams in section
