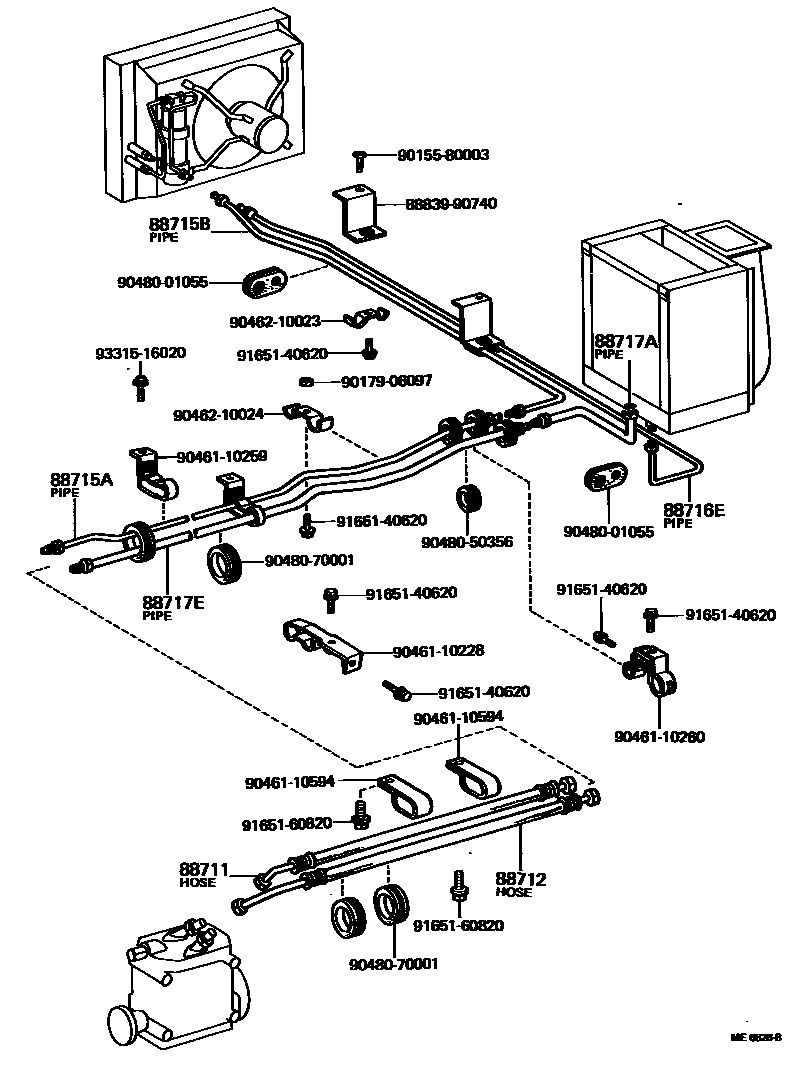

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-36070iBB10,RB11..BC197708-197807

sub88711-36071

sub88711-36090

sub90461-10594

sub91651-60820

main88711-36071iRB11,13..BC197807-198204

main88711-36090iBB10..BC197807-198204

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-36080iBB10,RB11,13..BC197708-198102

main88712-36081iRB13..BC198102-198204

main88712-36090iBB10..BC198010-198102

main88712-36091iBB10..BC198102-198204

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-36040iBB10,RB11..BC197708-198204

main88715-36060iRB1#..BC197911-198204

88715BPIPE, COOLER REFRIGERANT DISCHARGE, B

main88715-36050iBB10,RB11,13..BC197708-198204

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-36100iBB10,RB11,13..BC197708-198204

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-36090iBB10,RB11,13..BC197708-198204

88717EPIPE, COOLER REFRIGERANT SUCTION, E

main88717-36080iBB10,RB11..BC197708-198204

main88717-36100iRB1#..BC197911-198204

8883990740

main88839-90740

9015580003

main90155-80003

9017906097

main90179-06097

9046110228

main90461-10228

9046110259

main90461-10259

9046110260

main90461-10260

9046110594

main90461-10594

9046210023

main90462-10023

9046210024

main90462-10024

9048001055

main90480-01055

9048050356

main90480-50356

9048070001

main90480-70001

9165140620

main91651-40620

9165160820

main91651-60820

9331516020

main93315-16020

22 parts on this diagram · 2 diagrams in section
