HEATING & AIR CONDITIONING - WATER PIPING

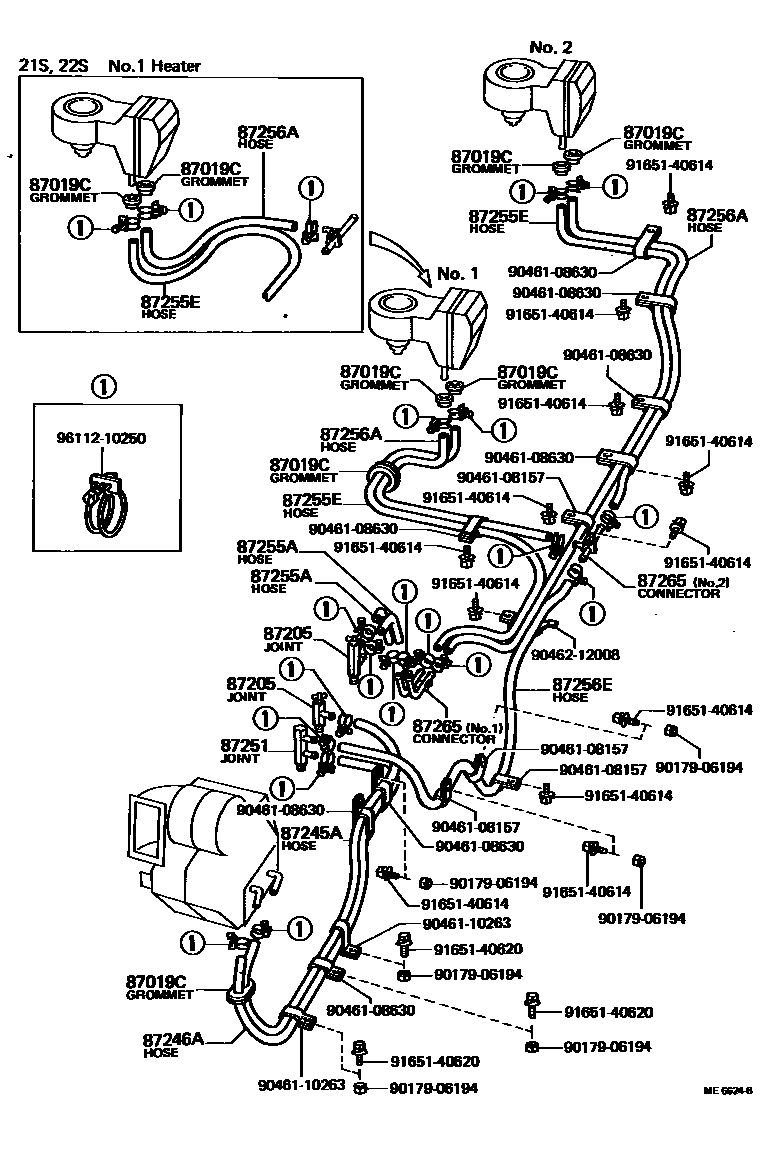

Parts diagram
87019CGROMMET, HEATER HOSE
main90480-01059i197708-198204
FR HEATER
main90480-20005i197708-198204
OD=24,RR HEATER
main90480-69217i197708-198204
OD=60,RR,NO.1 HEATER
87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE
main87206-60100i197708-197805
FR
sub87206-60101
main87206-60101i197805-197908
FR
main87240-36040i197708-197805
RR
sub87240-36041
main87240-36041i197805-198204
RR
main87240-36050i197708-197805
FR
sub87240-36051
main87240-36051i197805-198204
FR
main87240-36060i197708-197805
RR
sub87240-36061
main87240-36061i197805-197808
RR
main87240-36062i197808-197911
RR
main87240-36063i197911-198204
RR
main87240-55010i197708-197805
FR
sub87240-55011
main87240-55011i197805-197911
FR
87245AHOSE, HEATER WATER, INLET A
main87209-36160i197708-198008
main87209-36161i198008-198204
main87209-36170i197708-197911
sub87209-36171
main87209-36171i197911-198008
main87209-36172i198008-198204
main87209-36230i197911-198204
main87209-36240i197911-198204
sub87209-36230
main87245-36080i197708-197911
sub99552-33400
main87245-36090i197708-197911
sub87209-36230
main99552-32100i197708-197911
L=2100
sub99556-33000
main99552-32200i197712-197911
L=2200
sub99556-33000
main99552-32300i197708-197712
L=2300
sub99556-33000
87246AHOSE, HEATER WATER, OUTLET A
main87209-36130i197708-197911
sub87209-36131
main87209-36131i197911-198204
main87209-36140i197708-197911
sub87209-36141
main87209-36141i197911-198204
main87245-36080i197708-197911
sub99552-33400
main87245-36100i197708-197911
sub99552-32200
main99552-31550i197708-197912
L=1550
sub99552-32000
main99552-32000i197912-198204
*H,L=1550
sub99556-32000
main99552-32100i197708-197911
L=2100
sub99556-33000
main99552-32200i197911-197912
L=2200
sub99556-33000
main99552-33400i197912-198204
*H,L=2500
sub99556-36000
87251JOINT OR UNION, WATER HOSE THROUGH
main87252-36080i197708-198204
87255ADAPTER, WATER HOSE JOINT
main87251-36070i197708-197908
main87251-36071i197908-198008
main87251-36072i198008-198204
87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
main87209-36150i197708-197911
main87245-36060i197708-198204
main87245-36140i197911-198204
main99552-30350i197708-197911
L=350
sub99552-30500
main99552-30500i197708-197911
L=500
sub99556-30500
87255EHOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
main87245-36110i197708-198204
RR,NO.1 HEATER
sub87245-30331
main87245-36110i197911-198204
RR,NO.2 HEATER
sub87245-30331
main99552-31060i197708-197911
L=1060,RR,NO.1 HEATER
main99552-31260i197712-197912
L=1260,RR,NO.1 HEATER
main99552-31400i197708-197712
L=1400,RR,NO.1 HEATER
main99552-31550i197708-197912
L=1550,RR,NO.1 HEATER
sub99552-32000
main99552-31700i197708-197911
L=1700,RR,NO.1 HEATER
main99552-31800i197712-197911
L=1800,RR,NO.1 HEATER
sub99552-32000
main99552-31900i197804-197911
L=1900,RR,NO.1 HEATER
sub99552-32000
main99552-32000i197912-198204
*H,L=1550,RR NO.1 HEATER
sub99556-32000
main99552-32000i197912-198204
*H,L=1260,RR NO.1 HEATER
sub99556-32000
main99552-32000i197911-198204
*H,L=2000,RR NO.1 HEATER
sub99556-32000
main99552-32100i197708-197712
L=2100,RR,NO.1 HEATER
sub99556-33000
main99552-32200i197708-197712
L=2200,RR,NO.1 HEATER
sub99556-33000
main99552-32750i197712-197911
L=2750,RR,NO.2 HEATER
sub99556-33000
main99552-33000i197708-197912
L=3000,RR,NO.2 HEATER
sub99556-33000
main99552-33400i197912-198204
*H,L=2500,RR NO.2 HEATER
sub99556-36000
87256AHOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
main87245-36110i197911-198204
RR,NO.2 HEATER
sub87245-30331
main87245-36110i197708-198204
RR,NO.1 HEATER
sub87245-30331
main99552-30700i197712-197911
L=700,RR,NO.1 HEATER
sub99556-30700
main99552-30860i197708-197712
L=860,RR,NO.1 HEATER
sub99552-31000
main99552-30960i197712-197912
L=960,RR,NO.1 HEATER
sub99552-31000
main99552-30960i197911-197912
L=960,RR. NO.1 HEATER
sub99552-31000
main99552-31000i197912-198204
*H,L=960,RR NO.1 HEATER
sub99556-31000
main99552-31060i197708-197712
L=1060,RR,NO.1 HEATER
main99552-31260i197708-197912
L=1260,RR,NO.1 HEATER
main99552-32000i197911-198204
*H,L=2000,RR NO.1 HEATER
sub99556-32000
main99552-32000i197912-198204
*H,L=1260,RR NO.1 HEATER
sub99556-32000
main99552-32100i197808-197911
L=2100,RR,NO.1 HEATER
sub99556-33000
main99552-32100i197712-197911
L=2100,RR,NO.2 HEATER
sub99556-33000
main99552-32200i197708-197912
L=2200,RR,NO.2 HEATER
sub99556-33000
main99552-33000i197804-197911
L=3000,RR,NO.1 HEATER
sub99556-33000
main99552-33200i197712-197808
L=3200,RR,NO.1 HEATER
sub99556-36000
main99552-33400i197708-198204
*H,L=2500,RR NO.2 HEATER
sub99556-36000
87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
main87209-36200i197911-198204
main87245-36160i197911-198204
main99552-31700i197708-197911
L=1700
main99552-31800i197712-197911
L=1800
sub99552-32000
main99552-31900i197708-197712
L=1900
sub99552-32000
87265CONNECTOR, HEATER WATER HOSE
main87251-36100i197708-197911
3 WAY,NO.2
sub87251-36101
main87251-36101i197911-198204
3 WAY,NO.2
main87251-36110i197708-198204
3 WAY,NO.2
main87251-36120i197708-197911
4 WAY,NO.1
main87251-36150i197708-197911
3 WAY,NO.1
main87265-36070i197911-198204
3 WAY & 2 WAY,NO.1
9017906194
main90179-06194
9046108157
main90461-08157
9046108630
main90461-08630
9046110263
main90461-10263
9046212008
main90462-12008
9165140614
main91651-40614
9165140620
main91651-40620
9611210250
main96112-10250

19 parts on this diagram · 22 diagrams in section
