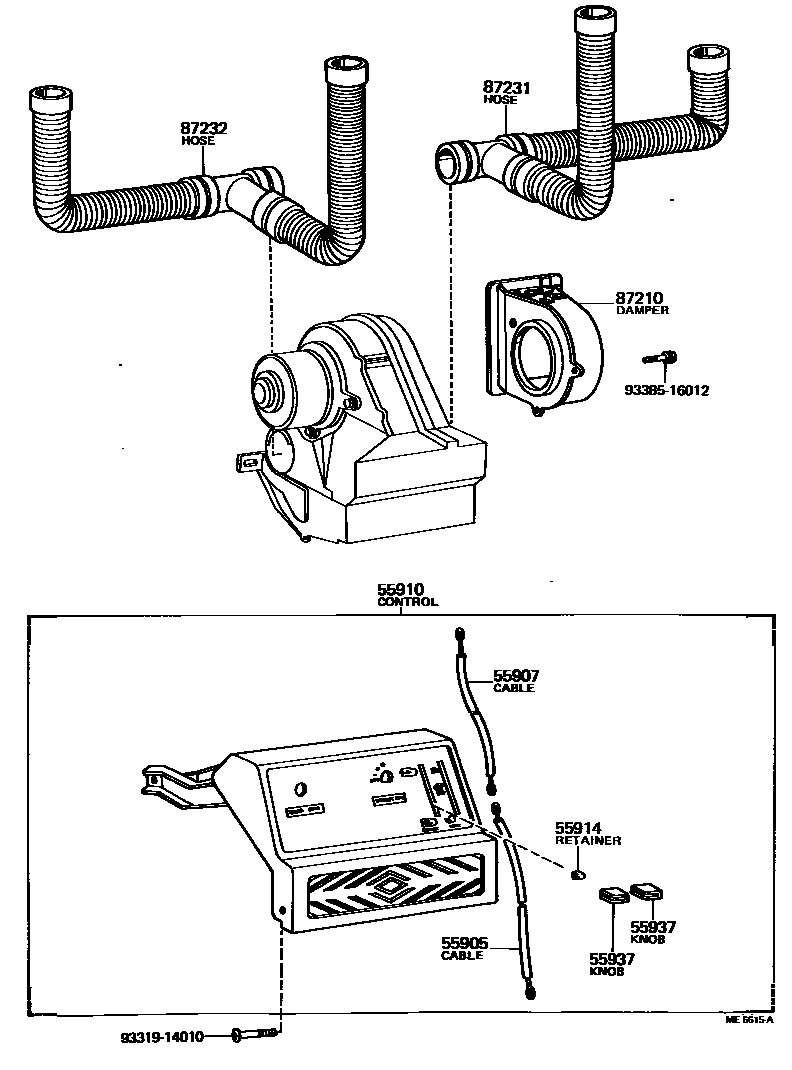

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55905CABLE SUB-ASSY, DEFROST CONTROL

main55906-36011iBB10,RB1#..RHD197708-198204

main55906-36021iBB10,RB1#..LHD197708-198204

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main55908-36011iBB10,RB1#..RHD197708-198204

main55908-36021iBB10,RB1#..LHD197708-198204

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-36050iBB10,RB1#..RHD197708-198204

main55910-36060iBB10,RB1#..LHD197708-198204

55914RETAINER, HEATER CONTROL KNOB

main55918-30020iBB10,RB1#197708-198204

55937KNOB, HEATER CONTROL LEVER

main55925-30020iBB10,RB1#197708-198204

87210DAMPER ASSY, AIR

main87210-36010iBB10,RB1#..RHD197708-198204

main87210-36020iBB10,RB1#..LHD197708-198204

87231HOSE, HEATER DEFROSTER, RH

main87231-36061iBB10,RB1#..RHD197708-198204

main87231-36071iBB10,RB1#..LHD197708-198204

87232HOSE, HEATER DEFROSTER, LH

main87232-36052iBB10,RB1#..RHD197708-198204

sub87232-36070

main87232-36072iBB10,RB1#..LHD197708-198204

9331914010

main93319-14010

9338516012

main93385-16012

10 parts on this diagram · 2 diagrams in section
