ANTENNA

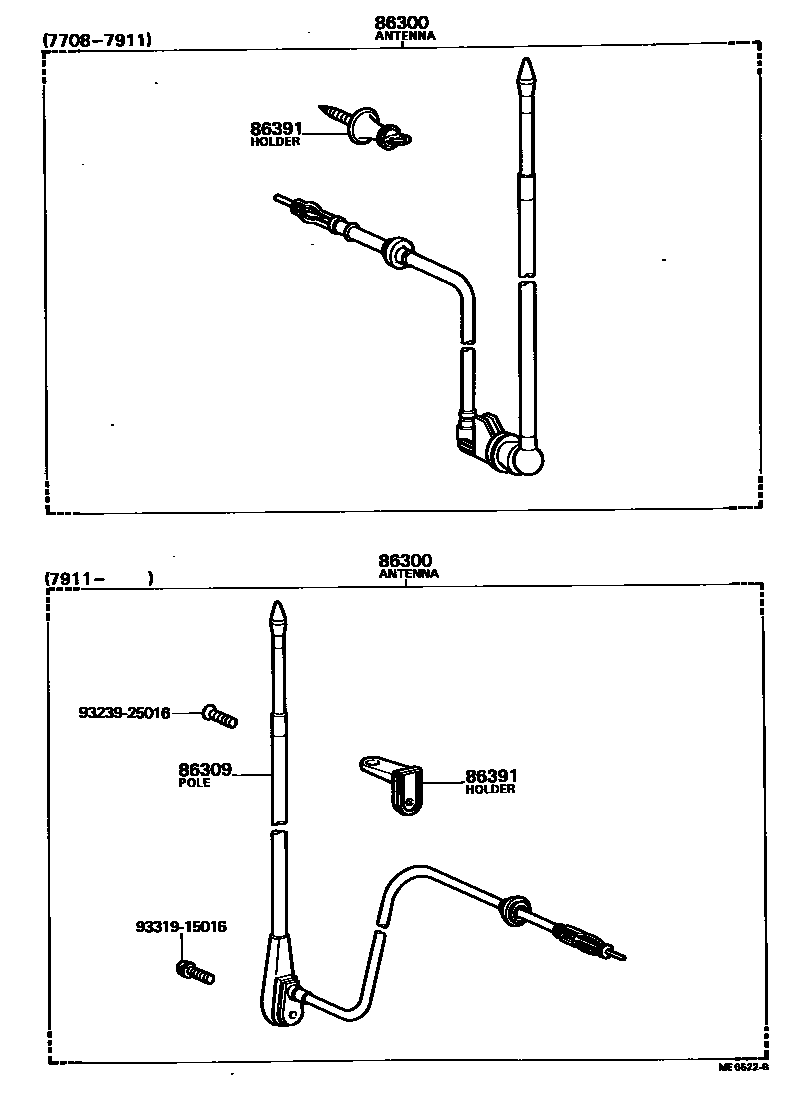

Parts diagram

86300ANTENNA ASSY, W/HOLDER

main86300-25011i197708-197911

main86300-25020i197911-198204

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-25010i197911-198204

86391HOLDER, ANTENNA

main86391-25011i197708-197911

main86391-27011i197911-198204

9323925016

main93239-25016

9331915016

main93319-15016

5 parts on this diagram · 1 diagram in section
