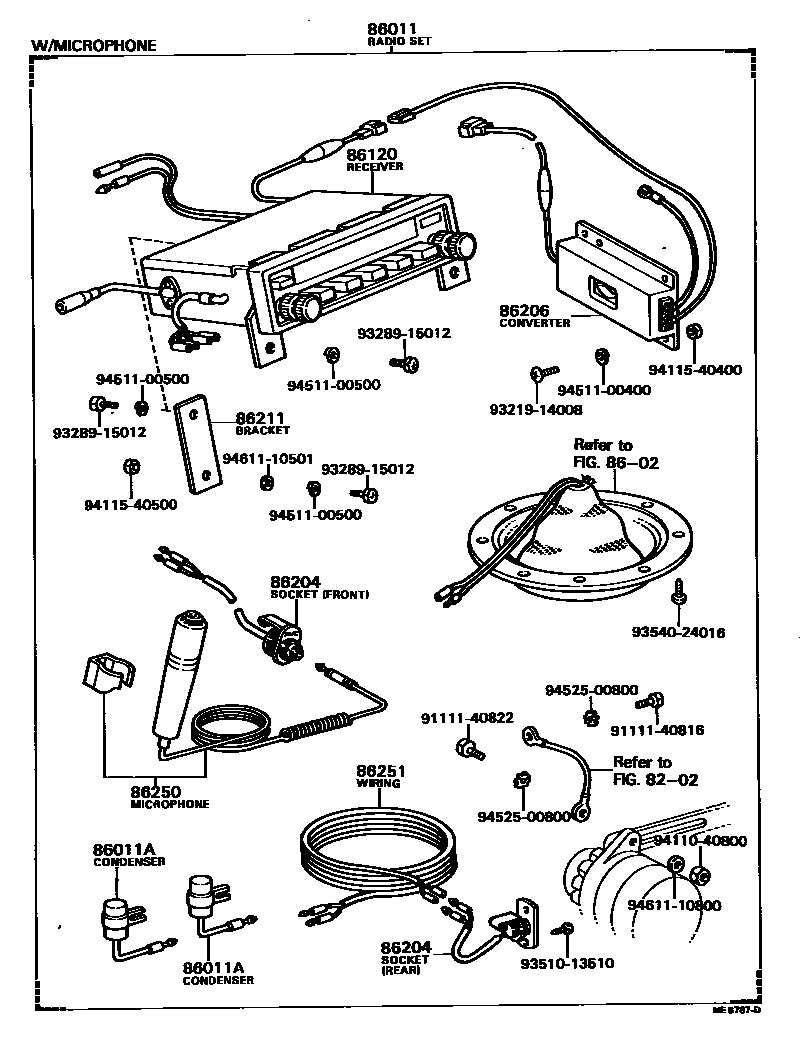

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

8202

86011RADIO & SETTING PARTS SET

main86011-36022iRB11;BB10,RB10..DLX,STD197708-197710

12V,W/MICROPHONE,AM(MW)

main86011-36023iRB11;BB10,RB10..DLX,STD197710-197911

12V,W/MICROPHONE,AM(MW)

main86011-36032iBB10197708-197710

24V,W/MICROPHONE,AM(MW)

main86011-36033iBB10..GEN197710-198204

24V,W/MICROPHONE,AM(MW)

main86011-36071iRB11..GEN197709-197911

12V W/MICROPHONE,MW/SW.

main86011-36071iRB11..GEN197709-197911

12V,W/MICROPHONE,MW/SW.

main86011-39095iRB1#;BB10..DLX,STD197911-198204

12V,W/MICROPHONE,AM(MW)

main86011-39105iRB1#..LHD197911-198204

12V W/MICROPHONE,MW/SW.

86011ACONDENSER, RADIO SETTING

main90980-04006iRB11;BB10,RB10..DLX,STD197708-197911

IGNITION COIL

sub90980-04032

main90980-04010iBB10,RB1#197708-198204

REGULATOR

main90980-04021iRB1#;BB10..DLX,STD197911-198204

IGNITION COIL

8602

86120RECEIVER ASSY, RADIO

main86120-36021iBB10,RB1#197708-197710

W/MICROPHONE,AM(MW)

main86120-36022iBB10,RB1#197710-198204

W/MICROPHONE,AM(MW)

main86120-36041iRB1#..LHD197709-198204

12V,W/MICROPHONE,MW/SW

86204SOCKET SUB-ASSY, AMPLIFIER MICROPHONE

main86204-36011iBB10,RB1#197708-198204

FR

main86204-36020iBB10,RB1#197708-198204

RR

86206CONVERTER SUB-ASSY, VOLTAGE

main86206-36010iBB10197708-197710

24V

main86206-36011iBB10..GEN197710-198204

24V

86211BRACKET, RADIO, NO.1

main86211-36011iBB10,RB1#197708-198204

86250MICROPHONE ASSY, AMPLIFIER

main86250-36010iBB10,RB1#197708-198204

86251WIRING, AMPLIFIER MICROPHONE

main86251-36010iBB10,RB1#197708-198204

9111140816

main91111-40816

9111140822

main91111-40822

9321914008

main93219-14008

9328915012

main93289-15012

9351013510

main93510-13510

9354024016

main93540-24016

9411040800

main94110-40800

9411540400

main94115-40400

9411540500

main94115-40500

9451100400

main94511-00400

9451100500

main94511-00500

9452500800

main94525-00800

9461110501

main94611-10501

9461110800

main94611-10800

9828915012

main98289-15012

25 parts on this diagram · 3 diagrams in section
