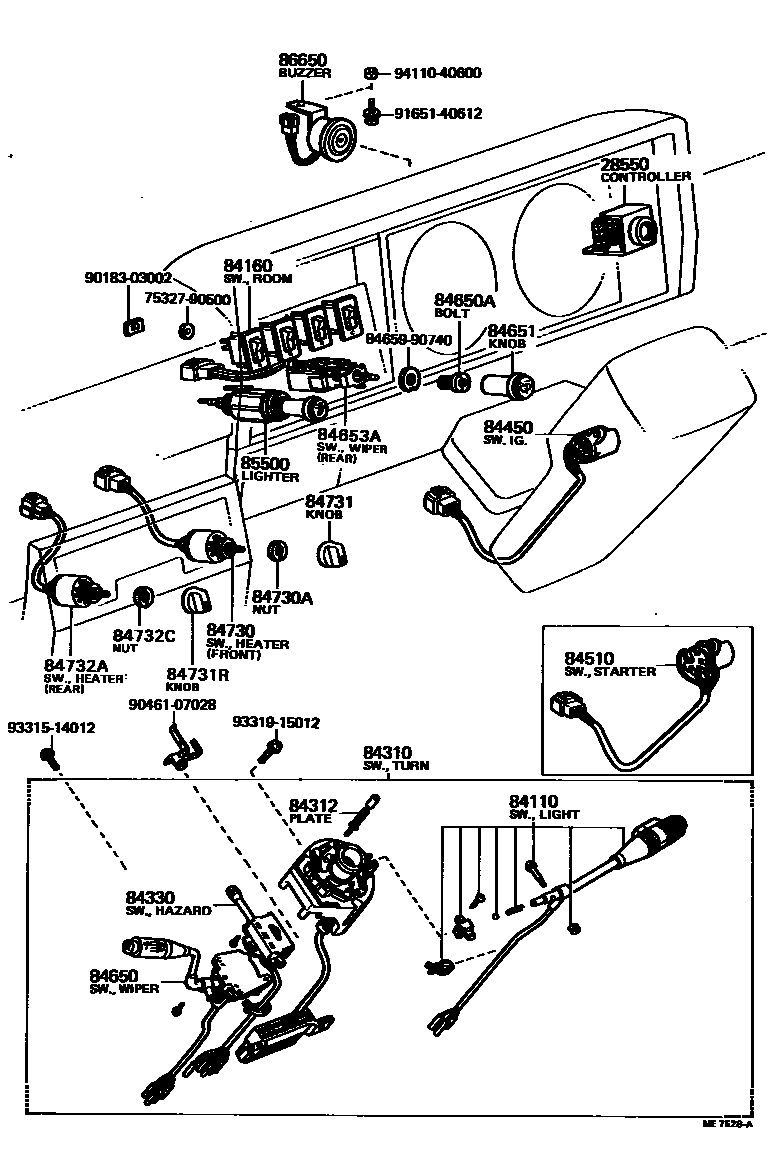

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

28550CONTROLLER ASSY, GLOW PLUG

main28550-46021i2B..BB10..DLX,STD197708-198008

12V

main28550-46031i2B..BB10..21S,22S,25S,26S197708-198008

24V

main28550-57010i2B..BB10..DLX,STD198008-198204

12V

main28550-57020i2B..BB10..BC198008-198204

24V

84110SWITCH ASSY, LIGHT CONTROL, NO.1

main84112-39015iBB10,RB1#..RHD197708-198008

sub84112-39016

main84112-39016iBB10,RB13..RHD198008-198204

main84112-39025iBB10,RB1#..LHD197708-198008

sub84112-39026

main84112-39026iBB10,RB13..LHD198008-198204

84160SWITCH ASSY, ROOM LAMP

main84730-60020iBB10,RB10,11197708-198204

84310SWITCH ASSY, TURN SIGNAL

main84310-36090iBB10,RB1#..RHD197708-197911

sub84310-36091

main84310-36100iBB10,RB11..RHD197708-197911

W/INTERMITTENT WIPER

sub84310-36101

main84310-36110iBB10,RB1#..LHD197708-197911

sub84310-36111

main84310-36120iBB10,RB11..LHD197708-197911

W/INTERMITTENT WIPER

sub84310-36121

main84310-36150iBB10,RB11..RHD197911-198008

sub84310-36151

main84310-36151iBB10,RB13..RHD198008-198204

main84310-36160iBB10,RB11..RHD197911-198008

W/INTERMITTENT WIPER

sub84310-36161

main84310-36161iBB10,RB13..RHD198008-198204

W/INTERMITTENT WIPER

main84310-36170iBB10,RB11..LHD197911-198008

sub84310-36171

main84310-36171iBB10,RB13..LHD198008-198204

main84310-36180iBB10,RB11..LHD197911-198008

W/INTERMITTENT WIPER

sub84310-36181

main84310-36181iBB10,RB13..LHD198008-198204

W/INTERMITTENT WIPER

84312PLATE, HORN CONTACT

main84312-20011iBB10,RB1#197708-198204

84330SWITCH ASSY, HAZARD WARNING SIGNAL

main84332-39015iBB10,RB1#..RHD197708-198204

main84332-39025iBB10,RB1#..LHD197708-198204

84450SWITCH ASSY, IGNITION OR STARTER

main84450-14021iRB1#..RHD197708-198204

main84450-36020iRB1#..LHD197708-197911

84510SWITCH ASSY, STARTER

main84510-36071iBB10..RHD197708-198002

sub84510-36072

main84510-36072iBB10198002-198204

main84510-36091iBB10..LHD197708-197911

sub84510-36092

84650SWITCH ASSY, WINDSHIELD WIPER

main84652-36010iBB10,RB1#..RHD197708-197911

sub84652-36011

main84652-36020iBB10,RB11..RHD197708-197911

W/INTERMITTENT WIPER

sub84652-36021

main84652-36030iBB10,RB1#..LHD197708-197911

sub84652-36031

main84652-36040iBB10,RB11..LHD197708-197911

W/INTERMITTENT WIPER

sub84652-36041

main84652-36070iBB10,RB11..RHD197911-198008

sub84652-36071

main84652-36071iBB10,RB13..RHD198008-198204

main84652-36080iBB10,RB11..RHD197911-198008

W/INTERMITTENT WIPER

sub84652-36081

main84652-36081iBB10,RB13..RHD198008-198204

W/INTERMITTENT WIPER

main84652-36090iBB10,RB11..LHD197911-198008

sub84652-36091

main84652-36091iBB10,RB13..LHD198008-198204

main84652-36100iBB10,RB11..LHD197911-198008

W/INTERMITTENT WIPER

sub84652-36101

main84652-36101iBB10,RB13..LHD198008-198204

W/INTERMITTENT WIPER

84650ABOLT OR NUT, WINDSHIELD WIPER SWITCH SET

main90984-01007iBB10,RB1#..(BC,DLX)..(GEN,IRQ)197708-198204

RR WIPER

84651KNOB, WINDSHIELD WIPER SWITCH

main84651-21010iBB10,RB1#..(BC,DLX)..(GEN,IRQ)197708-198204

RR WIPER

84653ASWITCH, REAR WIPER

main84653-12010iBB10,RB1#..(BC,DLX)..(GEN,IRQ)197708-198204

sub84653-21010

84730SWITCH ASSY, HEATER BLOWER

main84732-36010iBB10,RB1#197708-198204

84730ANUT, HEATER BLOWER SWITCH

main90179-10155iBB10,RB1#197708-198204

84731KNOB, HEATER BLOWER SWITCH

main84731-12010iBB10,RB1#197708-198204

84731RKNOB, REAR HEATER BLOWER SWITCH

main84731-12010iBB10,RB1#197708-198204

84732ASWITCH, REAR HEATER BLOWER

main84732-36020iBB10,RB1#197708-198204

84732CNUT, REAR HEATER BLOWER SWITCH

main90179-10155iBB10,RB1#197708-198204

85500LIGHTER ASSY, CIGARETTE

main85500-20042iBB10,RB1#197708-198204

86650BUZZER ASSY, VACUUM INDICATOR

main86650-25030iBB10..DLX,STD197708-198204

12V

main86650-25040iBB10..GEN197708-198204

24V

7532790500MARK, FRONT DOOR, RH

main75327-90500

8465990740BRACKET, REAR WIPER SWITCH

main84659-90740

9018303002

main90183-03002

9046107028

main90461-07028

9165140612

main91651-40612

9331514012

main93315-14012

9331915012

main93319-15012

9411040600

main94110-40600

28 parts on this diagram · 4 diagrams in section
