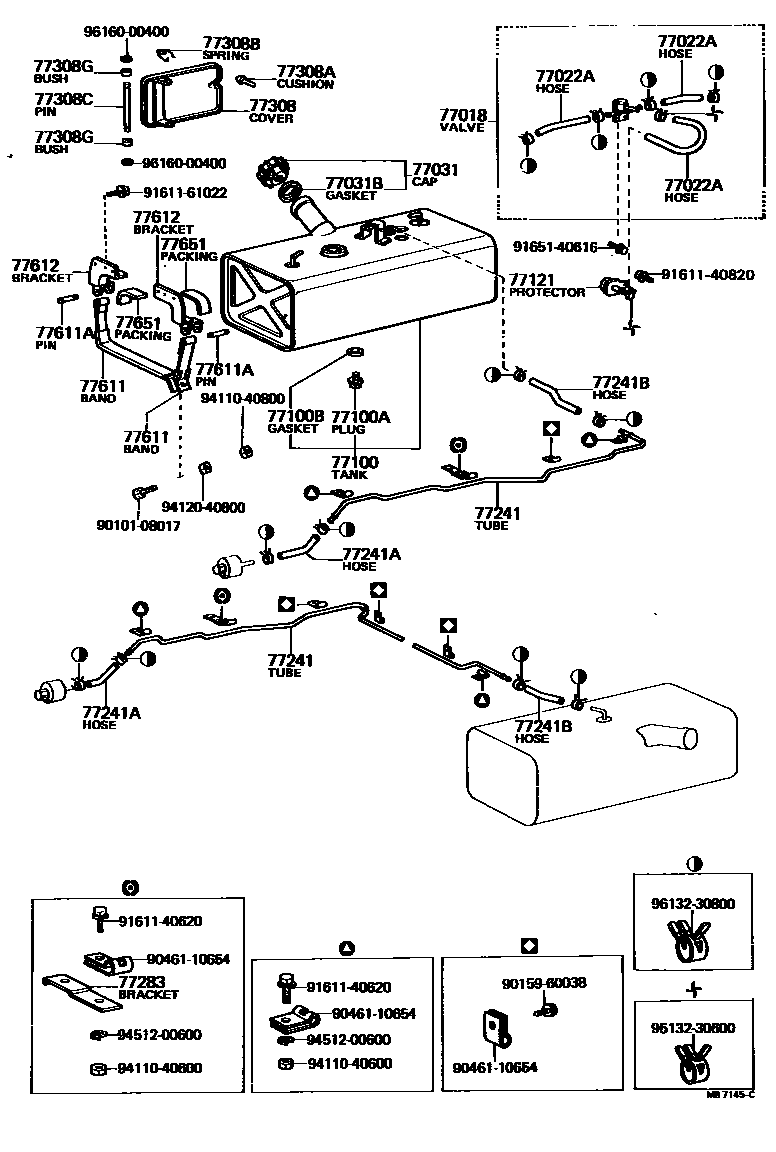

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-36071iBB10,RB1#197708-198204

main77018-36090iRB1#..ARL197911-198204

sub77018-36100

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06034iBB10,RB1#197708-197904

L=400(*H,L=340)

sub95332-06040

main95332-06040iBB10;RB1#..GEN197911-198204

L=400(*H,L=380)

sub95333-06040

main95332-06040iBB10,RB1#197904-198204

L=400(*H,L=340)

sub95333-06040

main95332-08028iBB10,RB1#197708-197904

L=300(*H,L=220)

sub95332-08030

main95332-08030iBB10,RB1#197904-198204

L=300(*H,L=220)

sub95333-08030

77031CAP ASSY, FUEL TANK

main77310-12041iRB1#197708-198204

main77310-55080iBB10197708-198204

sub77310-60100

77031BGASKET (FOR FUEL TANK CAP)

main77316-12040iRB1#197708-198204

main77316-27010iBB10197708-198204

77100TANK ASSY, FUEL

main77001-36251iBB10,RB10197708-198204

main77001-36340iRB1#197911-198204

main77001-36909iRB11197708-197911

77100APLUG(FOR FUEL TANK)

main90105-12018iBB10,RB1#197708-198204

77100BGASKET(FOR FUEL TANK)

main90430-12245iBB10,RB1#197708-198204

77121PROTECTOR, FUEL TUBE

main77243-36010iBB10,RB10;RB11,13..GEN197708-198204

main77258-36010iRB11,13..ARL197708-198204

77241TUBE, FUEL MAIN, NO.1

main77251-36233iRB1#..RHD197708-197911

main77251-36271iBB10..LHD197708-198004

main77251-36272iBB10..LHD198004-198204

main77251-36321iBB10..RHD197708-198004

main77251-36322iBB10..RHD198004-198204

main77251-36361iRB1#..LHD197708-197911

main77251-36550iBB10..RHD197911-198204

W/SEDIMENTER

main77251-36560iBB10..LHD197911-198204

W/SEDIMENTER

main77251-36570iRB1#..RHD197911-198204

main77251-36580iRB1#..LHD197911-198204

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-08020iBB10197911-198204

L=200(*H,L=110)

sub95333-08020

main95332-08020iBB10197708-198204

L=200

sub95333-08020

main95332-08020iRB1#197911-198204

L=200,W/SEDIMENTER

sub95333-08020

main95335-08017iRB1#197708-197911

L=170

sub95336-08020

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-08030iBB10,RB10197708-198204

L=300

sub95333-08030

main95335-08014iRB11..LHD197909-197911

L=140

sub95336-08020

main95335-08015iRB11..RHD197708-197911

L=150

sub95336-08020

77283BRACKET, FUEL TUBE

main77283-36040iBB10,RB1#197708-198008

main77283-36041iBB10,RB13198008-198204

77308COVER SUB-ASSY, FUEL INLET BOX

main58802-90502iBB10,RB1#..RHD197708-198204

main58802-90503iBB10,RB1#..LHD197708-198204

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05080iBB10,RB1#197708-198204

77308BSPRING, TORSION(FOR FUEL INLET BOX COVER)

main58827-90500iBB10,RB1#197708-198204

main58827-90501iBB10,RB13..LHD198110-198204

77308CPIN, STRAIGHT(FOR FUEL INLET BOX COVER)

main58824-90501iBB10,RB1#197708-198204

77308GBUSH(FOR FUEL INLET BOX COVER)

main58829-90500iBB10,RB1#197708-198204

77611BAND, FUEL TANK

main77601-36070iBB10,RB1#197708-198007

RH

sub77601-36071

main77601-36071iBB10,RB1#198007-198204

RH

main77602-36020iBB10,RB1#197708-198007

LH

sub77602-36021

main77602-36021iBB10,RB1#198007-198204

LH

77611APIN (FOR FUEL TANK BAND)

main77629-36010iBB10,RB1#197708-198204

77612BRACKET SUB-ASSY, FUEL TANK

main77501-36011iBB10,RB1#197708-198204

RH

main77502-36011iBB10,RB1#197708-198204

LH

77651PACKING, FUEL TANK BRACKET

main77651-36060iBB10,RB1#197708-198007

sub77651-36061

main77651-36061iBB10,RB1#198007-198204

9010108017

main90101-08017

9015960038

main90159-60038

9046110654

main90461-10654

9161140620

main91611-40620

9161140820

main91611-40820

9161161022

main91611-61022

9165140616

main91651-40616

9411040600

main94110-40600

9411040800

main94110-40800

9412040800

main94120-40800

9451200600

main94512-00600

9513230600

main95132-30600

9613230800

main96132-30800

9616000400

main96160-00400

35 parts on this diagram · 11 diagrams in section
