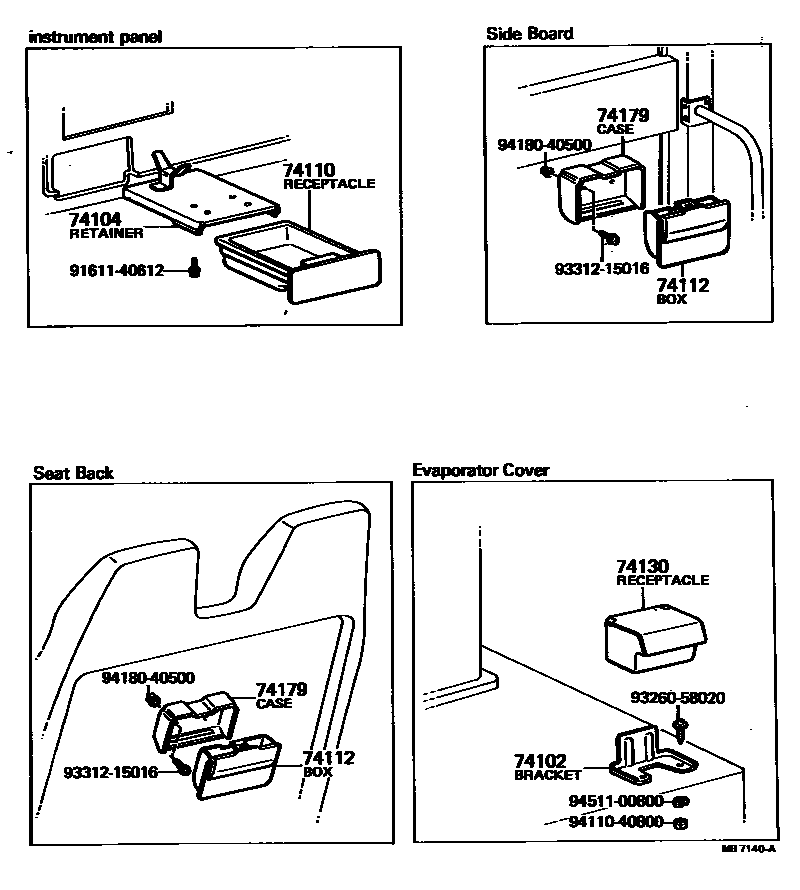

ASH RECEPTACLE

74102BRACKET SUB-ASSY, ASH RECEPTACLE

main64479-90740iBB10,RB11,13..BC..ARL197708-198204

EVAPORATOR COVER

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74140-90500iBB10,RB1#197708-197911

INSTRUMENT PANEL

sub74140-90501

main74140-90501iBB10,RB1#197911-198204

INSTRUMENT PANEL

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74110-90740iBB10,RB1#197708-198204

INSTRUMENT PANEL

sub74110-90501

74112BOX, ASH RECEPTACLE, NO.1

main74101-90501iBB10,RB1#197708-198204

SEAT BACK,SIDE BOARD

74130RECEPTACLE ASSY, REAR ASH

main74130-12030-16iRB11..BC..ARL197708-197911

EVAPORATOR COVER,LIGHT BROWN,BROWN

sub74130-20060

main74130-20060-05iBB10,RB1#..BC..ARL197911-198204

EVAPORATOR COVER,LIGHT BROWN,BEIGE

sub74130-16010

sub74130-20060

74179CASE, ASH RECEPTACLE

main74121-90501iBB10,RB1#197708-198204

SEAT BACK,SIDE BOARD

9161140612

main91611-40612

9326058020

main93260-58020

9331215016

main93312-15016

9411040800

main94110-40800

9418040500

main94180-40500

9451100800

main94511-00800

12 parts on this diagram · 1 diagram in section
