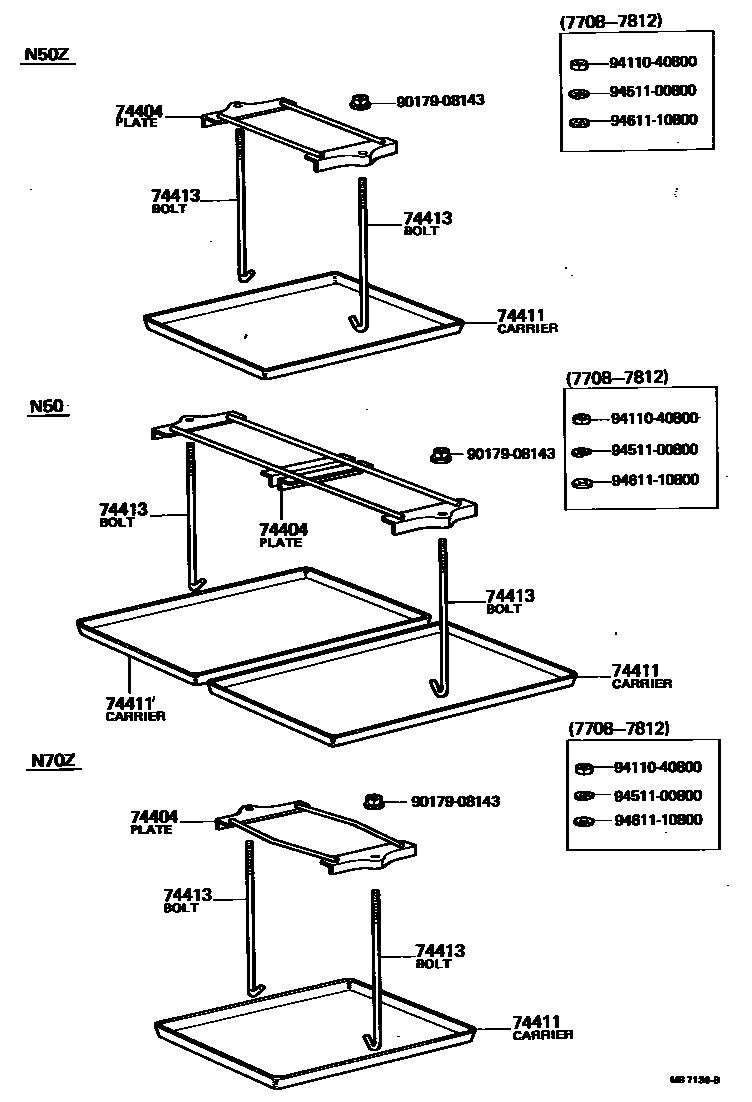

BATTERY CARRIER

74404PLATE SUB-ASSY, BATTERY SET

main58807-90740iBB10197708-198204

N50

main74404-60030iRB1#197708-197812

sub74404-60060

main74404-60050iBB10197708-197812

N70Z

sub74404-60060

main74404-90351iBB10197812-198204

N70Z

74411CARRIER, BATTERY

main57428-90740iRB1#;BB10..BC197708-198204

main57428-90741iBB10..DLX,STD197708-198204

74413BOLT, BATTERY CLAMP

main58849-90500iBB10,RB1#197708-198204

9017908143

main90179-08143

9411040800

main94110-40800

9451100800

main94511-00800

9461110800

main94611-10800

7 parts on this diagram · 1 diagram in section
