811210
›

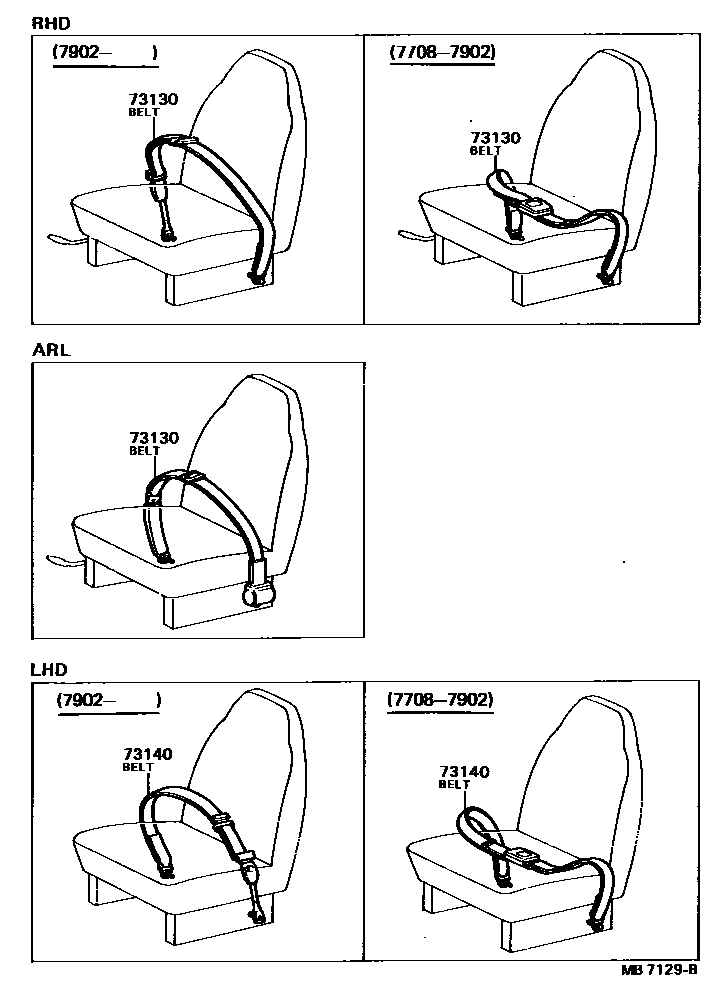

SEAT BELT
SEAT BELT
73130
BELT ASSY, FRONT SEAT LAP TYPE, RH
main
73210-90740
i
BB10,RB1#..RHD..GEN
197708-197902
sub
73210-90742
main
73210-90741
i
BB10,RB11..ARL
197708-197911
main
73210-90742
i
BB10,RB1#..RHD..GEN
197902-197911
main
73210-90743
i
BB10,RB1#..RHD..GEN
197911-198204
main
73210-90744
i
BB10,RB1#..ARL
197911-198204
73140
BELT ASSY, FRONT SEAT LAP TYPE, LH
main
73210-90740
i
BB10,RB1#..LHD
197708-197902
sub
73210-90742
main
73210-90742
i
BB10,RB1#..LHD
197902-197911
main
73210-90743
i
BB10,RB1#..LHD
197911-198204
2 parts on this diagram · 1 diagram in section
