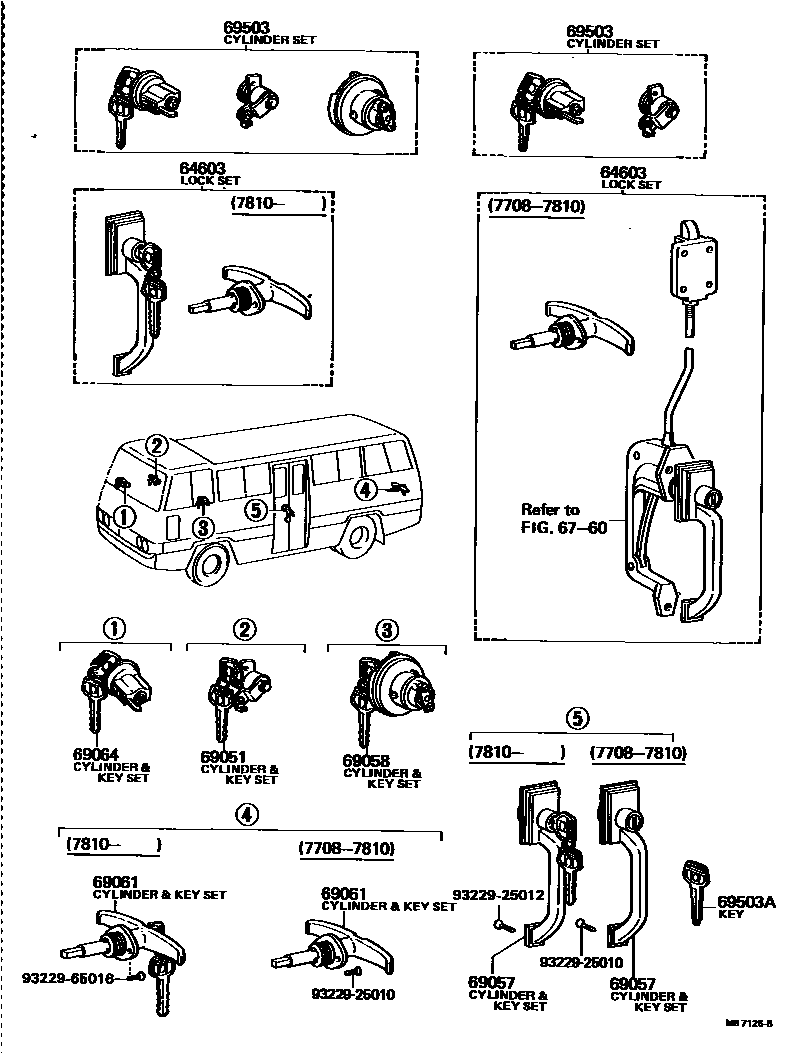

LOCK CYLINDER SET

0001 1 0002 1

64603LOCK SET, DOOR

main64603-90501iBB10,RB1#..RHD197708-197810

sub64603-90504

sub67206-90500

main64603-90502iBB10,RB1#..LHD197708-197810

sub64603-90504

sub67206-90501

main64603-90504iBB10,RB1#197810-198204

6760

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-36060iBB10,RB1#..RHD197708-198204

69057CYLINDER & KEY SET, CENTER DOOR LOCK

main64603-90505iBB10,RB1#197810-198204

main67207-90500iBB10,RB1#197708-197810

sub64603-90505

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-95400iRB1#197708-198204

sub69058-60071

main69058-95401iBB10197708-198204

sub69058-90B01

69061CYLINDER & KEY SET, LUGGAGE LOCK

main64607-90500iBB10,RB1#197810-198204

main64610-90500iBB10,RB1#197708-197810

sub64607-90500

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-90740iBB10..LHD197708-197911

W/O LOCK

main69057-90741iBB10..LHD197708-197911

W/LOCK

main69057-90742iRB1#..LHD197708-197911

main69057-95400iBB10197708-198204

W/LOCK

sub69057-90B00

main69057-95401iBB10..RHD197708-198204

W/O LOCK

main69057-95402iRB1#197708-198204

sub69057-90B01

69503CYLINDER SET, LOCK

main69005-90741iBB10..RHD197708-198204

main69005-90742iBB10..RHD197708-198204

W/FUEL TANK CAP LOCK

main69005-90745iBB10..RHD197708-198204

W/*STL

main69005-90746iBB10..RHD197708-198204

W/FUEL TANK CAP LOCK,*STL

main69005-90748iRB1#..RHD197708-198204

main69005-90749iRB1#..RHD197708-198204

W/FUEL TANK CAP LOCK

main69005-90750iBB10..LHD197708-197911

main69005-90751iBB10..LHD197708-197911

W/FUEL TANK CAP LOCK

main69005-90752iBB10..LHD197708-197911

W/*STL

main69005-90753iBB10..LHD197708-197911

W/FUEL TANK CAP LOCK,*STL

main69005-90754iRB1#..LHD197708-197911

main69005-90755iRB1#..LHD197708-197911

W/FUEL TANK CAP LOCK

main69005-90756iBB10..LHD197911-198204

main69005-90757iBB10..LHD197911-198204

W/FUEL TANK CAP LOCK

main69005-90758iBB10..LHD197911-198204

W/*STL

main69005-90759iBB10..LHD197911-198204

W/FUEL TANK CAP LOCK,*STL

main69005-90760iRB1#..LHD197911-198204

main69005-90761iRB1#..LHD197911-198204

W/FUEL TANK CAP LOCK

69503AKEY, BLANK

main90999-00066iRB1#197708-198204

MASTER KEY

sub90999-00085

main90999-00066iRB1#197708-198204

MASTER KEY,FUEL TANK CAP

sub90999-00085

main90999-00072iBB10197708-198204

MASTER KEY

main90999-00076iBB10,RB1#197708-198204

LUGGAGE & CENTER DOOR

9322925010

main93229-25010

9322925012

main93229-25012

9322965016

main93229-65016

12 parts on this diagram · 2 diagrams in section
