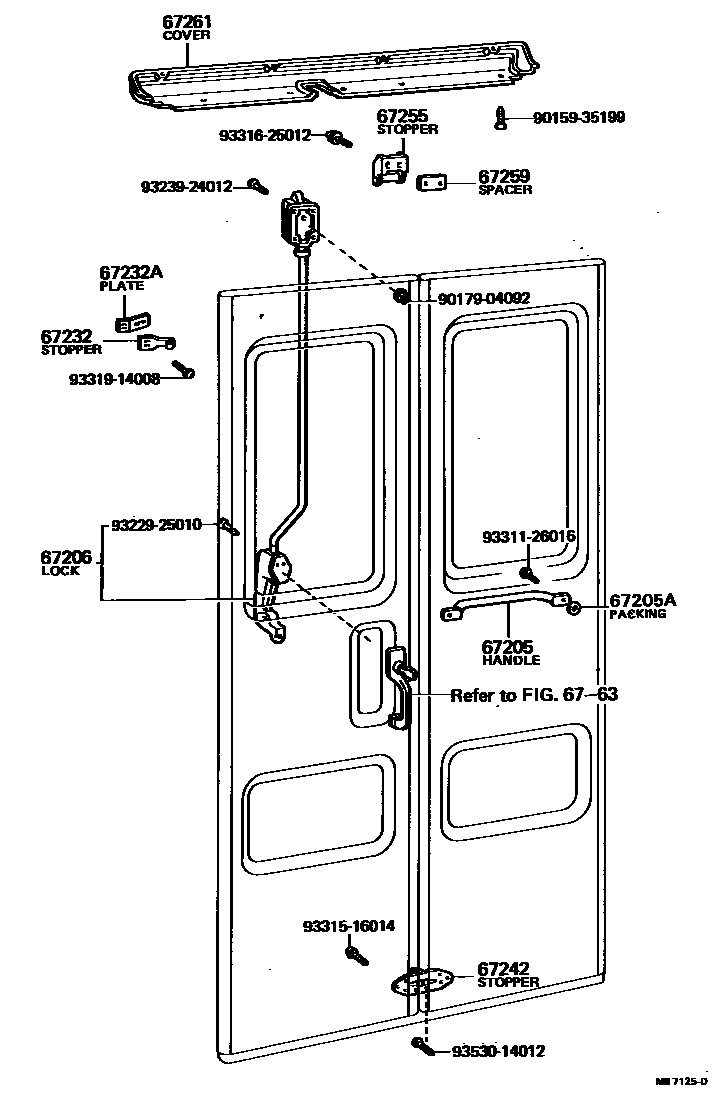

CENTER DOOR LOCK & HINGE

67205HANDLE SUB-ASSY, CENTER DOOR INSIDE PULL

main67251-90500iBB10,RB1#197708-198204

67205APACKING, CENTER DOOR INSIDE PULL HANDLE

main67133-90500iBB10,RB13198101-198204

67206LOCK SUB-ASSY, CENTER DOOR INSIDE HANDLE

main67206-90500iBB10,RB1#..RHD197708-198204

main67206-90501iBB10,RB1#..LHD197708-198204

67232STOPPER, CENTER DOOR OPEN

main67232-90504iBB10,RB1#..RHD197708-197810

main67232-90505iBB10,RB1#..LHD197708-197810

main67232-90506iBB10,RB1#..RHD197810-198204

main67232-90507iBB10,RB1#..LHD197810-198204

67232APLATE, CENTER DOOR OPEN STOPPER

main67277-90500iBB10,RB1#197708-197810

main67277-90501iBB10,RB1#197810-198204

67242STOPPER, CENTER DOOR, LOWER

main67217-90500iBB10,RB1#..RHD197708-198204

RR;FR

main67217-90501iBB10,RB1#..LHD197708-198204

RR

main67217-90501iBB10,RB1#..LHD197708-198204

FR

67255STOPPER, CENTER INSIDE LOCK

main67208-90500iBB10,RB1#197708-197911

main67208-90501iBB10,RB1#197911-198204

67259SPACER, CENTER DOOR INSIDE LOCK STOPPER, NO.2

main67259-90500iBB10,RB1#197708-198204

67261COVER, CENTER DOOR SLIDE RAIL

main67261-90740iBB10,RB1#..LHD197708-198204

main67261-90741iBB10,RB1#..RHD197708-198204

6763

9015935199

main90159-35199

9017904092

main90179-04092

9322925010

main93229-25010

9323924012

main93239-24012

9331126016

main93311-26016

9331516014

main93315-16014

9331625012

main93316-25012

9331914008

main93319-14008

9353014012

main93530-14012

19 parts on this diagram · 1 diagram in section
