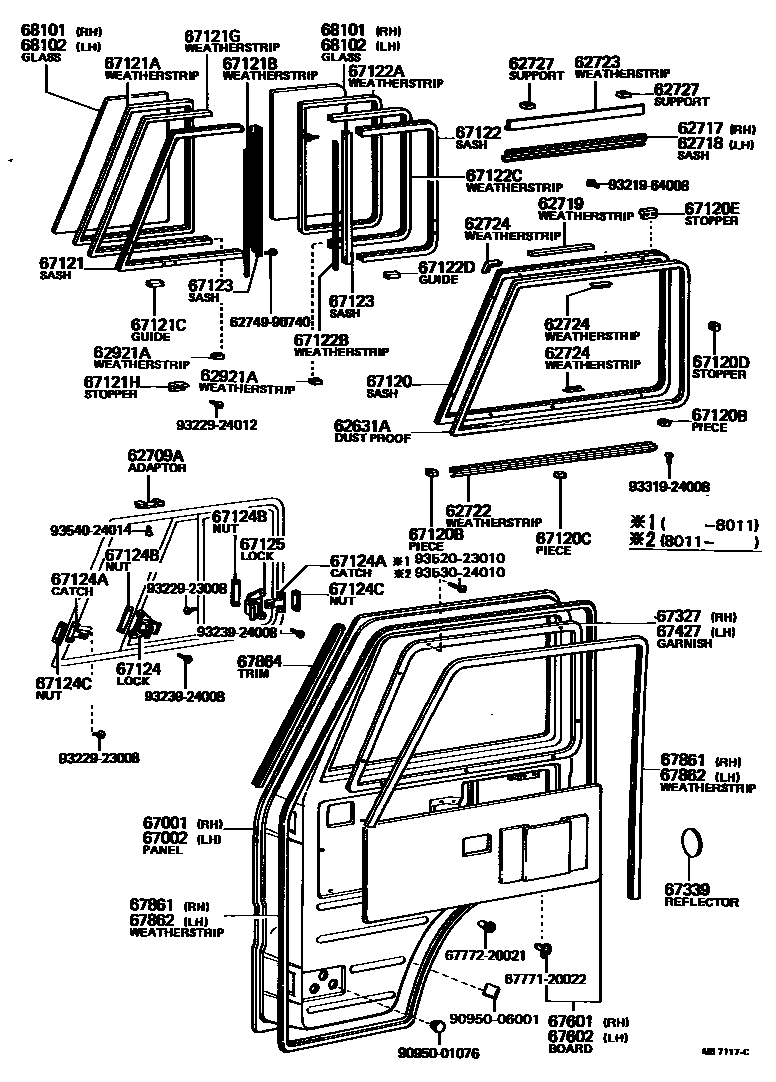

FRONT DOOR PANEL & GLASS

62631ADUST PROOF, FRONT DOOR WINDOW

main62919-90740iBB10,RB1#197708-198204

sub62792-90500

62709AADAPTER, FRONT DOOR WINDOW

main62762-90740×2iBB10,RB1#197708-198204

62717SASH, FRONT DOOR WINDOW WATER PROOF, RH

main62717-90740iBB10,RB1#..RHD197708-198204

62718SASH, FRONT DOOR WINDOW WATER PROOF, LH

main62718-90740iBB10,RB1#..LHD197708-198204

62719WEATHERSTRIP, FRONT DOOR WINDOW, UPPER

main62719-90740iBB10,RB1#197708-198204

62722WEATHERSTRIP, FRONT DOOR WINDOW WATER PROOF

main62722-90740iBB10,RB1#..RHD197708-198204

sub62772-90741

main62723-90740iBB10,RB1#..LHD197708-198204

62723WEATHERSTRIP, FRONT DOOR WINDOW WATER PROOF, UPPER

main62721-90740iBB10,RB1#197708-198204

sub62813-90740

62724WEATHERSTRIP, WATER PROOF

main62724-90740×2iBB10,RB1#197708-198204

UPR

main62725-90740iBB10,RB1#197708-198204

LWR

62727SUPPORT, FRONT DOOR WINDOW, UPPER

main62727-90740×2iBB10,RB1#197708-198204

62921AWEATHERSTRIP, RUN CHANNEL, LOWER

main62921-90500×2iBB10,RB1#197708-198204

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67301-90740iBB10,RB1#..RHD197708-197709

sub67304-90502

main67301-90742iBB10,RB1#..RHD197709-198204

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67401-90740iBB10,RB1#..LHD197708-197709

sub67404-90502

main67401-90742iBB10,RB1#..LHD197709-198204

67120SASH ASSY, FRONT DOOR OUTER

main62016-90740iBB10,RB1#..RHD197708-198204

main62017-90740iBB10,RB1#..LHD197708-198204

67120BPIECE, FRONT DOOR WINDOW WATER PROOF

main62726-90740×2iBB10,RB1#197708-198204

67120CPIECE, FRONT WINDOW WATER PROOF

main62729-90740iBB10,RB1#197708-198204

67120DSTOPPER, FRONT DOOR WINDOW

main62728-90740iBB10,RB1#197708-198204

67120ESTOPPER, FRONT DOOR WINDOW, REAR

main62733-90740iBB10,RB1#197708-198204

67121SASH, FRONT DOOR INNER, FRONT

main62076-90740iBB10,RB1#..RHD197708-198204

main62077-90740iBB10,RB1#..LHD197708-198204

67121AWEATHERSTRIP, FRONT DOOR INNER, FRONT NO.1

main62745-90740iBB10,RB1#197708-198204

67121BWEATHERSTRIP, FRONT DOOR INNER, FRONT NO.2

main62743-90740iBB10,RB1#197708-198204

sub62786-90740

67121CGUIDE, FRONT DOOR SASH

main62744-90740×2iBB10,RB1#197708-198204

67121GWEATHERSTRIP, FRONT DOOR INNER, FRONT NO.3

main62742-90740iBB10,RB1#197708-198204

sub62742-90744

67121HSTOPPER, FRONT DOOR WINDOW

main62747-90740iBB10,RB1#197708-198204

67122SASH, FRONT DOOR INNER, REAR

main62753-90740iBB10,RB1#..RHD197708-198204

main62754-90740iBB10,RB1#..LHD197708-198204

67122AWEATHERSTRIP, FRONT DOOR INNER, REAR NO.1

main62746-90740iBB10,RB1#197708-198204

sub62788-90740

67122BWEATHERSTRIP, FRONT DOOR INNER, REAR NO.2

main62743-90740iBB10,RB1#197708-198204

sub62786-90740

67122CWEATHERSTRIP, FRONT DOOR INNER, REAR NO.3

main62742-90741iBB10,RB1#197708-198204

sub62742-90744

67122DGUIDE, FRONT DOOR SASH

main62744-90740×2iBB10,RB1#197708-198204

67123SASH, FRONT DOOR WINDOW INNER, CENTER

main62755-90740×2iBB10,RB1#197708-198204

67124LOCK, FRONT DOOR WINDOW, FRONT

main62010-90740iBB10,RB1#197708-198204

sub62370-90B01

67124ACATCH, FRONT DOOR LOCK

main62756-90740×2iBB10,RB1#197708-198204

67124BNUT, PLATE, NO.1

main62759-90740×2iBB10,RB1#197708-198204

67124CNUT, PLATE, NO.2

main62761-90740×2iBB10,RB1#197708-198204

67125LOCK, FRONT DOOR WINDOW, REAR

main62010-90740iBB10,RB1#197708-198204

sub62370-90B01

67327GARNISH, FRONT DOOR WINDOW, RH

main67327-90740iBB10,RB1#..RHD197708-198204

67339REFLECTOR, FRONT DOOR

main67339-90500iBB10,RB1#197708-198204

67427GARNISH, FRONT DOOR WINDOW, LH

main67427-90740iBB10,RB1#..LHD197708-198204

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67306-90740iBB10,RB1#..RHD..GEN197708-197911

main67306-90741iBB10,RB11..ARL197708-197911

main67306-90742iBB10,RB1#..RHD..GEN197911-198204

main67306-90743iBB10,RB1#..ARL197911-198204

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67406-90740iBB10,RB1#..LHD197708-197911

main67406-90741iBB10,RB1#..LHD197911-198204

67861WEATHERSTRIP, FRONT DOOR, RH

main67330-90740iBB10,RB1#..RHD197708-198204

BODY

main67337-90501iBB10,RB1#..RHD197910-198204

DOOR

main67338-90500iBB10,RB1#..RHD197708-197910

DOOR

67862WEATHERSTRIP, FRONT DOOR, LH

main67330-90740iBB10,RB1#..LHD197708-198204

BODY

main67338-90500iBB10,RB1#..LHD197708-197910

DOOR

main67338-90501iBB10,RB1#..LHD197910-198204

DOOR

67864TRIM, FRONT DOOR PILLAR

main61572-90500iBB10,RB1#197708-198204

68101GLASS SUB-ASSY, FRONT DOOR, RH

main62711-90740iBB10,RB1#..RHD..STD197708-198204

FR

main62711-90741iBB10,RB1#..RHD..(BC,DLX)197708-198204

FR

main62712-90740iBB10,RB1#..RHD..STD197708-198204

RR

main62712-90741iBB10,RB1#..RHD..(BC,DLX)197708-198204

RR

68102GLASS SUB-ASSY, FRONT DOOR, LH

main62711-90740iBB10,RB1#..LHD..STD197708-198204

FR

main62711-90741iBB10,RB1#..LHD..(BC,DLX)197708-198204

FR

main62712-90740iBB10,RB1#..LHD..STD197708-198204

RR

main62712-90741iBB10,RB1#..LHD..(BC,DLX)197708-198204

RR

6274990740RETAINER, QUARTER WINDOW LOCK STRIKER

main62749-90740

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9095001076

main90950-01076

9095006001

main90950-06001

9321964008

main93219-64008

9322923008

main93229-23008

9322924012

main93229-24012

9323924008

main93239-24008

9331924008

main93319-24008

9352023010

main93520-23010

9353024010

main93530-24010

9354024014

main93540-24014

57 parts on this diagram · 1 diagram in section
