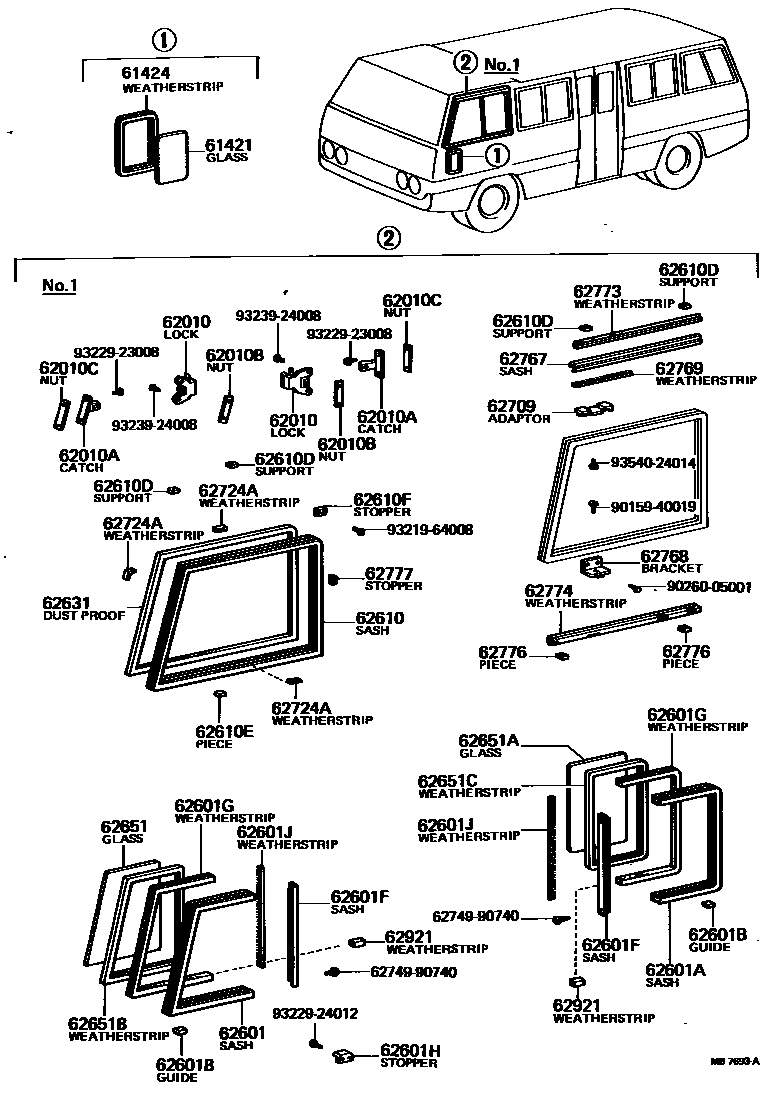

SIDE WINDOW
61424WEATHERSTRIP, SIDE LOWER WINDOW GLASS
62010LOCK ASSY, SIDE WINDOW
sub62370-90B01
62010ACATCH, LOCK
62010BNUT, PLATE, NO.1
62010CNUT, PLATE, NO.2
62601SASH SUB-ASSY, SIDE WINDOW INNER FRONT, NO.1
62601ASASH SUB-ASSY, SIDE WINDOW INNER REAR, NO.1
62601BGUIDE, SIDE WINDOW INNER SASH, NO.1
62601FSASH, SIDE WINDOW INNER CENTER, NO.1
62601GWEATHERSTRIP, RUN CHANNEL, NO.1
62601HSTOPPER, SIDE WINDOW, NO.1
62601JWEATHERSTRIP, SIDE WINDOW CENTER, NO.1
62610SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)
LH
RH
62610DSUPPORT, SIDE WINDOW OUTER SASH, NO.1
62610EPIECE, SIDE WINDOW OUTER SASH, NO.1
62610FSTOPPER, SIDE WINDOW, REAR
62631DUST PROOF, SIDE WINDOW, NO.1
sub62792-90500
62651BWEATHERSTRIP, SIDE WINDOW, FRONT NO.1
62651CWEATHERSTRIP, SIDE WINDOW, REAR NO.1
62709ADAPTER, SIDE WINDOW
62724AWEATHERSTRIP, WATER PROOF
UPR
62767SASH, FRONT SIDE WINDOW WATER PROOF, LH
62768BRACKET, SIDE WINDOW, LOWER
62769WEATHERSTRIP, FRONT SIDE WINDOW, UPPER
62773WEATHERSTRIP, FRONT SIDE WINDOW WATER PROOF, UPPER
sub62813-90740
62774WEATHERSTRIP, FRONT SIDE WINDOW WATER PROOF
62776PIECE, SIDE WINDOW WATER PROOF, LOWER
62777STOPPER, SIDE WINDOW
62921WEATHERSTRIP, RUN CHANNEL, LOWER
6274990740RETAINER, QUARTER WINDOW LOCK STRIKER
main62749-90740
9015940019
main90159-40019
9026005001
main90260-05001
9321964008
main93219-64008
9322923008
main93229-23008
9322924012
main93229-24012
9323924008
main93239-24008
9354024014
main93540-24014
40 parts on this diagram · 10 diagrams in section
