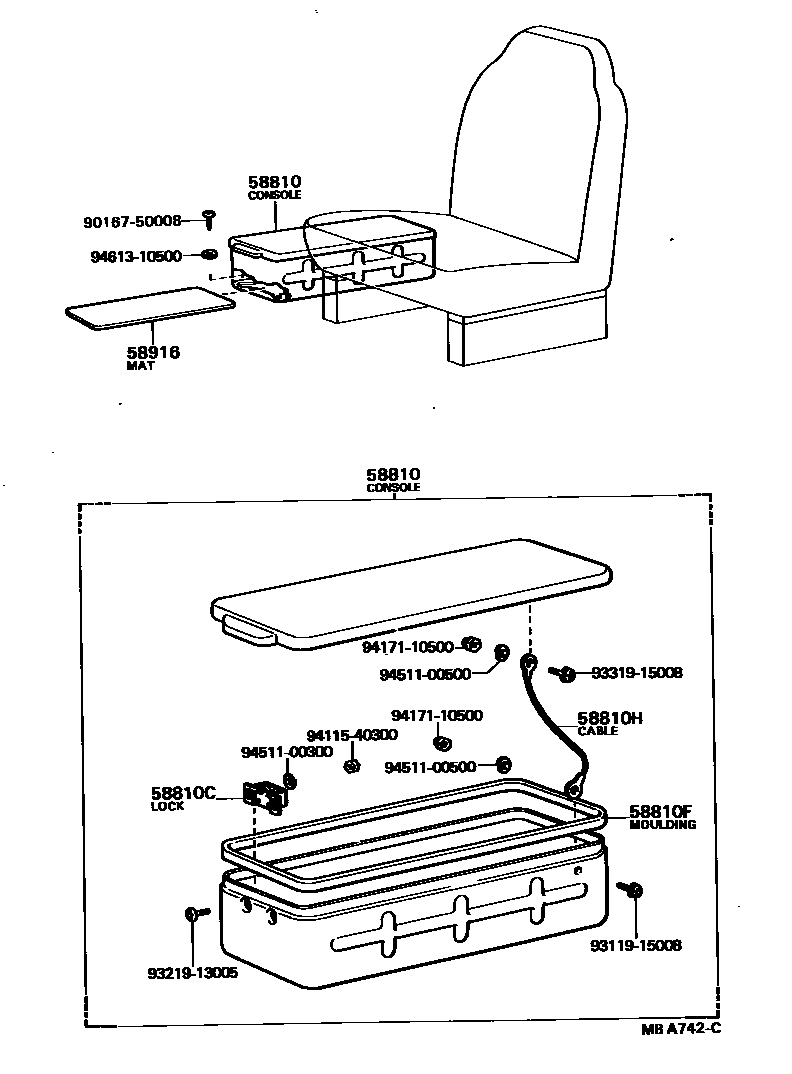

CONSOLE BOX & BRACKET

58810CONSOLE ASSY

main58910-90500iBB10,RB1#..GEN,IRQ197911-198204

58810CLOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58093-90500iBB10,RB1#..GEN,IRQ197911-198204

58810FMOULDING, CONSOLE BOX

main58931-90500iBB10,RB1#..GEN,IRQ197911-198204

58810HCABLE SUB-ASSY, CONSOLE BOX

main55508-30020iBB10,RB1#..GEN,IRQ197911-198204

58916MAT, BOX BOTTOM

main58916-90500iBB10,RB1#..GEN,IRQ197911-198204

9016750008

main90167-50008

9311915008

main93119-15008

9321913005

main93219-13005

9331915008

main93319-15008

9411540300

main94115-40300

9417110500

main94171-10500

9451100300

main94511-00300

9451100500

main94511-00500

9461310500

main94613-10500

14 parts on this diagram · 1 diagram in section
