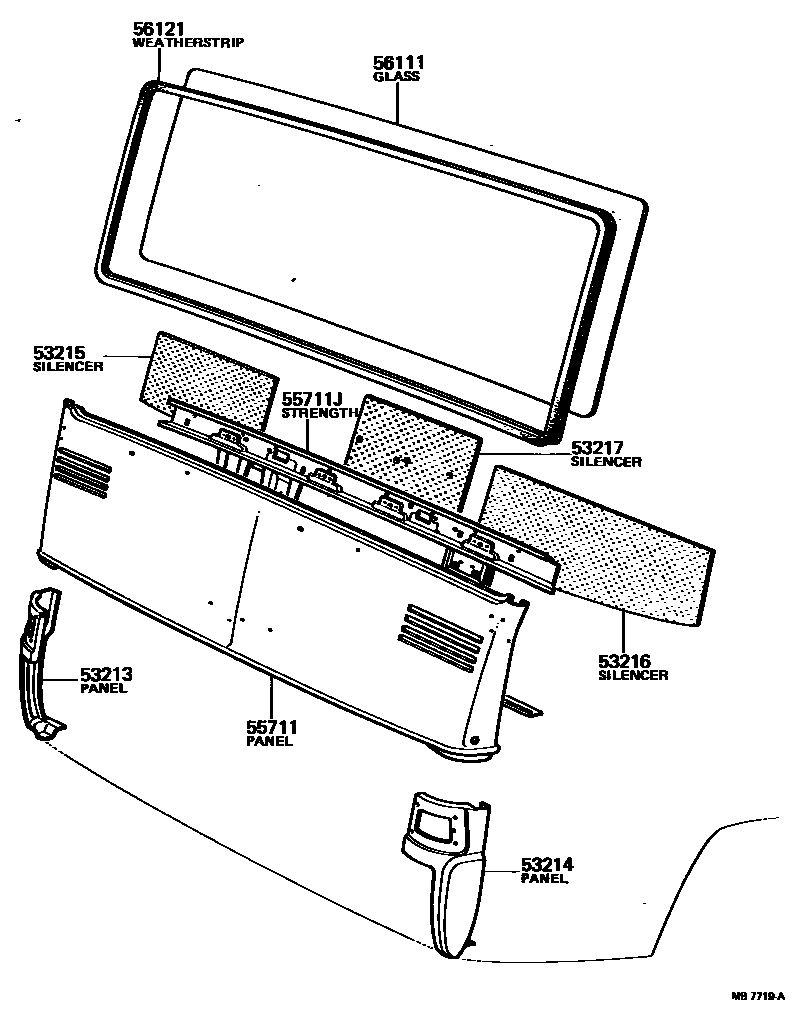

FRONT PANEL & WINDSHIELD GLASS

53213PANEL, FRONT UNDER, RH

main53213-90500iBB10,RB1#..LHD197708-198204

main53213-90501iBB10,RB1#..RHD197708-198204

53214PANEL, FRONT UNDER, LH

main53214-90500iBB10,RB1#..RHD197708-198204

main53214-90501iBB10,RB1#..LHD197708-198204

53215SILENCER, FRONT PANEL, RH

main53217-90501iBB10,RB1#..RHD197708-198204

main53217-90502iBB10,RB1#..LHD197708-198204

53216SILENCER, FRONT PANEL, LH

main53218-90501iBB10,RB1#..RHD197708-198204

main53218-90502iBB10,RB1#..LHD197708-198204

53217SILENCER, FRONT PANEL, CENTER

main53252-90500iBB10,RB1#..RHD..GEN197708-198204

W/O HEATER

main53252-90501iBB10,RB1#..LHD197708-198204

W/O HEATER

55711PANEL, COWL TOP, OUTER

main53211-90741iBB10,RB1#..LHD197708-198204

main53211-90742iBB10,RB1#..RHD197708-198204

55711JSTRENGTH SUB-ASSY, FRONT PANEL

main53302-90740iBB10,RB1#..RHD197708-197911

main53302-90741iBB10,RB1#..LHD197708-197911

main53302-90743iBB10,RB1#..RHD197911-198204

main53302-90744iBB10,RB1#..LHD197911-198204

sub53302-90741

56111GLASS, WINDSHIELD

main56111-90740iBB10,RB1#..STD..GEN197708-198204

sub56111-90742

main56111-90741iBB10,RB1#..(BC,DLX)..(GEN,IRQ)197708-198204

sub56111-90742

main56111-90742iBB10,RB11,13..ARL197708-198204

56121WEATHERSTRIP, WINDSHIELD

main56121-90740iBB10,RB1#197708-197808

main56121-90741iBB10,RB1#197808-198204

9 parts on this diagram · 1 diagram in section
