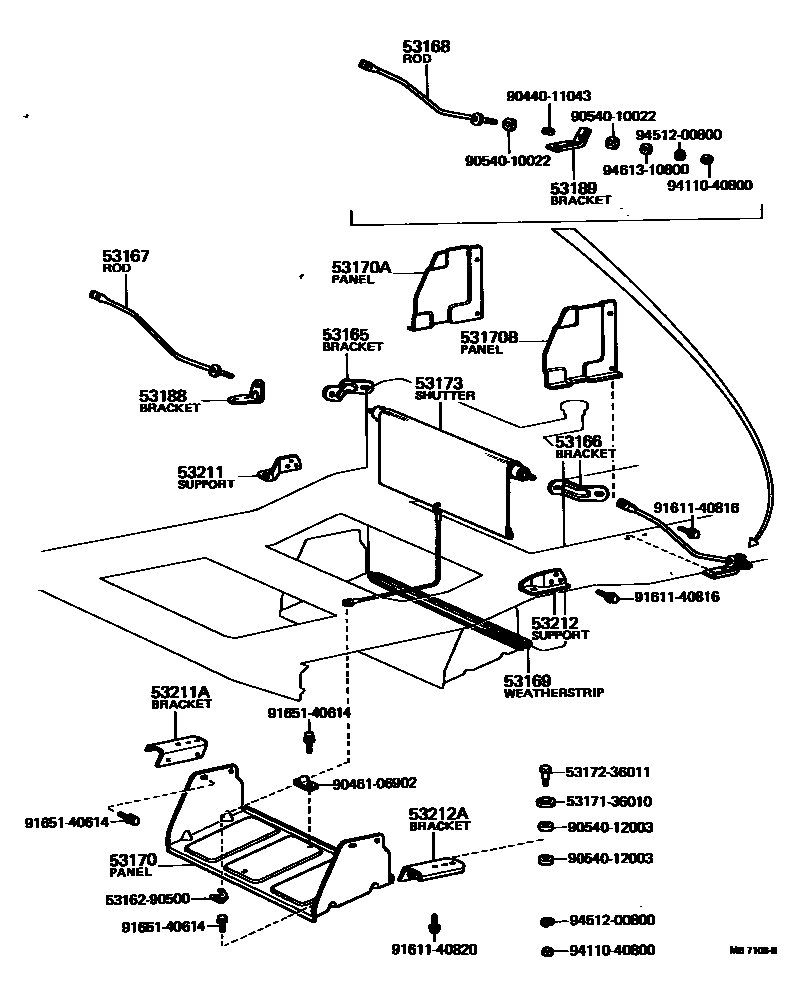

RADIATOR SUPPORT & WIND GUIDE

53165BRACKET, RADIATOR SIDE SUPPORT, RH

main53166-90740iBB10,RB1#197708-198204

53166BRACKET, RADIATOR SIDE SUPPORT, LH

main53167-90740iBB10,RB1#197708-198204

53167ROD, RADIATOR BRACE, RH

main53167-36040iBB10,RB1#197708-198204

53168ROD, RADIATOR BRACE, LH

main53169-36040iBB10,RB1#197708-198204

53169WEATHERSTRIP, RADIATOR WIND GUIDE, LOWER

main53168-90740iBB10,RB1#197708-198204

53170PANEL,RADIATOR WIND GUIDE, LOWER

main53109-90740iBB10,RB1#197708-198204

53170APANEL, RADIATOR WIND GUIDE, UPPER RH

main53171-90740iBB10197708-198204

53170BPANEL, RADIATOR WIND GUIDE, UPPER LH

main53172-90740iBB10197708-198204

53173SHUTTER SUB-ASSY, RADIATOR WIND

main53180-90740iBB10,RB1#197708-198204

53188BRACKET, RADIATOR BRACE ROD, RH

main53221-36030iBB10,RB1#197708-198204

53189BRACKET, RADIATOR BRACE ROD, LH

main53222-36040iBB10,RB1#197708-198204

53211SUPPORT, RADIATOR, RH

main53211-36030iBB10,RB1#197708-198204

53211ABRACKET, RADIATOR SUPPORT, RH

main51411-36050iBB10,RB1#197708-198204

53212SUPPORT, RADIATOR, LH

main53212-36030iBB10,RB1#197708-198204

53212ABRACKET, RADIATOR SUPPORT, LH

main51412-36060iBB10,RB1#197708-198204

5316290500HOOK, RADIATOR SHUTTER

main53162-90500

5317136010RETAINER, RADIATOR SUPPORT

main53171-36010

5317236011BOLT, RADIATOR SUPPORT BRACKET

main53172-36011

9044011043

main90440-11043

9046106902

main90461-06902

9054010022

main90540-10022

9054012003

main90540-12003

9161140816

main91611-40816

9161140820

main91611-40820

9165140614

main91651-40614

9411040800

main94110-40800

9451200800

main94512-00800

9461310800

main94613-10800

28 parts on this diagram · 1 diagram in section
