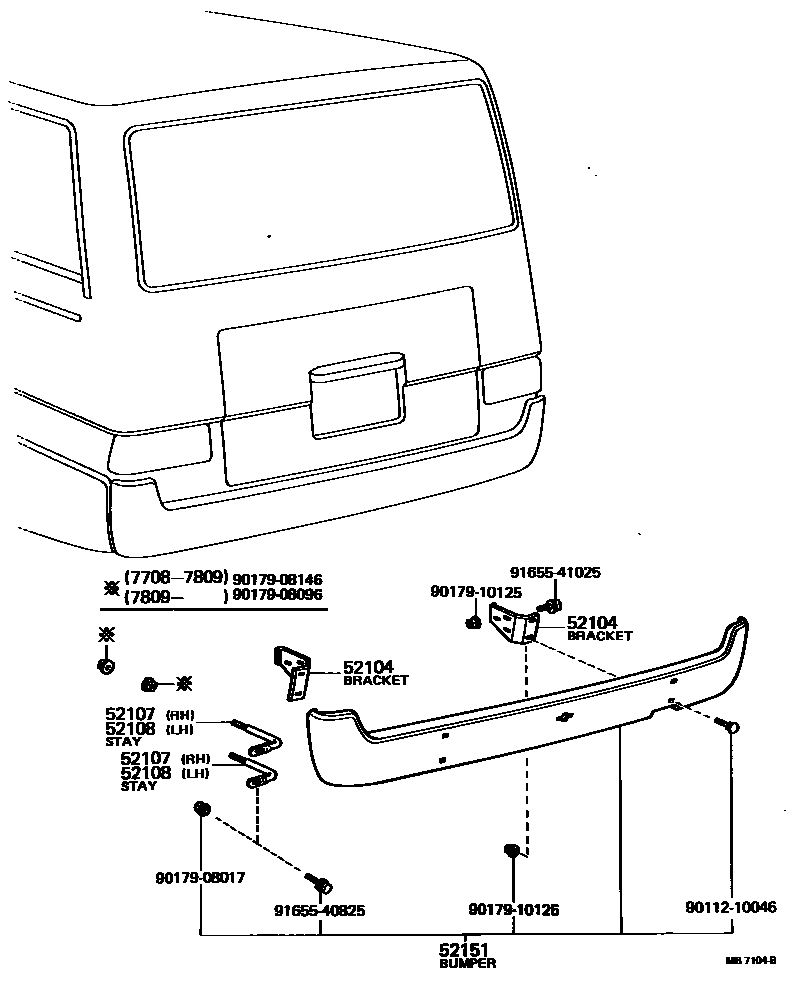

REAR BUMPER & BUMPER STAY

52104BRACKET SUB-ASSY, REAR BUMPER

main52122-90501iBB10,RB1#197708-198204

RH

main52123-90500iBB10,RB1#197708-198204

LH

52107STAY SUB-ASSY, REAR BUMPER, RH

main52126-90500iBB10,RB1#197708-198204

UPR

main52128-90500iBB10,RB1#197708-198204

LWR

52108STAY SUB-ASSY, REAR BUMPER, LH

main52127-90500iBB10,RB1#197708-198204

UPR

main52129-90500iBB10,RB1#197708-198204

LWR

52151BUMPER ASSY, REAR

main52102-90926iBB10,RB1#197708-198204

9011210046

main90112-10046

9017908017

main90179-08017

9017908096

main90179-08096

9017908146

main90179-08146

9017910125

main90179-10125

9165540825

main91655-40825

9165541025

main91655-41025

11 parts on this diagram · 1 diagram in section
