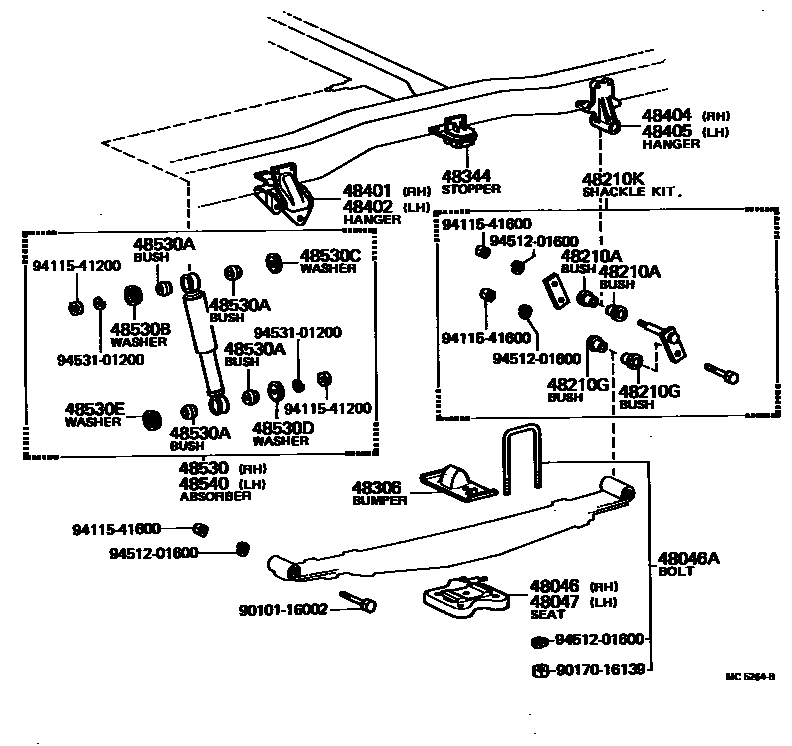

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-36130iBB10,RB1#197708-198204

48046ABOLT, U(FOR REAR SPRING)

main90118-16101iBB10,RB1#197708-198204

sub90117-16158

sub90170-16139

sub94512-01600

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-36130iBB10,RB1#197708-198204

48210SPRING ASSY, REAR RH

main48210-36290iBB10,RB1#197708-198204

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-23037iBB10,RB1#197708-198204

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-23037iBB10,RB1#197708-198204

48210KSHACKLE KIT, REAR SPRING

main04483-36020iBB10,RB1#197708-198204

48306BUMPER SUB-ASSY, REAR SPRING

main48306-36030iBB10,RB1#197708-197910

sub48306-36031

main48306-36031iBB10,RB1#197910-198204

48344STOPPER, BUMPER, REAR

main48308-36010iBB10,RB1#197708-198204

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-36023iBB10,RB1#197708-198204

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48414-36023iBB10,RB1#197708-198204

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-36040iBB10,RB1#197708-198204

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48416-36040iBB10,RB1#197708-198204

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39115iBB10,RB1#197708-198204

sub48531-39505

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iBB10,RB1#197708-198204

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003iBB10,RB1#197708-198204

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBB10,RB1#197708-198204

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03003iBB10,RB1#197708-198204

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iBB10,RB1#197708-198204

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39115iBB10,RB1#197708-198204

sub48531-39505

9010116002

main90101-16002

9017016139

main90170-16139

9411541200

main94115-41200

9411541600

main94115-41600

9451201600

main94512-01600

9453101200

main94531-01200

26 parts on this diagram · 2 diagrams in section
