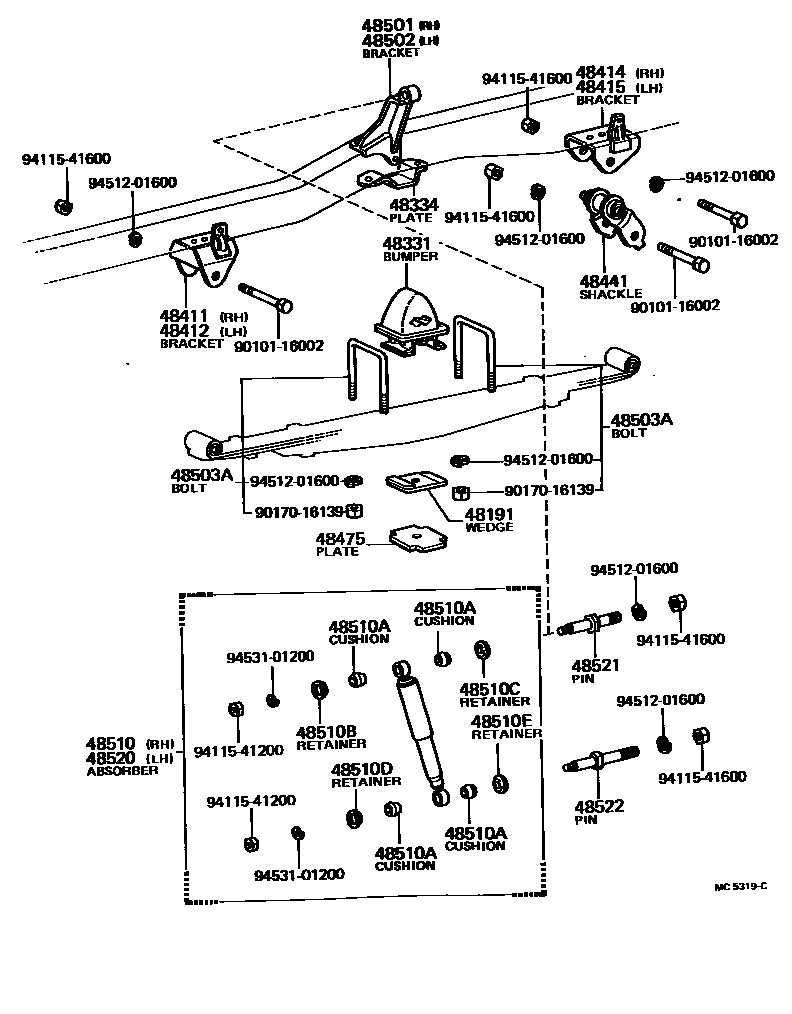

FRONT SPRING & SHOCK ABSORBER
48191WEDGE, CASTER(FOR FRONT LEAF SPRING)
48331BUMPER, FRONT SPRING, NO.1
48334PLATE, BUMPER, FRONT
RH
RH
LH
LH
48411BRACKET, FRONT SPRING(FOR FRONT RH)
48412BRACKET, FRONT SPRING(FOR FRONT LH)
48414BRACKET, FRONT SPRING(FOR REAR RH)
48415BRACKET, FRONT SPRING(FOR REAR LH)
48475PLATE, DISTANCE(FOR FRONT)
48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH
48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48511-39236
48510ACUSHION, FRONT SHOCK ABSORBER
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48511-39236
48521PIN, FRONT SHOCK ABSORBER UPPER PIVOT
48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT
9010116002
main90101-16002
9017016139
main90170-16139
9411541200
main94115-41200
9411541600
main94115-41600
9451201600
main94512-01600
9453101200
main94531-01200
27 parts on this diagram · 3 diagrams in section
