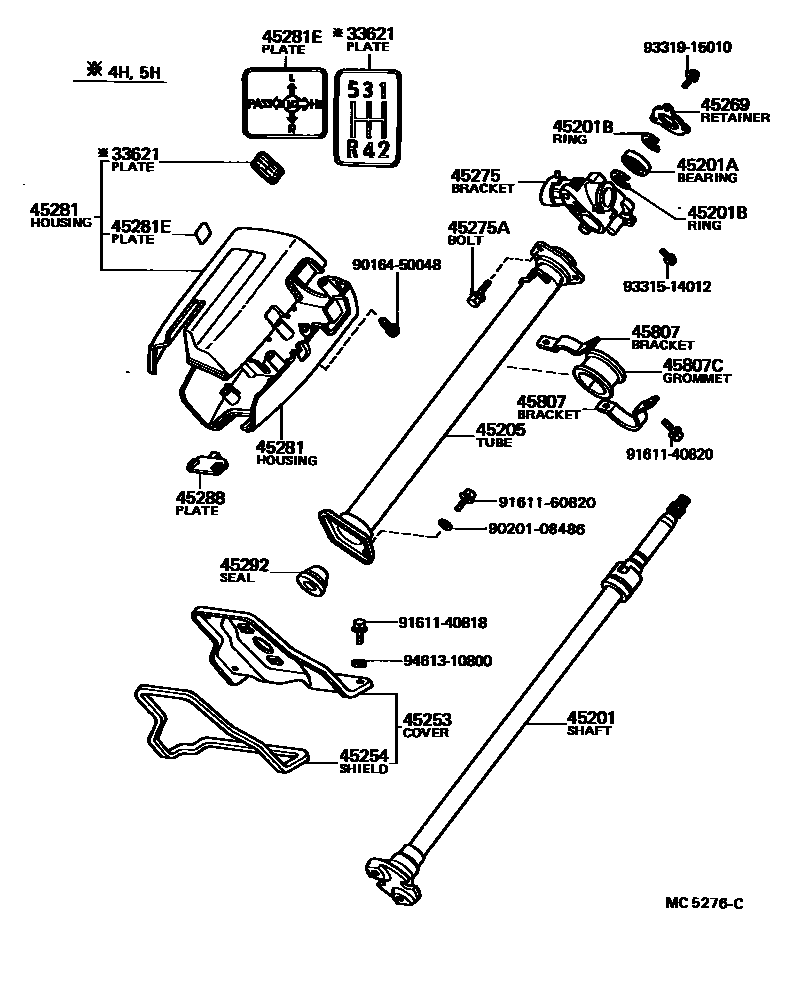

STEERING COLUMN & SHAFT

0001 1 0002 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36010iRB10..LHD¥740197708-197911

main33621-36020iBB10,RB11..RHD..5H¥510197708-197911

main33621-36030iBB10..LHD¥350197708-197911

main33621-36040iRB1#..RHD..4H¥370197708-197911

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-36110iBB10,RB1#¥9,800197708-198204

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iBB10,RB1#¥660197708-198204

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iBB10,RB1#¥120197708-198204

T=1.20,LWR

main90520-17269iBB10,RB1#¥120197708-198204

T=1.20,UPR

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-36130iBB10,RB1#197708-198204

45253COVER, STEERING COLUMN HOLE

main45253-36060iBB10,RB1#..RHD197708-197911

main45253-36070iBB10,RB1#..LHD197708-197911

main45253-36160iBB10,RB1#..RHD197911-198204

main45253-36170iBB10,RB1#..LHD197911-198204

45254SHIELD, STEERING COLUMN HOLE

main45254-36020iBB10,RB1#..RHD197708-198204

main45254-36030iBB10,RB1#..LHD197708-198204

45269RETAINER, MAIN SHAFT BEARING

main45269-36010iBB10,RB1#¥620197708-198204

45275BRACKET, STEERING COLUMN, UPPER

main45307-36050iRB1#..RHD¥12,600197708-198204

sub45307-36051¥12,600

main45307-36050iBB10..ARL¥12,600197708-198204

W/*EDIC

sub45307-36051¥12,600

main45307-36060iBB10..RHD¥13,600197708-198204

sub45307-36061¥13,600

main45307-36070iBB10..LHD¥13,600197708-197911

sub45307-36071¥13,600

main45307-36080iBB10..LHD¥12,600197708-197911

W/*EDIC

sub45307-36081¥11,800

main45307-36090iBB10..LHD¥13,600197911-198204

sub45307-36091¥13,600

main45307-36100iRB1#..LHD¥12,600197911-198204

sub45307-36101¥12,600

main45307-36100iBB10..LHD..(DLX,STD)¥12,600197911-198008

W/*EDIC

sub45307-36101¥12,600

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main91611-40616iBB10,RB1#¥220197708-198008

sub91611-60616¥110

main91611-60616iBB10,RB13¥110198008-198204

sub91611-B0616¥110

45281HOUSING, STEERING COLUMN

main45286-36110iBB10..RHD¥3,720197708-197911

UPR

main45286-36120iRB11..RHD..5H¥3,720197708-197911

UPR

main45286-36120iRB11..RHD..5H¥3,720197708-197911

UPR,W/*EDIC

main45286-36150iBB10..LHD¥3,720197708-197911

UPR

main45286-36160iRB11..LHD..5H¥3,720197708-197911

UPR

main45286-36170iBB10..LHD¥3,730197911-198204

UPR

main45286-36180iBB10..LHD..(DLX,STD)¥3,730197911-198204

UPR

main45286-36180iRB1#..LHD¥3,730197911-198204

UPR,W/*EDIC

main45286-36200iRB1#..RHD..4H¥3,720197708-197911

UPR

main45286-36210iRB1#..LHD..4H¥3,720197708-197911

UPR

main45286-36250iBB10..RHD..GEN197911-198204

UPR

main45286-36260iRB1#..RHD¥3,570197911-198204

UPR,W/*EDIC

main45286-36260iRB1#..RHD¥3,570197911-198204

UPR

main45287-36070iBB10,RB1#..RHD¥3,400197708-198204

LWR

main45287-36090iBB10,RB11..LHD¥3,720197708-197911

LWR

main45287-36100iBB10,RB1#..LHD¥3,730197911-198204

LWR

45281EPLATE, SAFETY CAUTION

main45283-22010iBB10,RB1#..RHD¥150197708-198204

main45283-22020iBB10,RB1#..LHD¥650197708-198204

45288PLATE, STEERING COLUMN COVER

main45288-36010iBB10,RB1#197708-198204

45292SEAL, MAIN SHAFT LOWER DUST

main45292-36010iBB10,RB1#¥710197708-198204

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main55601-90500iBB10,RB1#¥1,390197708-198204

UPR

sub55612-90501¥1,400

main55612-90501iBB10,RB1#¥1,400197708-198204

LWR

45807CGROMMET(FOR STEERING COLUMN CLAMP)

main90480-45092iBB10,RB1#¥240197708-198204

9016450048

main90164-50048¥110

9020108486

main90201-08486¥180

9161140818

main91611-40818¥130

9161140820

main91611-40820¥130

9161160820

main91611-60820¥200

9331514012

main93315-14012¥70

9331915010

main93319-15010¥70

9461310800

main94613-10800¥90

24 parts on this diagram · 2 diagrams in section
