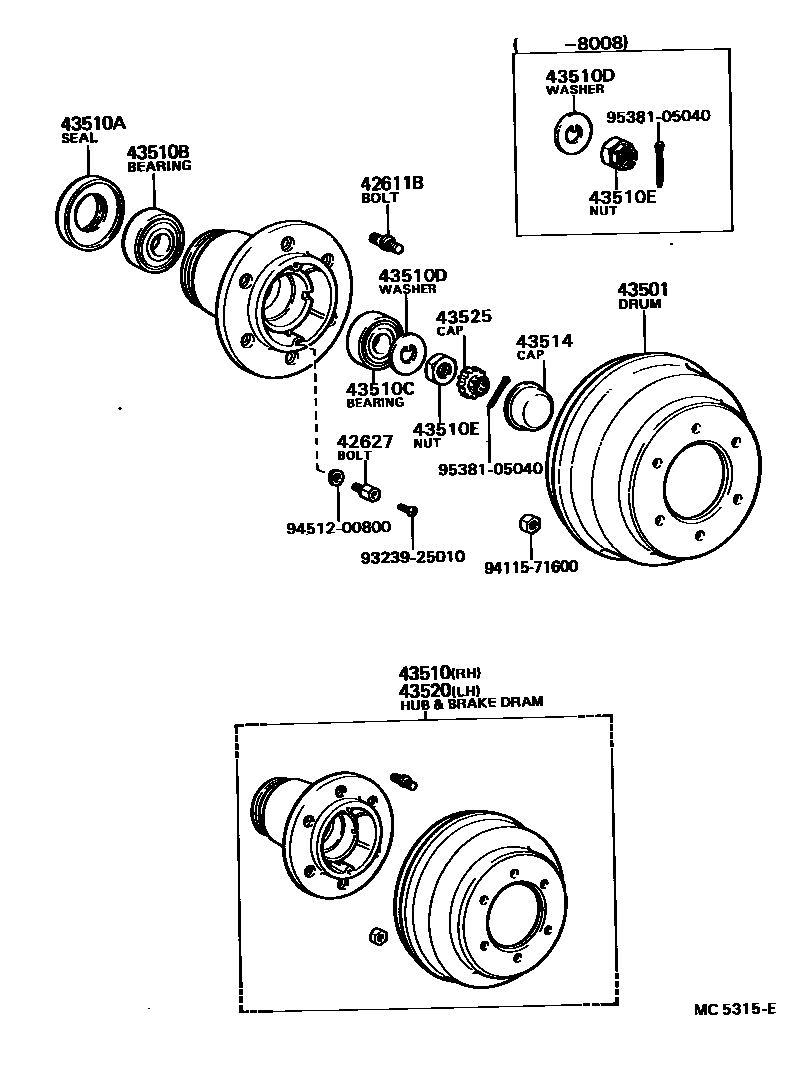

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02039iBB10,RB1#197708-198204

RH

main90942-02040iBB10,RB1#197708-198204

LH

42627BOLT, FRONT WHEEL CAP SET

main42627-36011iBB10,RB1#197708-198204

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-36030iBB10,RB1#197708-198204

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-36060iBB10,RB1#197708-198204

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-68001iBB10,RB1#197708-198204

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-42045iBB10,RB1#197708-198204

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-28001iBB10,RB1#197708-198204

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-27001iBB10,RB1#197708-198204

43510ENUT (FOR STEERING KNUCKLE)

main90170-26001iBB10,RB13198008-198204

main90171-26001iBB10,RB1#197708-198008

43514CAP, FRONT HUB GREASE

main43514-36030iBB10,RB1#197708-198204

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43520-36060iBB10,RB1#197708-198204

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-36010iBB10,RB13198008-198204

9323925010

main93239-25010

9411571600

main94115-71600

9451200800

main94512-00800

9538105040

main95381-05040

16 parts on this diagram · 1 diagram in section
