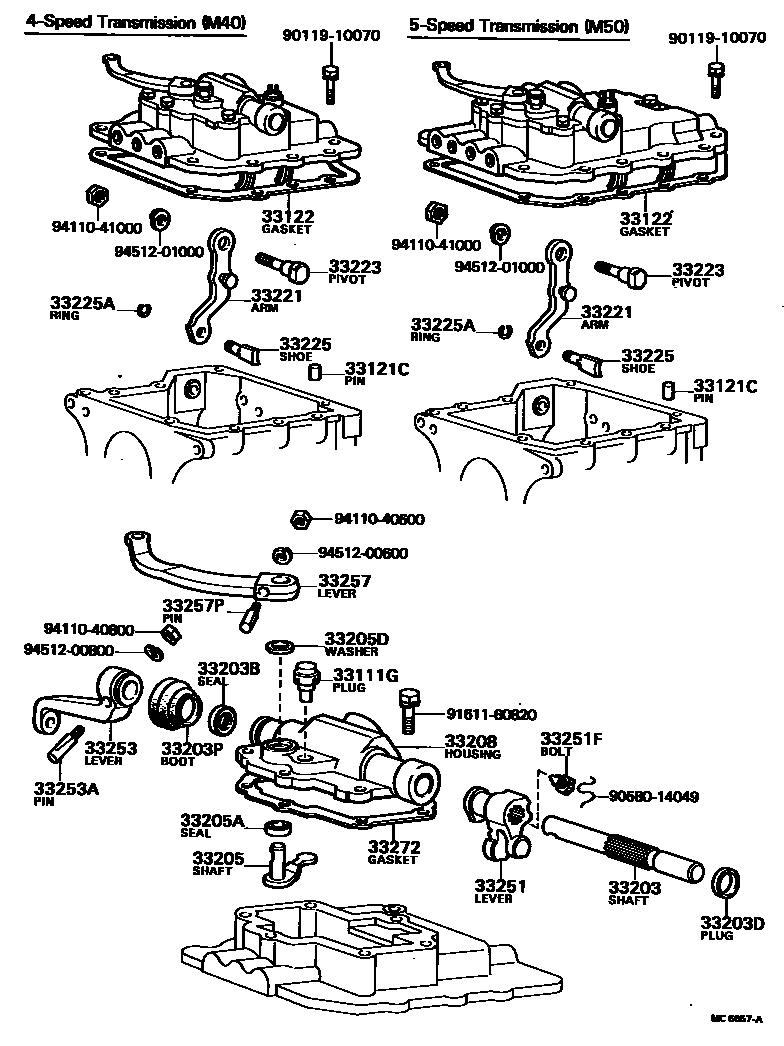

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03065iBB10,RB1#197708-198203

main90930-03075iBB10,RB13198203-198204

33121COVER, MANUAL TRANSMISSION CASE

main33121-36030iRB1#..4F,4H197708-198204

main33121-36080iBB10,RB11,13..5F,5H197708-198204

33121CPIN(FOR TRANSMISSION CASE COVER)

main90250-10214iBB10,RB1#197708-198204

L=14,OD=10

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-36020iBB10,RB11,13..5F,5H197708-198204

main33122-36030iRB1#..4F,4H197708-198204

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-36040iBB10,RB1#197911-198204

main33261-36050iBB10,RB1#197708-197911

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90312-17001iBB10,RB1#197708-198204

33203DPLUG, TIGHT(FOR SHIFT LEVER SHAFT)

main90331-20001iBB10,RB1#197911-198204

sub90331-20044

main90331-25003iBB10,RB1#197712-197911

sub96411-42500

main96411-12500iBB10,RB1#197708-197712

sub96411-42500

33203PBOOT, DUST(FOR SHIFT LEVER SHAFT)

main33531-36020iBB10,RB1#197911-198204

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-36050iBB10,RB1#197708-198204

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iBB10,RB1#197708-198204

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13151iBB10,RB1#197708-197911

main94612-11300iBB10,RB1#197911-198204

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33271-36070iBB10,RB1#197911-198204

sub33271-36060

sub90341-16013

main33271-36080iBB10,RB1#197708-197911

33221ARM, REVERSE SHIFT

main33201-36040iBB10,RB1#197708-198204

33223PIVOT, SHIFT ARM

main33223-36010iBB10,RB1#197708-198204

sub33223-36020

33225SHOE, SHIFT ARM

main33225-36030iBB10,RB1#197708-198204

33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)

main90520-08098iBB10,RB1#197708-198204

33251LEVER, SHIFT & SELECT

main33251-36050iBB10,RB1#..RHD197708-198204

sub33251-36030

main33251-36060iBB10,RB1#..LHD197708-197911

33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)

main33218-35010iBB10,RB1#197911-198204

33253LEVER, SHIFT OUTER, NO.1

main33253-36060iBB10,RB1#197911-198204

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33282-57010iBB10,RB1#197911-198204

33257LEVER, SELECT OUTER

main33257-36020iBB10,RB1#197708-197911

main33257-36060iBB10,RB1#197911-198204

sub33257-36061

33257PPIN, SELECT OUTER LEVER LOCK

main33282-36010iBB10,RB1#197708-198204

33272GASKET, SHIFT LEVER SHAFT HOUSING

main33272-36020iBB10,RB1#197708-198204

9011910070

main90119-10070

9058014049

main90580-14049

9161160820

main91611-60820

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9451200600

main94512-00600

9451200800

main94512-00800

9451201000

main94512-01000

32 parts on this diagram · 4 diagrams in section
