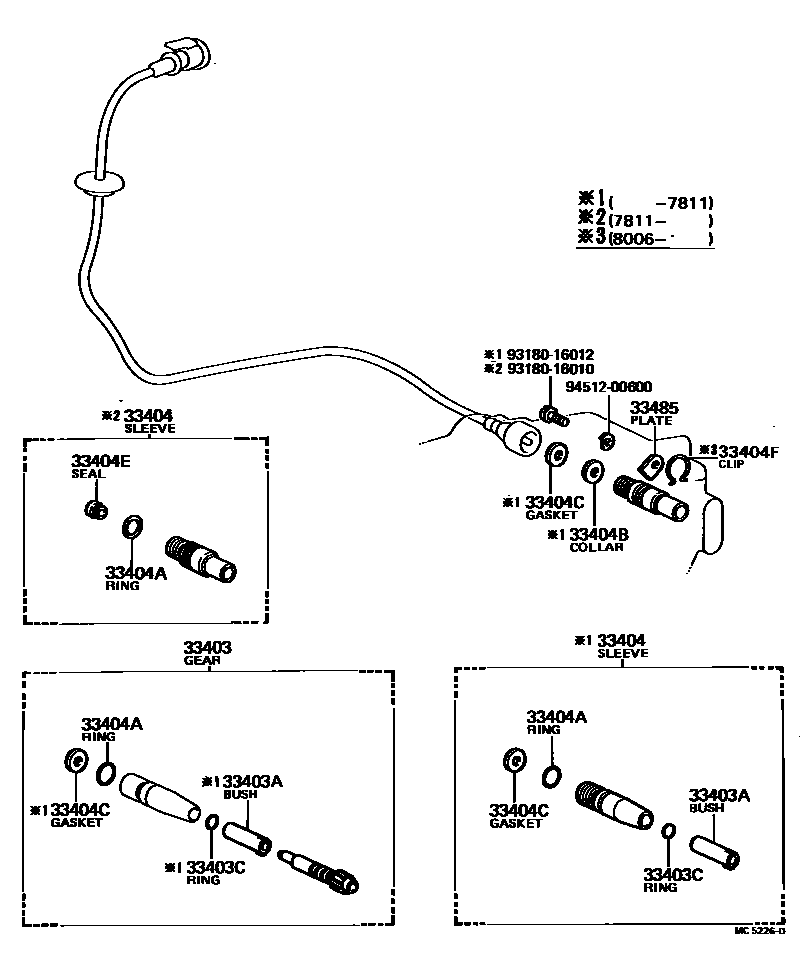

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29016iBB10..DLX,STD197708-198006

N=19,DRIVE GEAR N=5

main33403-29035iRB11197708-198006

N=19,DRIVE GEAR N=4

main33403-39045iRB10197708-198006

N=17,MARK 17:4,N=17,DRIVE GEAR N=4

main33403-39055iBB10..BC197708-198006

N=16,DRIVE GEAR N=4

main33482-29045iBB10..DLX,STD198006-198204

N=19,MARK 19:5,N=19,DRIVE GEAR N=5

main33482-39095iBB10..BC198006-198204

N=16,MARK 16:4,N=16,DRIVE GEAR N=4

main33482-39105iBB10198006-198204

N=17,MARK 17:4,N=17,DRIVE GEAR N=4

main33482-39105iRB13..GEN198008-198204

N=17,MARK 17:4,N=17

main33482-39125iRB11198006-198204

N=19,DRIVE GEAR N=4

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09078iBB10,RB1#197708-197811

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09017iBB10,RB1#197708-197811

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-30040iBB10,RB11197911-198006

main33404-35010iBB10,RB1#198006-198204

main33404-39016iBB10,RB1#197708-197811

main33404-39025iBB10,RB1#197811-197911

sub33404-30040

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iBB10,RB1#197708-198204

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iBB10,RB1#197708-197811

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iBB10,RB1#197708-197811

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iBB10,RB1#197811-198204

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iBB10,RB1#198006-198204

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-35010iBB10,RB1#197708-197811

main33485-36010iBB10,RB1#197811-198204

9318016010

main93180-16010

9318016012

main93180-16012

9451200600

main94512-00600

13 parts on this diagram · 1 diagram in section
