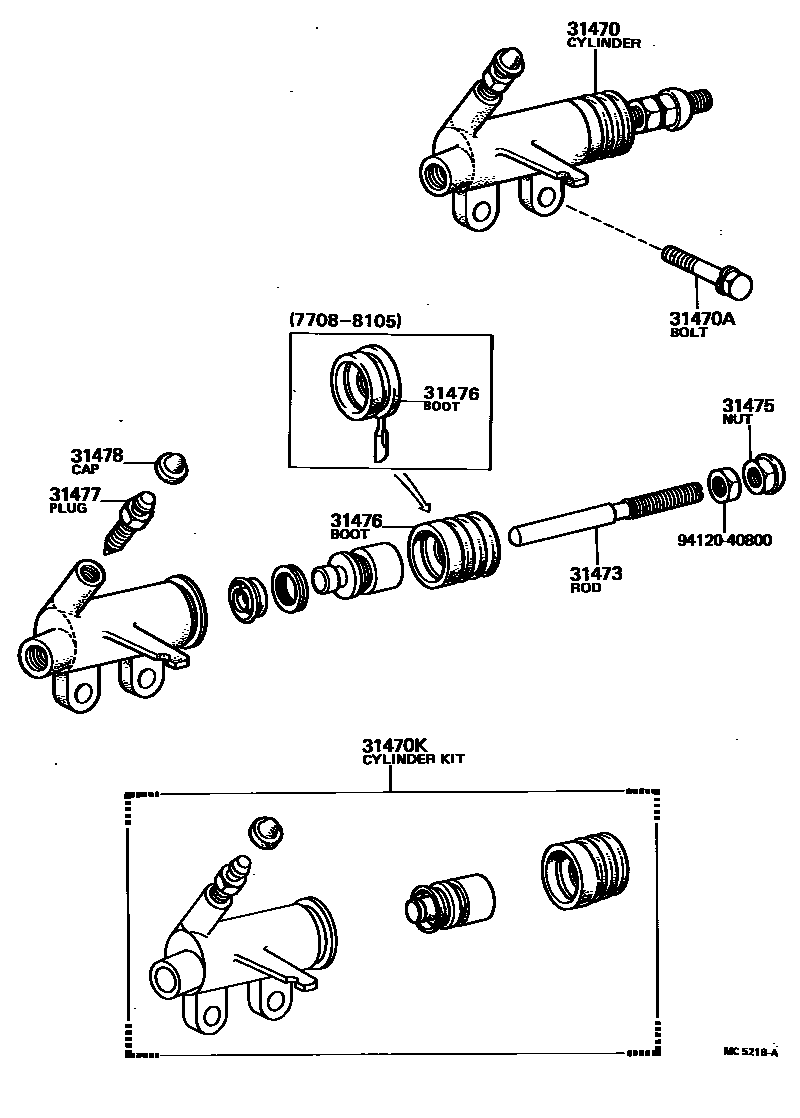

CLUTCH RELEASE CYLINDER

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36050iBB10¥7,200197708-198204

main31470-36080iRB1#¥7,200197708-198204

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40828iBB10,RB1#¥210197708-198204

sub91611-60828¥110

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-36020iBB10,RB1#¥1,020197708-198105

main04313-36021iBB10,RB13¥1,030198105-198204

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-25010iBB10,RB13¥870198105-198204

main31473-30021iBB10,RB1#¥800197708-198105

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31475-30010iBB10,RB1#¥680197708-198204

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20040iBB10,RB1#¥470197708-198105

main31476-22010iBB10,RB13¥230198105-198204

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBB10,RB1#¥180197708-198204

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBB10,RB1#¥160197708-198204

9412040800

main94120-40800¥90

9 parts on this diagram · 1 diagram in section
