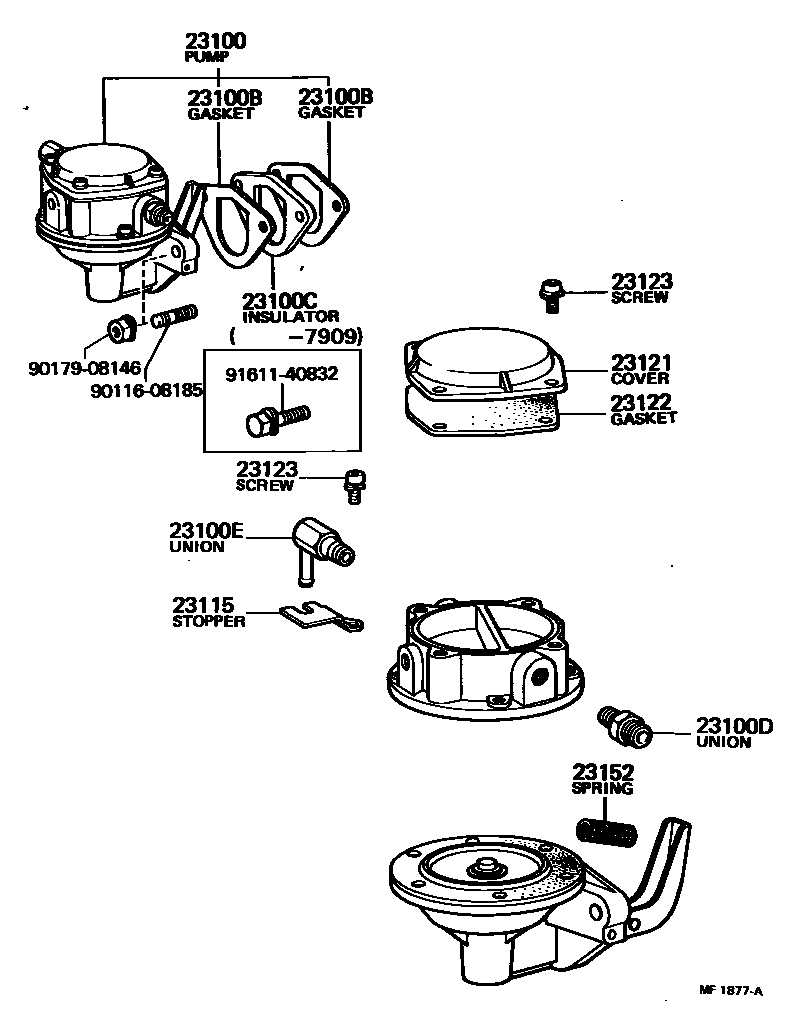

FUEL PUMP & PIPE

0001 1 0002 1 0003 1

23100PUMP ASSY, FUEL

main23100-39315i20R..RB11197911-198008

sub23100-38070

main23100-39335i22R..RB13198008-198108

sub23100-39336

main23100-39336i22R..RB13198108-198204

main23100-49185i5R..RB10197708-197911

23100BGASKET, FUEL PUMP

main83361-14010i20R..RB11197708-197911

main90923-05005i20R,22R..RB1#197708-198204

sub90923-05019

23100CINSULATOR, FUEL PUMP

main90923-06001i5R..RB10197708-198204

sub90923-06009

23100DUNION, NIPPLE(FOR FUEL OUTLET)

main90404-13105i5R..RB10197708-197911

23100EUNION, NIPPLE(FOR FUEL INLET)

main23116-41020i5R..RB10197708-197911

23115STOPPER, UNION NIPPLE

main23115-44040i5R..RB10197708-197911

23121COVER, FUEL PUMP

main23121-41030i5R..RB10197708-197911

23122GASKET, FUEL PUMP COVER

main23122-41030i5R..RB10197708-197911

23123SCREW, COVER SET, NO.1

main93319-15014i5R..RB10197708-197911

main93319-15016i5R..RB10197708-197911

23152SPRING, ROCKER ARM

main23152-44020i5R..RB10197708-197911

9011608185

main90116-08185

9017908146

main90179-08146

9161140832

main91611-40832

13 parts on this diagram · 3 diagrams in section
