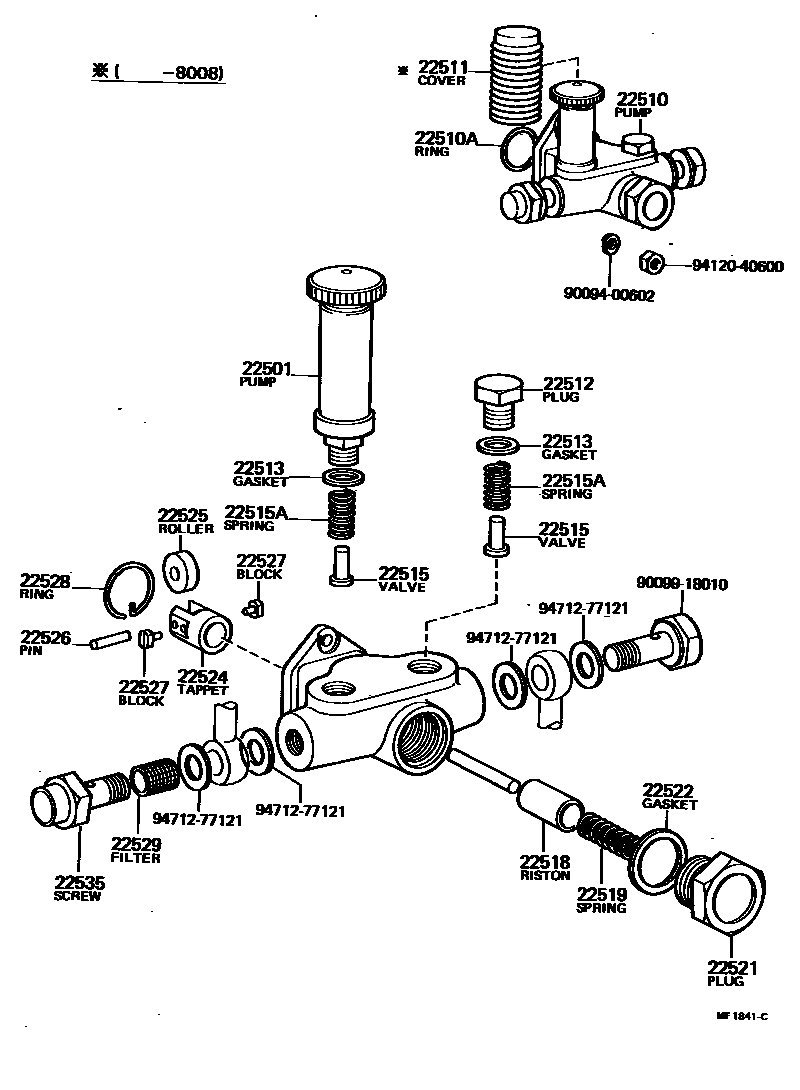

FUEL FEED PUMP
22501PUMP SUB-ASSY, PRIMING
22510PUMP ASSY, FUEL FEED
22510ARING, O(FOR FUEL FEED PUMP)
22511COVER, PRIMING PUMP
22512PLUG, FEED PUMP CHECK VALVE CHAMBER
22513GASKET, CHECK VALVE CHAMBER PLUG
22515VALVE, FEED PUMP CHECK
22515ASPRING, FEED PUMP CHECK VALVE
22518PISTON, FEED PUMP
BLUE,BLUE
22519SPRING, FEED PUMP PISTON
22521PLUG, FEED PUMP PISTON CHAMBER
22522GASKET, FEED PUMP PISTON PLUG
sub90099-01432
22524TAPPET, FEED PUMP
22525ROLLER, FEED PUMP TAPPET
22526PIN, FEED PUMP TAPPET ROLLER
22527BLOCK, FEED PUMP TAPPET SLIDING
22528RING, FEED PUMP TAPPET SNAP
22529FILTER, FUEL PUMP
22535SCREW, FUEL PIPE FOLLOW
9009400602
main90094-00602
9009918010
main90099-18010
9412040600
main94120-40600
9471277121
main94712-77121
23 parts on this diagram · 1 diagram in section
