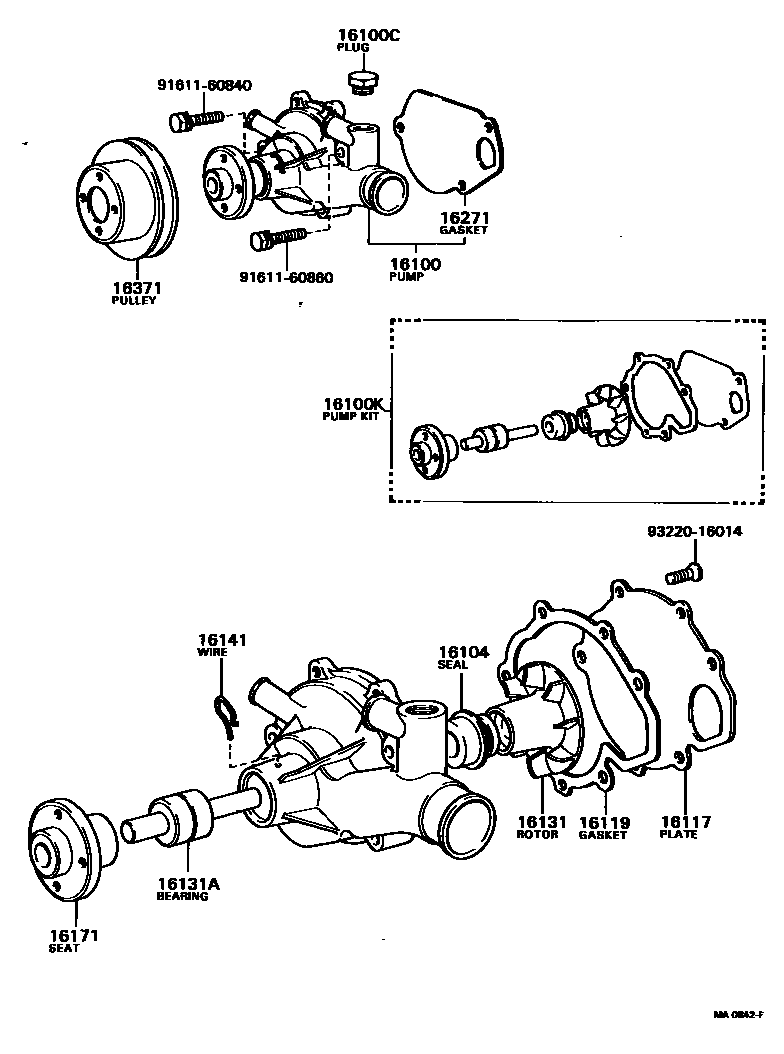

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-49415i5R..RB10197708-197911

sub16100-49416

main16100-59017i2B..BB10..DLX,STD197708-197905

ALUMINUM

main16100-59025i2B..BB10..BC197708-197904

sub16100-59026

main16100-59026i2B..BB10..BC197904-198008

main16100-59055i2B..BB10..DLX,STD197905-198008

IRON

main16100-59075i2B..BB10..DLX,STD198008-198204

sub16100-59076

main16100-59085i2B..BB10..BC198008-198204

16100CPLUG, W/HEAD TAPER SCREW

main15184-15010i2B..BB10198008-198204

main90345-54002i5R..RB10197708-198008

W/O HEATER

main90345-54021i2B..BB10197708-197805

W/O HEATER

16100KPUMP KIT, WATER

main04161-35020i22R..RB13198008-198204

sub04161-35021

main04161-56020i2B..BB10..DLX,STD197708-198008

sub04161-56021

main04161-56040i2B..BB10..DLX,STD198008-198204

sub04161-56041

main04161-56070i2B..BB10..BC198008-198204

sub04161-56071

main04161-57010i2B..BB10..BC197708-198008

16104SEAL SET, WATER PUMP

main16104-41110i20R,5R..RB1#197708-198008

sub16104-41111

main16104-41111i2B..BB10..DLX,STD198008-198204

sub16104-15020

main16104-52010i2B..BB10..BC197708-197904

sub16104-52012

main16104-52011i2B..BB10..BC197904-198204

sub16104-52012

16117PLATE, WATER PUMP

main16117-44010i5R..RB10197708-197911

main16117-56010i2B..BB10197708-198008

main16117-56040i2B..BB10198008-198204

16119GASKET, WATER PUMP BODY

main16119-44010i5R..RB10197708-197911

sub16119-44011

main16119-56010i2B..BB10197708-198008

main16119-56040i2B..BB10198008-198204

sub16119-56041

16131ROTOR, WATER PUMP

main16131-35010i22R..RB13198008-198204

main16131-38020i20R..RB11197708-198008

main16131-44070i5R..RB10197708-197911

main16131-56020i2B..BB10..DLX,STD197708-198008

main16131-56030i2B..BB10..DLX,STD198008-198204

main16131-56040i2B..BB10..BC198008-198204

main16131-87304i2B..BB10..BC197708-198008

16131ABEARING, WATER PUMP

main16140-38011i20R..RB11197708-197802

WPB16101ARS

sub90369-30066

main90369-30011i20R,22R..RB11,13197802-198204

sub90029-36816

main90369-30028i2B..BB10..DLX,STD197708-198204

WPB16112-2RS

main90369-30063i5R..RB10197805-197911

WPB 16105BRS

main90369-38001i2B..BB10..BC197708-198204

16141WIRE, WATER PUMP BEARING RETAINING

main16141-60010i2B..BB10..DLX,STD197905-198204

main16141-76010i2B..BB10..BC197904-198008

16171SEAT, WATER PUMP PULLEY

main16171-24031i5R..RB10197708-197911

main16171-38022i20R,22R..RB11,13197708-198204

main16171-56010i2B..BB10..DLX,STD197708-198204

main16171-57011i2B..BB10..BC197708-198204

16271GASKET, WATER PUMP

main16271-44010i5R..RB10197708-197911

sub16271-44020

main16271-56012i2B..BB10197708-198008

main16271-56020i2B..BB10198008-198204

sub16271-56030

16371PULLEY, FAN

main16173-38011i20R,22R..RB11,13197708-198204

main16371-44010i5R..RB10197708-197911

main16371-56010i2B..BB10..DLX,STD197708-198008

main16371-56020i2B..BB10198008-198204

sub16371-56021

main16371-57010i2B..BB10..BC197708-198008

9161160840

main91611-60840

9161160860

main91611-60860

9322016014

main93220-16014

15 parts on this diagram · 4 diagrams in section
