STANDARD TOOL

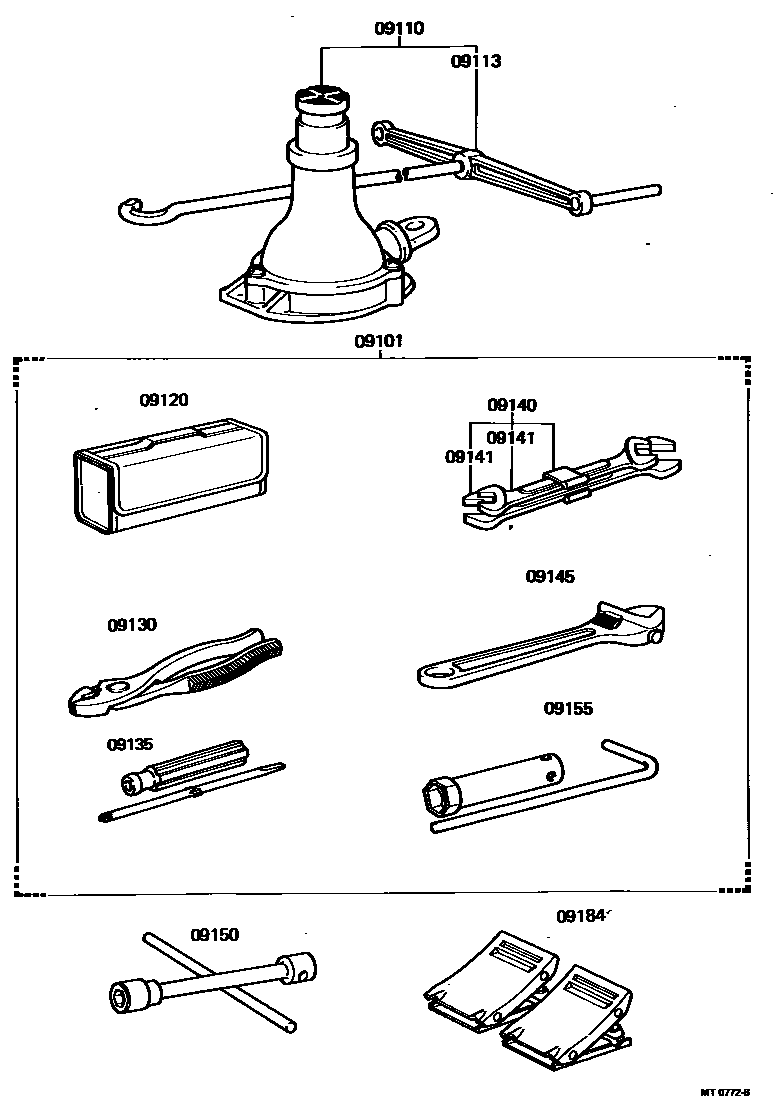

Parts diagram
09101TOOL SET, STANDARD W/O JACK
main09102-36060i197708-197911
main09102-36070i197708-197911
main09102-36180i197911-198204
main09102-36190i197911-198204
09110JACK ASSY
main09110-36030i197708-197903
main09110-36031i197903-198204
09113HANDLE, JACK
main09113-25040i197903-198204
main09113-36020i197708-197903
09120BAG, TOOL
main09120-36020i197708-198204
09130PLIERS
main09130-00010i197911-198204
sub09130-00012
main09130-00020i197708-197911
sub99913-22000
09135DRIVER, SCREW
main09135-00010i197708-198204
sub99915-10700
09140SPANNER SET
main09140-22010i197708-197911
sub09140-00070
main09140-27010i197911-198204
09141SPANNER
main09141-00030i197708-197911
10X12
sub09141-00120
main09141-00032i197911-198204
10X12
sub99914-11012
main09141-00050i197708-197911
14X17
sub09141-00130
main09141-12020i197911-198204
14X17
sub99914-11417
09145WRENCH, MONKEY
main09145-00020i197911-198204
sub99911-10200
main09145-00030i197708-197911
sub09145-32250
09150WRENCH, HUB NUT BOX
main09150-25020i197911-198204
main09150-36011i197708-197911
09155WRENCH, SPARK PLUG
main09155-28010i197911-198204
sub09155-43012
main09155-51010i197708-197911
sub09155-26010
09184STOPPER, WHEEL
main76410-90502×2i197708-197911

12 parts on this diagram · 1 diagram in section
