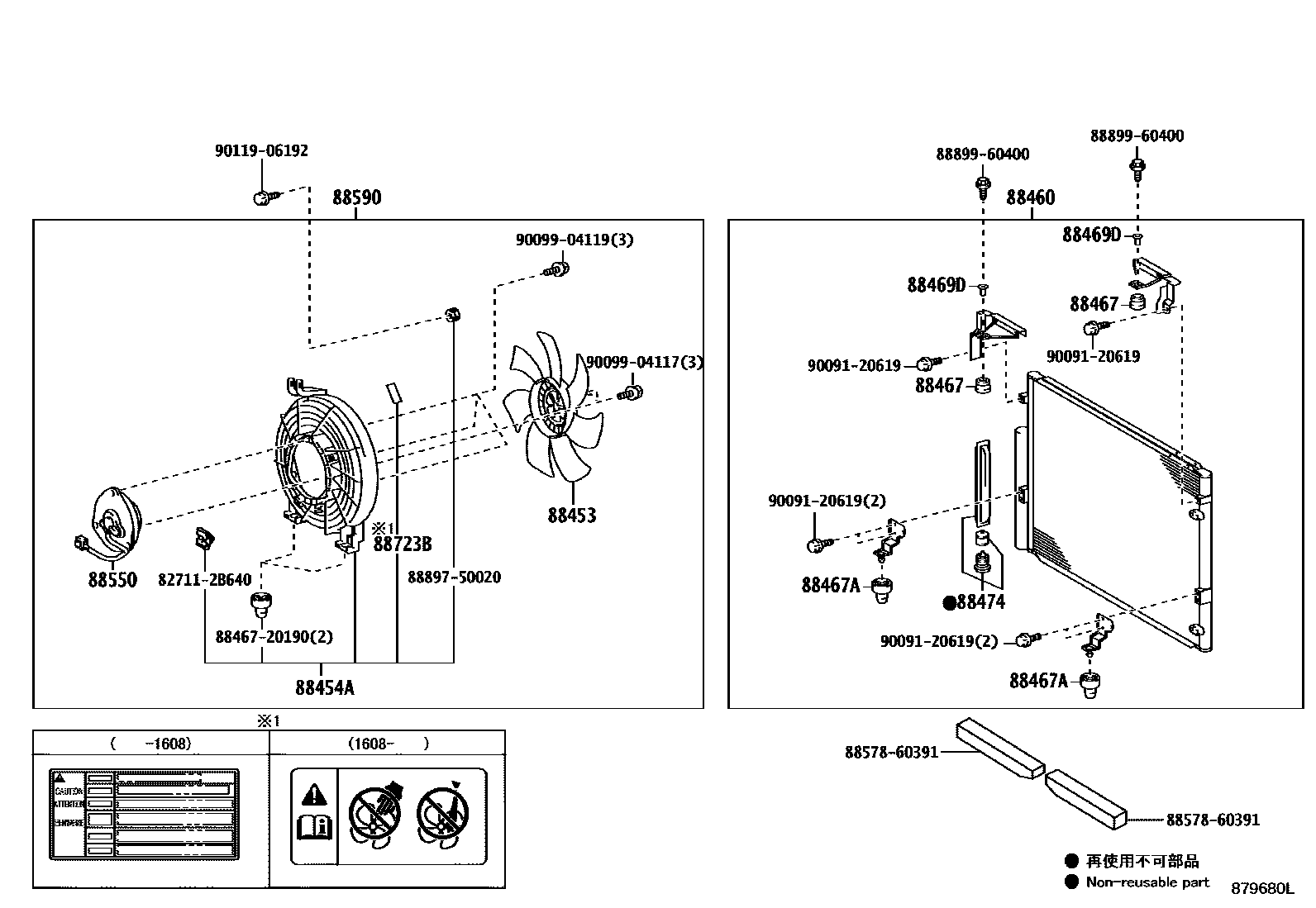

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSOR & FUN SHROUD 0002 1FRONT 0003 1FRONT 0004 1REAR,W(COOL BOX) 0005 1REAR,W/O(COOL BOX)

88453FAN, COOLING (FOR CONDENSER)

main88453-60020iURJ201200711-201509

88454ASHROUD, FAN

main88454-60050iURJ201200711-201209

main88454-60051iURJ201201209-201608

sub88454-60052

main88454-60052iURJ201,VDJ201201608

88460CONDENSER ASSY, COOLER

main88460-60400iURJ201,VDJ201200711-202006

main88460-60570iURJ201,VDJ201202006-202111

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180iURJ201200711-202008

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-60010iURJ201200711-202008

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iURJ201200711-202008

88474DRYER, COOLER

main88474-12030iURJ201200711-202111

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-60110iURJ201200711-201509

88590BLOWER ASSY, W/SHROUD

main88590-60080iURJ201200711-201208

sub88590-60081

main88590-60081iURJ201201209-201607

sub88590-60082

main88590-60082iURJ201,VDJ201201608

88723BLABEL, COOLER SERVICE CAUTION

main16793-28020iURJ201200711-201209

sub16793-36040

main16793-31070iURJ201,VDJ201201608

main16793-38010iURJ201201209-201608

sub16793-31070

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846720190CUSHION, COOLER CONDENSER, NO.1

main88467-20190

8857860391PAKING, COOLER AIR DUCT

main88578-60391

8889750020VALVE, COOLER MAGNET

main88897-50020

8889960400COVER, EVAPORATOR

main88899-60400

9009120619

main90091-20619

9009904117

main90099-04117

9009904119

main90099-04119

9011906192

main90119-06192

19 parts on this diagram · 5 diagrams in section
